Flexible LED Strip-3528 SMD Flexible LED Strip

Model Double row 3528 flexible led strip super brightness 240led/m TB14-240W35

(P/N: TB14-240W35)

Inquiry Now

Feature:

Super brightness, 240 pcs 3528 SMD LED as light source, Original Epistar chip from Taiwan;

Low brightness decay and high color consistency;

Double Row PCB, Minimal heat generation, width 14mm;

3M self-adhesive tape in the back, easy installation;

Slight voltage drop, perfect color uniform;

DC12V and DC24V, 19.2W/m, 96W/Roll;

Both IP20 and IP67 available, could be use indoor and outdoor.

Technical Parameters:

Parameter Description
Voltage (V) DC12V/ DC24V
Power (W) 19.2 W/m,96 W/roll
Available Color White Red Green Blue Yellow
Lumen/m 1680 504 780 206 336
LED Type 3528 SMD LED
LED Qty 240 led/m, 1200 led/roll
Chip Brand Epistar Chip from Taiwan
Viewing angle 120 degree
Cuttable Unit 25mm or 6 LED
Dimension 5000*14*02 mm
IP Rate IP20/IP67
Working Temperature -40°C~60°C
Storage Temperature -50°C~80°C
PCB Double Layer, Color-White
Span life 50,000h
Certification CE&ROHS
Part No. TB14-240W35 TB14-240R35 TB14-240G35 TB14-240B35 TB14-240Y35

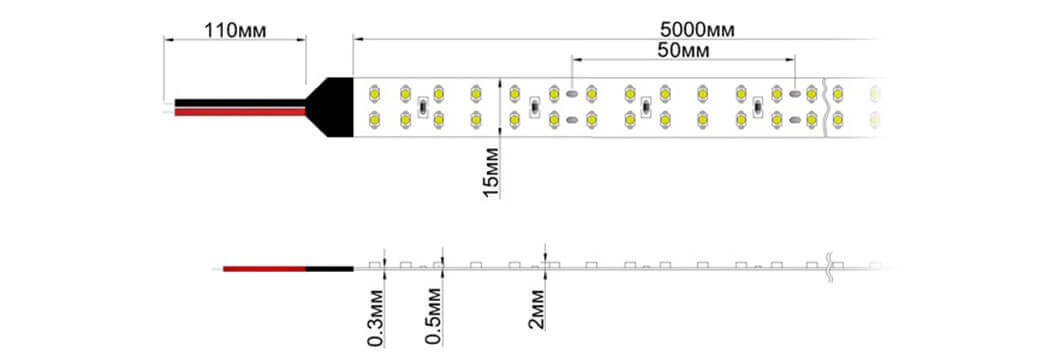

Dimension(mm):

Dimension

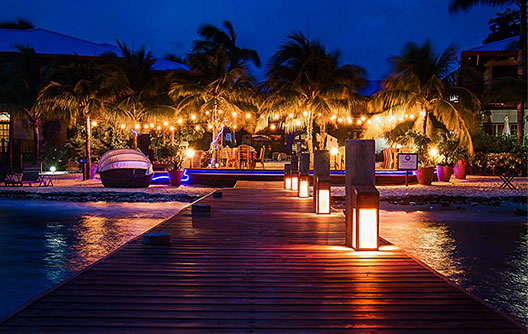

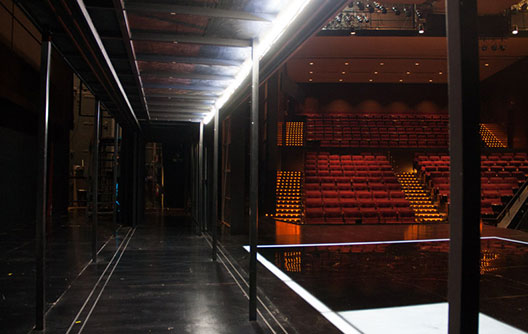

Application:

Cove lighting;

Architectural lights for canopy, corridor, window, archway;

Backlight or edge lighting for signage;

decoration for the hotel;

Path and contour marking;

Decorative lights for holiday, event, show, exhibition.
