Flexible LED Strip-5050 SMD Flexible LED Strip

Model Colorful 5050 RGB flexible led strip light 300led 16.4ft TB10-60RGB50

(P/N: TB10-60RGB50)

Feature:

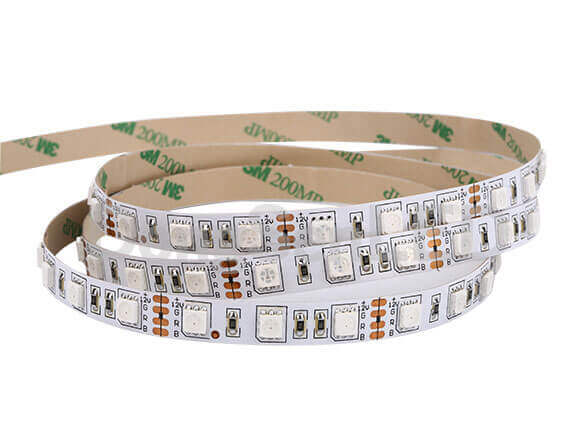

Adopt high quality 5050 SMD RGB LED, 3 chip in 1 led, 60led/m, 300 led per reel;

It could creat various color effects, such as loop, jump, ect;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

both nonwaterproof and waterproof available;

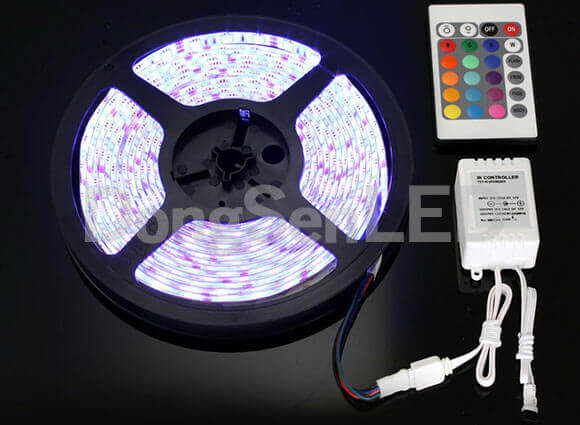

Controller: IR/RF RGB LED Controller;

The led quantity and length could be customized.

Technical Parameters:

Parameter	Description
Part No.	TB10-60RGB50
Voltage (V)	DC12V/ DC24V
Power (W/pc)	14.4 W/m, 72 W/rol
Available Color	RGB
Wave length (nm)	Red(620-625)	Green(525-530)	Blue(465-470)

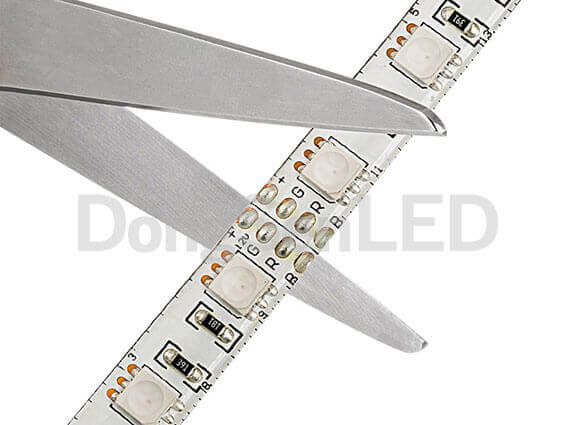

Cuttable Unit	50mm or 3 LED
LED Type	5050 SMD LED
LED Qty	60 led/m, 300 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
IP Rate	IP20/IP65/IP68
Dimension	50001002 mm
Span life	50,000h
Certification	CE&ROHS

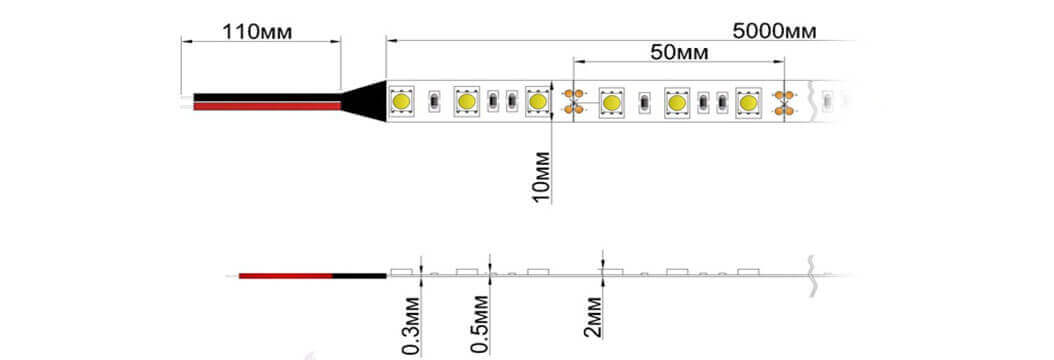

Dimension(mm):

Dimension

Application:

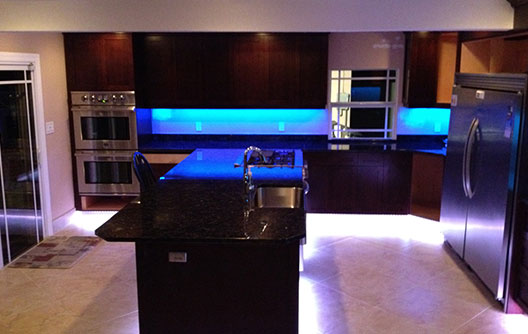

Under cabinet LED lighting;

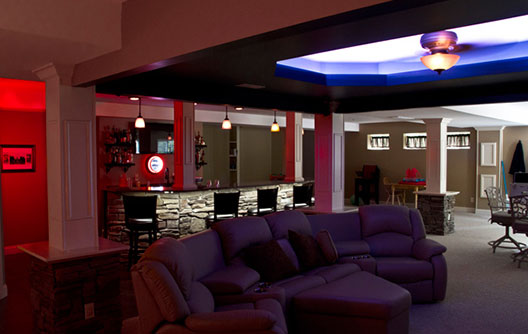

Cove LED lighting;

LED task/back lighting;

Retail/sign LED lighting;

Display case LED lighting.
