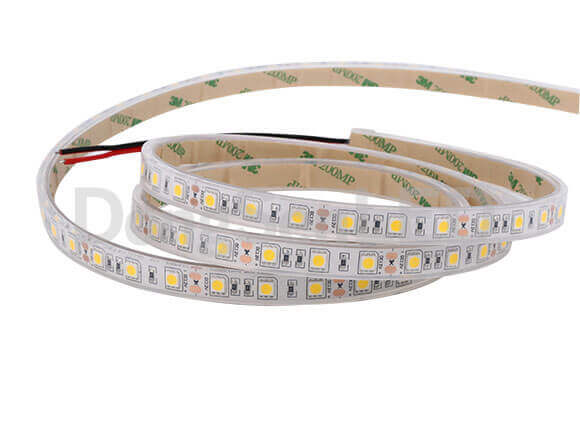

Flexible LED Strip-5050 SMD Flexible LED Strip

Model High CRI 5050 flexible led strip IP68 12vDC TF10-60WP8

(P/N: TF10-60WP8)

Inquiry Now

Feature:

Adopt high quality 5050 SMD LED, CRI>80, 18-20LM/LED, 60LED/m;

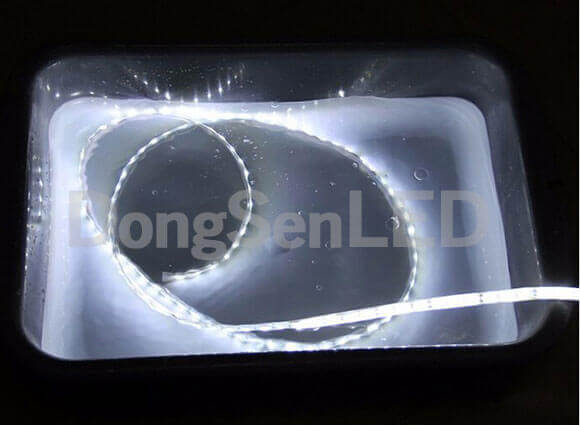

The strip are put into the Silicon tube and cover by silicon gel,  that offers double layer protection guaranteeing maximum waterproof (IP 68) levels.;

High brightness and color consistency, strictly one bin led for one order;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

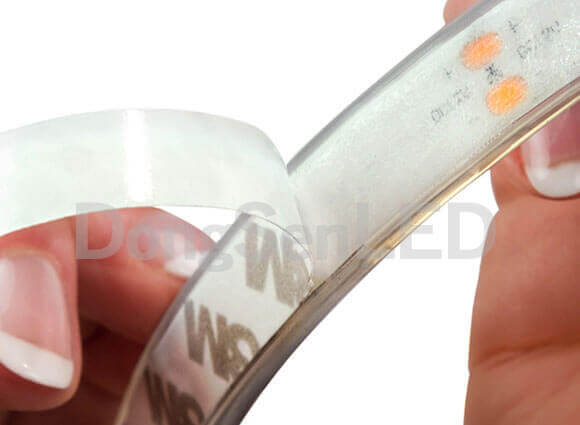

Easy install, with transparent silicon clips;

The led quantity and length could be customized.

Technical Parameters:

Parameter Description
Voltage (V) DC12V/ DC24V
Power (W) 14.4 W/m,72 W/roll
Available Color White Red Green Blue Yellow
Lumen/m 1080 360 780 210 320
LED Type 5050 SMD LED
LED Qty 60 led/m, 300 led/roll
Chip Brand Epistar Chip from Taiwan
Viewing angle 120 degree

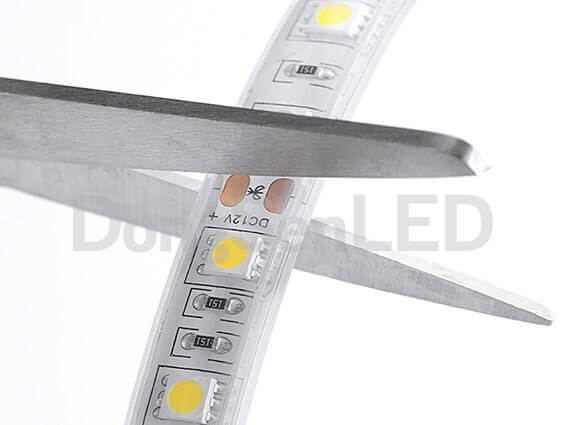

Cuttable Unit 50mm or 3 LED
Dimension 5000*12*04 mm
IP Rate IP68
Working Temperature -40°C~60°C
Storage Temperature -50°C~80°C
PCB Double Layer, Color-White
Span life 50,000h
Certification CE&ROHS
Part No. TF10-60W50P8 TF10-60R50P8 TF10-60G50P8 TF10-60B50P8 TF10-60Y50P8

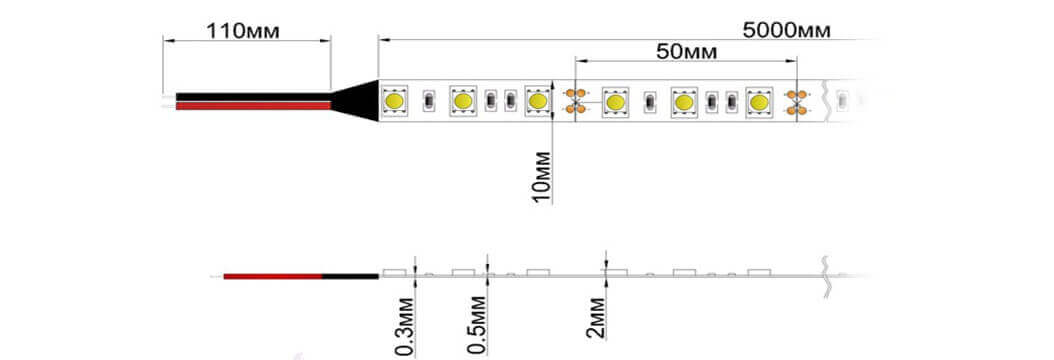

Dimension(mm):

Dimension

Application:

Under water decoration, such as swim pool, fish tank, boat, ect;

Cove lighting;

Architectural lighting for canopy, corridor, window, archway;

Street decoration lighting;

Path or contour marking 5050 led strip.
