Flexible LED Strip-5050 SMD Flexible LED Strip

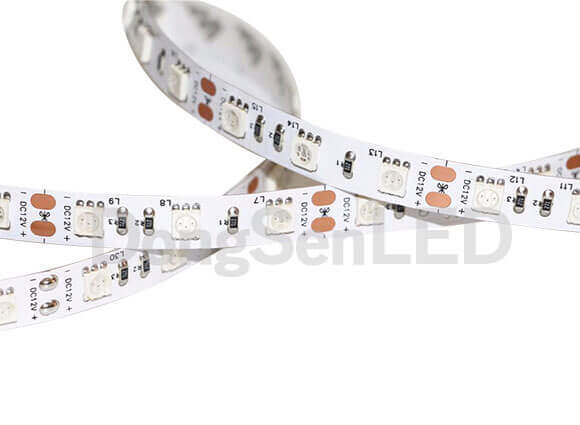

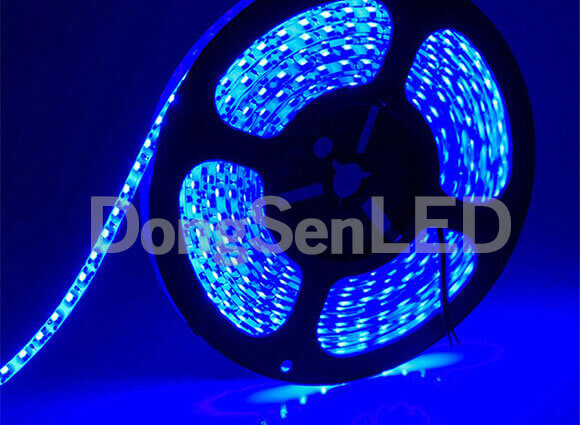

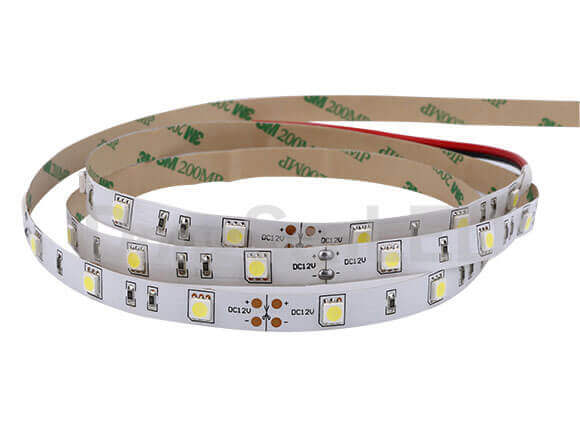

Model Single color 5050 flexible led strip light 150led TB10-30W50

(P/N: TB10-30W50)

Feature:

Adopt high quality 5050 SMD LED, CRI>80, 18-20LM/LED, Original Epistar chip from Taiwan;

High brightness and color consistency, strictly one bin led for one order;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

Protected against humidity, both waterproof and nonwaterproof version available;

IP20: Nonwaterproof; IP65: Drop silicon gel or PU glue; IP68: Inject the silicon gel inside the Full silicon tube;

The led quantity and length could be customized.

Technical Parameters:

Parameter	Description
Voltage (V)	DC12V/ DC24V
Power (W)	7.2 W/m,36 W/roll
Available Color	White	Red	Green	Blue	Yellow
Lumen/m	540	180	390	105	160
LED Type	5050 SMD LED
LED Qty	30 led/m, 150 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree
Cuttable Unit	100mm or 3 LED
Dimension	50001004 mm
IP Rate	IP20/IP65/IP67/IP68
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Part No.	TF10-30W50	TF10-30R50	TF10-30G50	TF10-30B50	TF10-30Y50

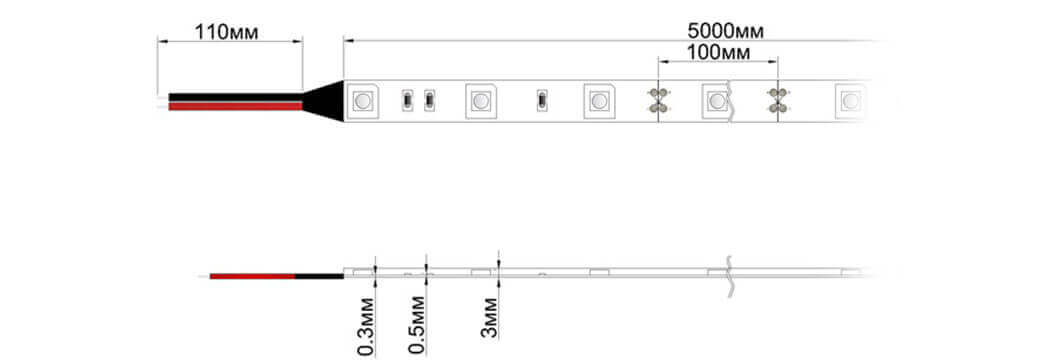

Dimension:

Dimension

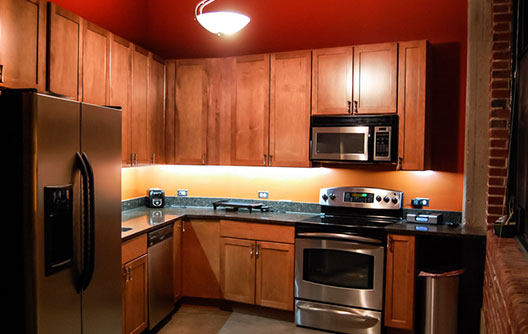

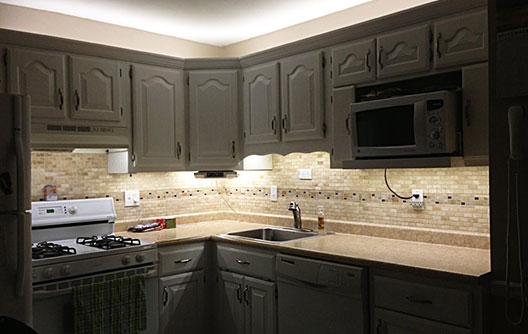

Application:

Decorative lighting for festivals, events, shows, exhibitions;

Architectural lights for canopy, corridor, window, archway;

Backlight or edge lighting for signage;

Path or contour marking 5050 led strip;

Channel letter lighting.
