Flexible LED Strip-5050 SMD Flexible LED Strip

Model Warm white 5050 flexible led strip decoration light 60led/m TB10-60W50

(P/N: TB10-60W50)

Inquiry Now

Feature:

Adopt high quality 5050 SMD LED, CRI>80, 18-20LM/LED, 60LED/m;

DC12V and DC24V, 14.4Watt/m;

High brightness and color consistency, strictly one bin led for one order;

Double Layer PCB, white color, Minimal heat generation;

Slight voltage drop, perfect light uniform;

Both waterproof and nonwaterproof version, IP2-/IP65/IP58 available;

The led chip quantity and length could be customized.

CE&ROHS certificated

Technical Parameters:

Parameter Description
Voltage (V) DC12V/ DC24V
Power (W) 14.4 W/m,72 W/roll
Available Color White Red Green Blue Yellow
Lumen/m 1080 360 780 210 320
LED Type 5050 SMD LED
LED Qty 60 led/m, 300 led/roll
Chip Brand Epistar Chip from Taiwan
Viewing angle 120 degree

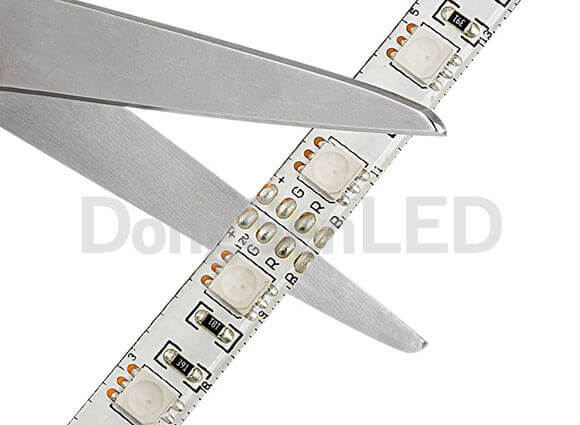

Cuttable Unit 50mm or 3 LED
Dimension 5000*10*02 mm
IP Rate IP20/IP65/IP68
Working Temperature -40°C~60°C
Storage Temperature -50°C~80°C
PCB Double Layer, Color-White
Span life 50,000h
Certification CE&ROHS
Part No. TB10-60W50 TB10-60R50 TB10-60G50 TB10-60B50 TB10-60Y50

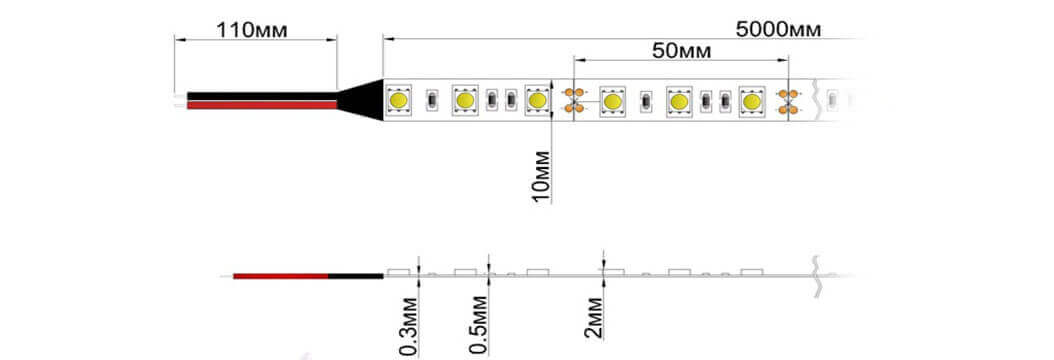

Dimension(mm):

Dimension

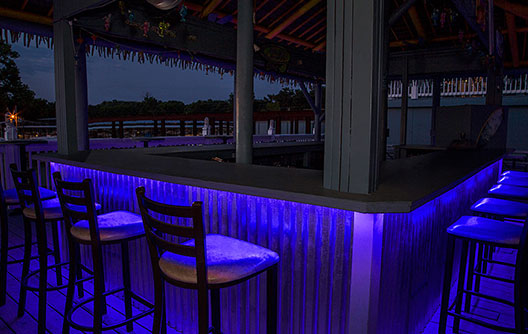

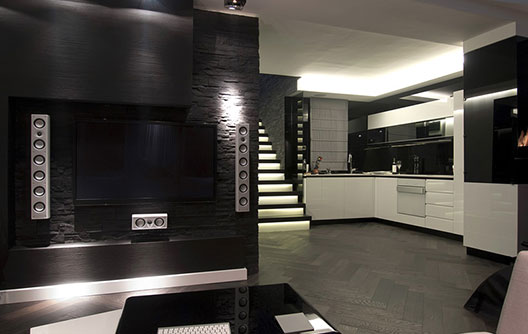

Application:

Cove lighting;

Under cabinet lighting;

Architectural lighting for canopy, corridor, window, archway;

Backlight or edge light for signage;

Path or contour marking 5050 led strip.
