Flexible LED Strip-CCT Adjustable Flexible Led Strip
Model 5 Chip in 1 5050 Flexible RGB CCT adjustable LED Strips RGB+WW+PW TB12-60RGBCCT50
(P/N: TB12-60RGBCCT50)
Inquiry NowFeature:
Adopt super brightness 5050 SMD LED as light sources, Original Epistar chip from Taiwan.
CCT adjustable: RGB+Warm White+Cool white.
5 chip in 1 LED, more stable quality and unique light effects.
FPCB, double layer, Low voltage drop and perfect heat dissipation.

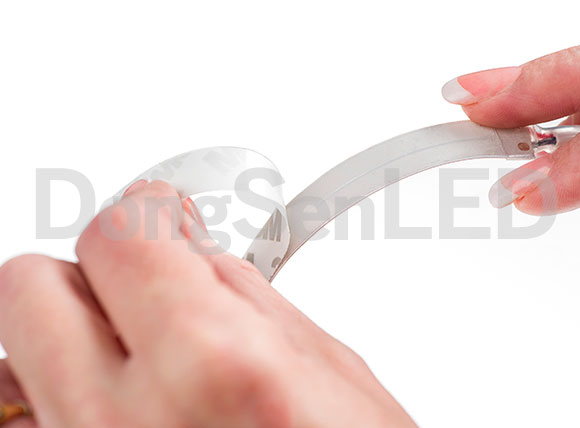

3M self-adhesive tape in the back, easy installation.
Dimmable.
CE&ROHS Certificated, 3 years warranty.
Controller: IR or RF remote RGBW LED Controller.
Technical Parameters:
| Parameter | Description |
|---|---|
| Voltage (V) | DC12V/ DC24V |
| Max Power (W) | 24 W/m, 120 W/roll |
| Available Color | RGB+Warm White+Pure White |
| Color Temperature | Red Green Blue WW W |
| Wave length (nm/K) | 620-625 525-530 465-470 2700-3000 6000-6500 |
| LED Type | RGBWW 5-in-1 5050 SMD LED |
| LED Qty | 60 led/m, 300 led/roll |
| Chip Brand | Epistar Chip from Taiwan |
| Viewing angle | 120 degree |
| Cuttable Unit | 50mm or 3 LED |
| Dimension | 5000*12*03 mm |
| IP Rate | IP20/IP65/IP67/IP68 |
| Working Temperature | -25°C~60°C |
| Storage Temperature | -50°C~80°C |
| PCB | FPCB, Double Layer, Color-White |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Warranty | 3 Years |
| Part No. | TB12-60RGBCCT50 |

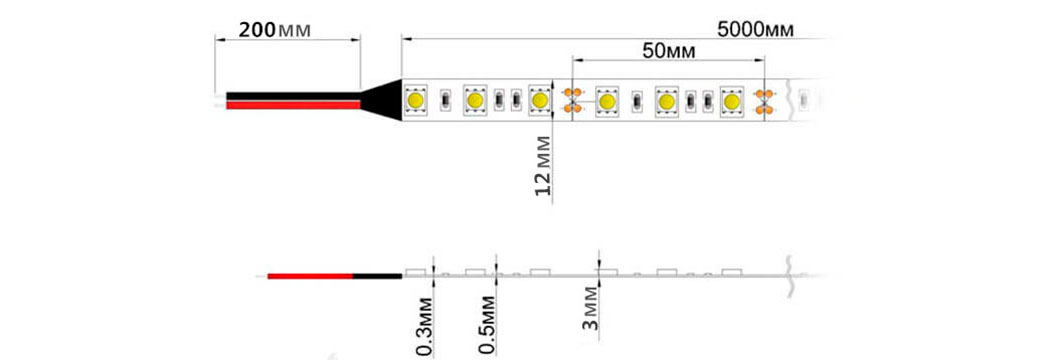

Dimension(mm):

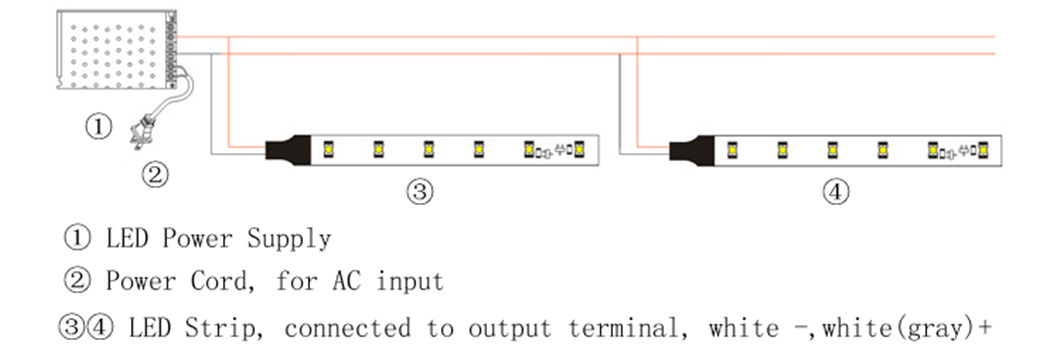

Connection Diagramm:

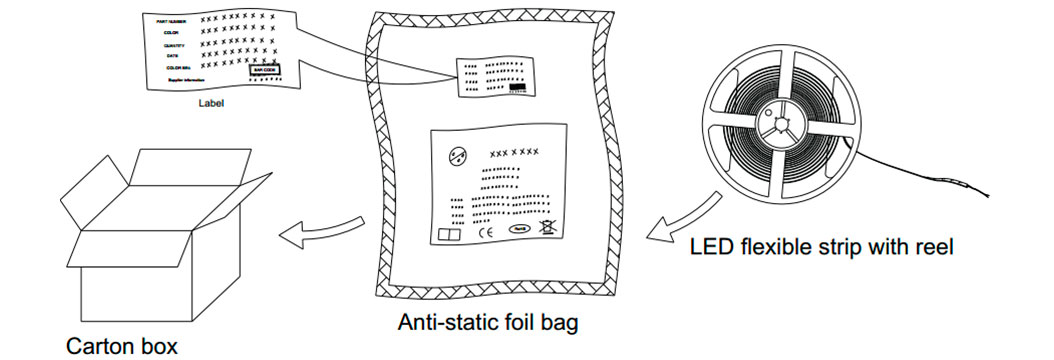

Packing:

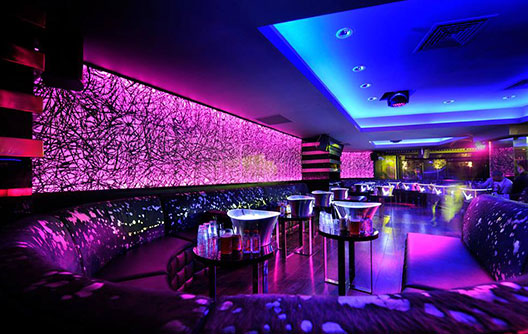

Application:
Cove lighting;
Architectural lights for canopy, corridor, window, archway;
Led ceiling lighting;
Decoration for the hotel, ktv, Bars;
LED Cabinet lighting.
