Home > Products > Flexible LED Strip > CCT Adjustable Flexible Led Strip > CCT Adjustable 5050 Flexible Led Strips 60led/m WW+CW TB10-60DC50
Flexible LED Strip-CCT Adjustable Flexible Led Strip

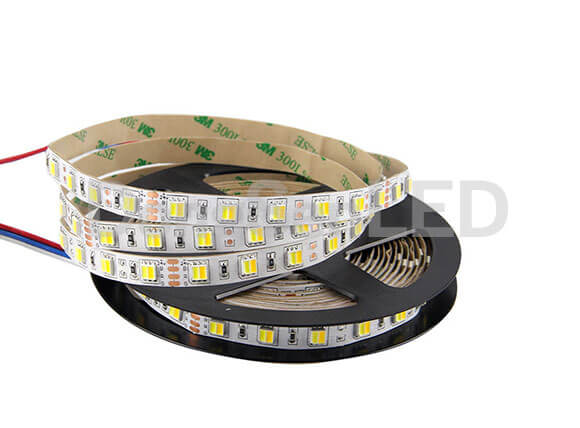

Model CCT Adjustable 5050 Flexible Led Strips 60led/m WW+CW TB10-60DC50
(P/N: TB10-60DC50)
Inquiry NowFeature:
High Brightness, Adopt Super bright SMD5050 LED—2 chip in 1 LED as light source.
Available color: WW+CW, CCT adjustable.
Low brightness decay and high color consistency.
Double Layer PCB, white color.
Every 3 led as a unit could be cuttable.
3M self-adhesive tape in the back, easy installation.
IP Rate: IP20/IP65/IP67/IP68.
CE Certificated and RoHS compliant.
Technical Parameters:
| Parameter | Description | |
|---|---|---|
| Voltage (V) | DC12V/ DC24V | |
| Power (W) | 14.4 W/m, 72 W/roll | |
| Available Color | Warm White(2700-3000K)+Pure White(6000-6500K) | |
| Lumen/m | 1080lm | |
| Color Rendering Index | >80Ra | |
| LED Type | 2 Chip in 1 5050 SMD led | |
| LED Qty | 60 led/m, 300 led/roll | |
| Chip Brand | Epistar Chip from Taiwan | |
| Viewing angle | 120 degree | |
| Cuttable Unit | 50mm or 3 LED | |
| Dimension | 5000*10*02 mm | |
| IP Rate | IP20/ IP65/IP67/IP68 | |
| Working Temperature | -40°C~60°C | |
| Storage Temperature | -50°C~80°C | |
| PCB | Double Layer, Color-White | |
| Span life | 50,000h | |
| Certification | CE&ROHS | |
| Warranty | 3 Years | |
| Part No. | TB10-60DC50 | |

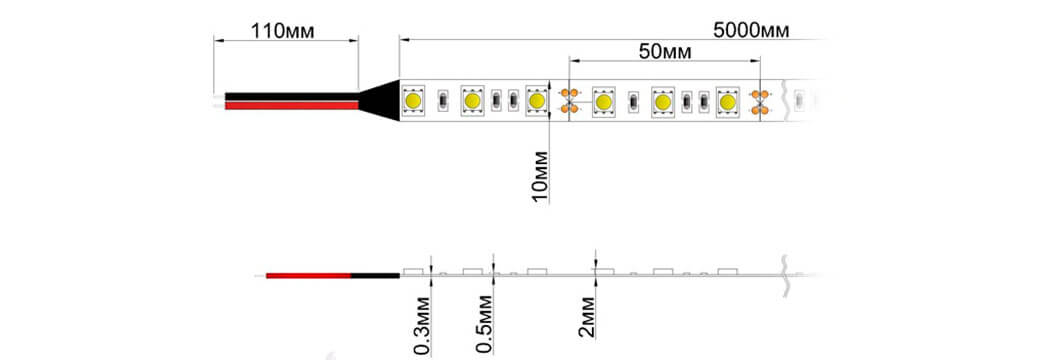

Dimension(mm):

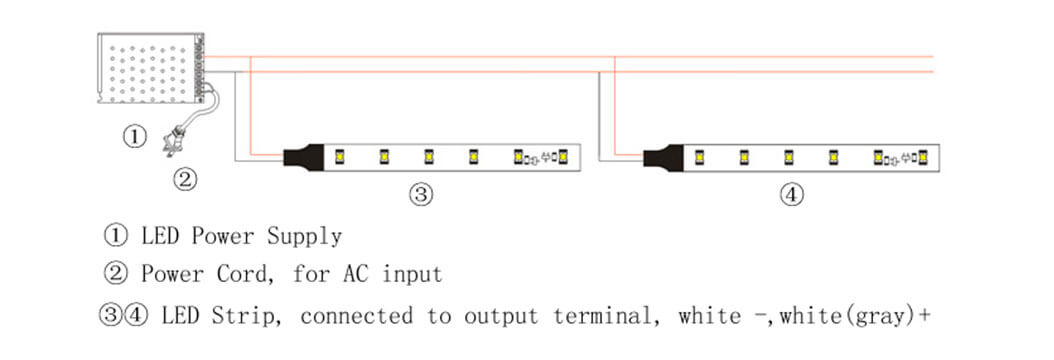

Connection Diagramm:

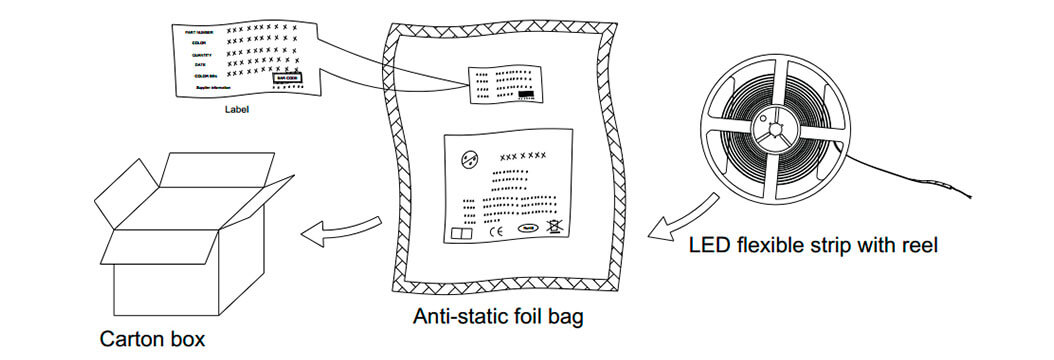

Packing:

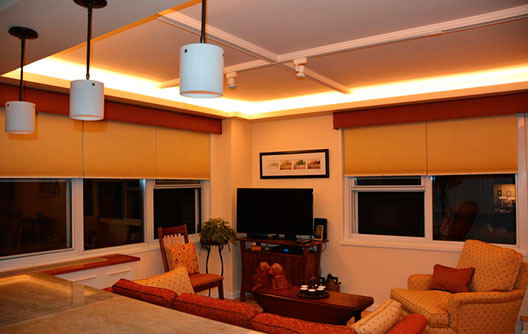

Application:
Cove lighting;
Architectural lights for canopy, corridor, window, archway;
Led ceiling lighting;
Decoration for the hotel, ktv, Bars;
LED Cabinet lighting.
