Flexible LED Strip-RGBW Flexible LED Strip

Model Integrated RGBW flexible led strip 4 chip in 1 led 19.2w/m DC24v TB12-60RGBW50

(P/N: TB12-60RGBW50)

Inquiry Now

Feature:

Adopt super brightness 5050 SMD LED as light sources, Original Epistar chip from Taiwan;

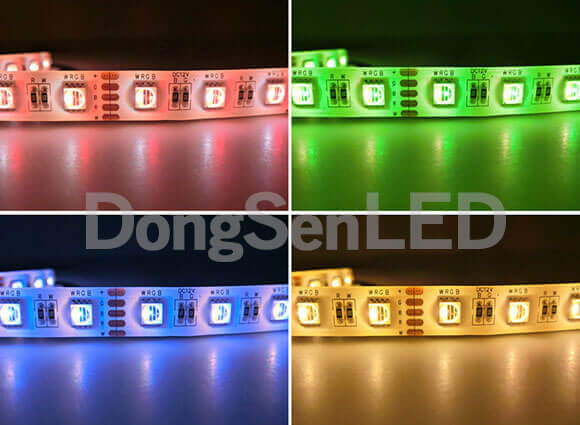

Color changing: RGB+Warm White/Nature white/Cool white;

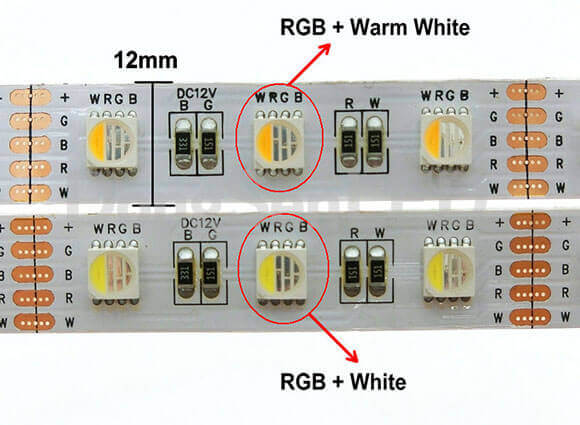

4 chip in 1 LED, more stable quality and unique light effects;

FPCB, double layel, Low voltage drop and perfect heat dissipation;

3M self-adhesive tape in the back, easy installation;

Dimmable;

CE&ROHS Certificated, 3 years warranty;

Controller: IR or RF remote RGBW LED Controller.

Technical Parameters:

Parameter Description
Part No. TB12-60RGBW50
Voltage (V) DC12V/ DC24V
Power (W/pc) 19.2 W/m, 96 W/roll
Available Color RGB+Warm White/Cool White
Color Temperature Wave Length(nm/k)  Red         Green        Blue                WW               W
620-625    525-530    465-470    2700-3000    6000-6500

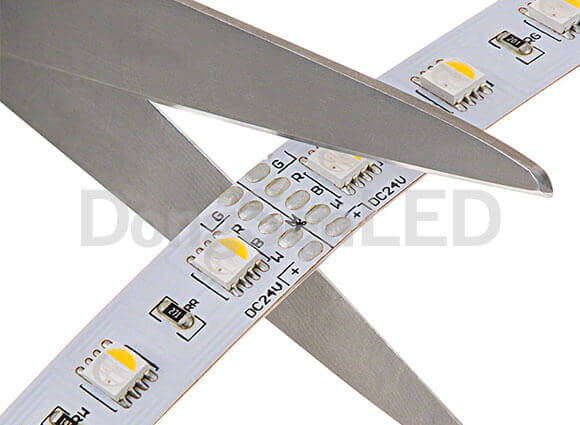

Cuttable Unit 50mm or 3 LED
LED Type RGBW 4-in-1 5050 SMD LED
LED Qty 60 led/m, 300 led/roll
Chip Brand Epistar Chip from Taiwan
Viewing angle 120 degree
Working Temperature -25°C~60°C
Storage Temperature -50°C~80°C
PCB FPCB, Double Layer, Color-White
IP Rate IP20/IP65/IP67
Dimension 5000*12*02 mm
Span life 50,000h
Certification CE&ROHS
Warranty 3 Years

Dimension(mm):

Dimension

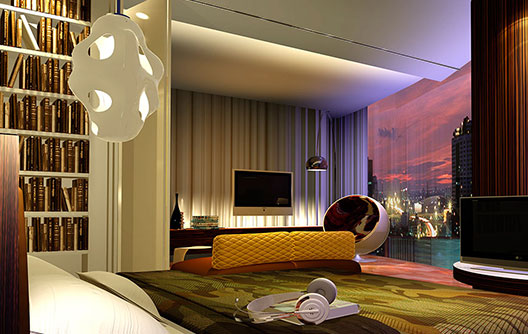

Application:

Cove lighting;

Decoration of the furniture;

Decoration for the ceiling lighting;

Backlingting of the channel letter and lighting box;

Decoration for the events, show, exhibition, ect.
