Flexible LED Strip-RGBW Flexible LED Strip
Model RGBW flexible led strip 30 RGB+30 white led TB10-60RGBW50
(P/N: TB10-60RGBW50)
Inquiry NowFeature:

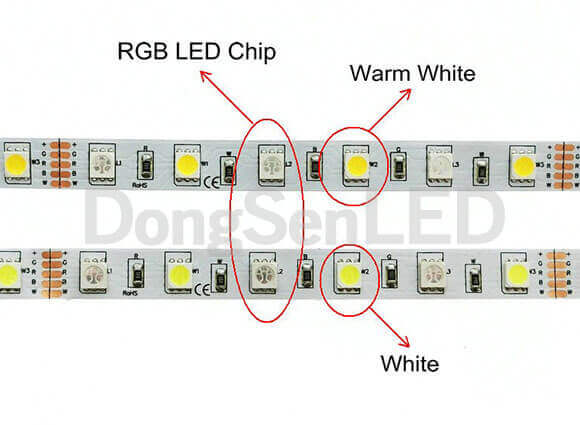

RGB (3 colours on one chip) + white. Pastel color shades and real white possible;
High flexibility – adaptable to round shapes;
Adhesive 3M tape, easy installation;
Dimmable;
Automatic color change, controllable RGBW Touching controller;
Non waterproof and waterproof version available;
CE&ROHS approved.
Technical Parameters:
| Parameter | Description |
|---|---|
| Part No. | TB10-60RGBW50 |
| Voltage (V) | DC12V/ DC24V |
| Power (W/pc) | 14.4 W/m, 72 W/roll |
| Available Color | RGB+Warm White/Cool White |
| Color Temperature Wave Length(nm/k) | Red Green Blue WW W |
| 620-625 525-530 465-470 2700-3000 6000-6500 | |
| Cuttable Unit | 50mm or 3 LED |
| LED Type | 5050 RGB+ W/WW LED |
| LED Qty | 60 led/m, 300 led/roll |
| Chip Brand | Epistar Chip from Taiwan |
| Viewing angle | 120 degree |
| Working Temperature | -25°C~60°C |
| Storage Temperature | -50°C~80°C |
| PCB | FPCB, Double Layer, Color-White |
| IP Rate | IP20/IP65/IP67 |
| Dimension | 5000*10*02 mm |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Warranty | 3 Years |

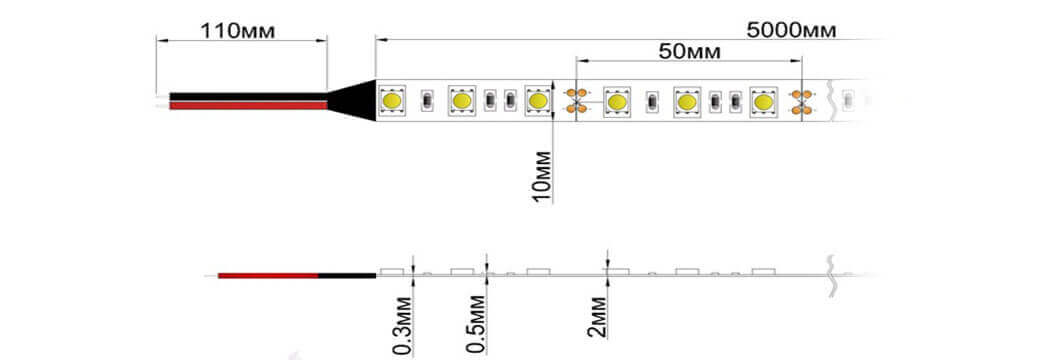

Dimension(mm):
Application:
Illumination of complex structures;
Marking paths, stairs, etc;

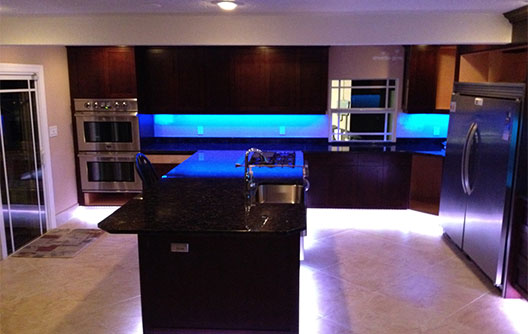

Furniture lighting;
Backlighting of the LED Signage;
Entertainment, shop design.
Architectural lighting.
