Home > Products > Flexible LED Strip > S Shape Flexible LED Strip > Bendable s shape flexible led strip 2835 led TS06-60W28
Flexible LED Strip-S Shape Flexible LED Strip
Model Bendable s shape flexible led strip 2835 led TS06-60W28
(P/N: TS06-60W28)
Inquiry NowFeature:
Top 2835 SMD LED mounted, 22-24lm/led;
S shape PCB, can be bend in any direction;
3M tape adhesive, easy installation;
Best for around 3cm mini size channel letter;
3 MacAdam ellipses each color bin for better color uniformity;
Technical Parameters:
| Parameter | Description | ||||||
|---|---|---|---|---|---|---|---|
| Voltage (V) | DC12V | ||||||
| Power (W) | 7.2 W/m, 36 W/roll | ||||||
| Available Color | Warm White | Pure White | Red | Green | Blue | Yellow | |
| Lumen/Wave Length | 540-660 lm/m | 540-660 lm/m | 620-625nm | 520-525nm | 465-470nm | 590-595nm | |
| LED Type | 2835 SMD LED | ||||||
| LED Qty | 60 led/m, 300 led/roll | ||||||
| Chip Brand | Epistar Chip from Taiwan | ||||||
| Viewing angle | 120 degree | ||||||

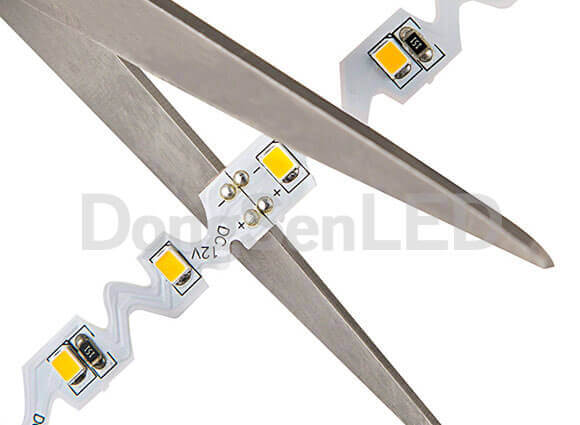

| Cuttable Unit | 50mm or 3 LED | ||||||
| Max Series connection | 2000*06 mm | ||||||
| Package | 5 m/roll | ||||||
| Working Temperature | -25°C~60°C | ||||||
| IP | IP20 | ||||||
| PCB | S shape, Double Layer, Color-White | ||||||
| Span life | 50,000h | ||||||
| Certification | CE&ROHS | ||||||
| Part No. | TS06-60WW28 | TS06-60W28 | TS06-60R28 | TS06-60G28 | TS06-60B28 | TS06-60Y28 | |

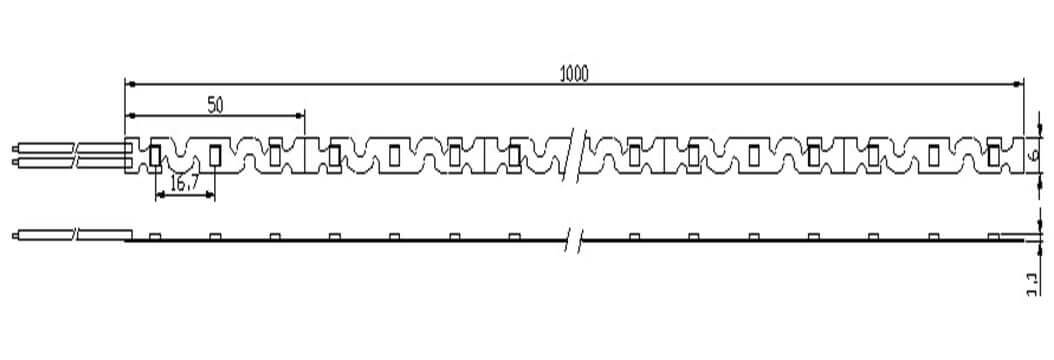

Dimension(mm):

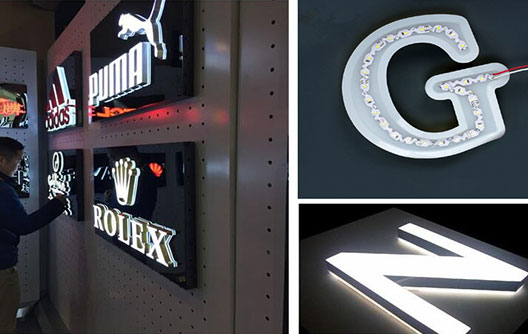

Application:
Aound 3 cm depth mini channel letter;
3D bending application.
