Flexible LED Strip-S Shape Flexible LED Strip

Model Shapeable 2835 SMD Flexible LED Tape Light for Mini Letter

(P/N: TS06-72W28)

Inquiry Now

Feature:

Top 2835 SMD LED mounted, 22-24lm/led

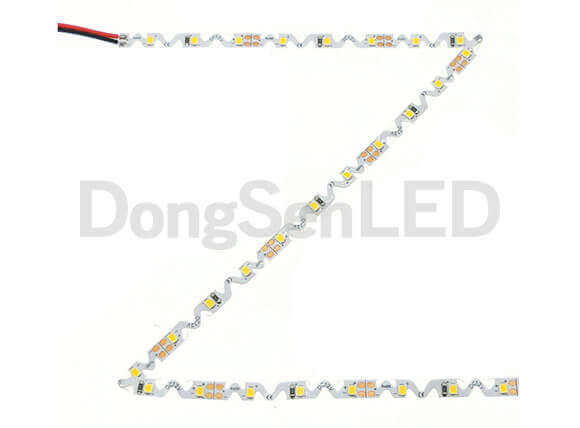

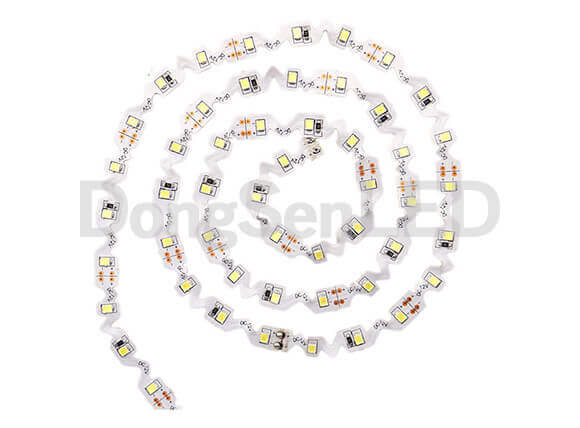

S shape PCB, can be bend in any direction

High color consisitency, strictly one bin led for each order

3M tape adhesive, easy installation

Best for around 3cm mini size channel letter

Technical Parameters:

Parameter Description
Voltage (V) DC12V
Power (W) 8.64 W/m, 43.2 W/roll
Available Color Warm White Pure White Red Green Blue Yellow
Lumen/m 648-792 lm/m 648-792 lm/m 620-625nm 520-525nm 465-470nm 590-595nm
LED Type 2835 SMD LED
LED Qty 72 led/m, 360 led/roll
Chip Brand Epistar Chip from Taiwan
Viewing angle 120 degree

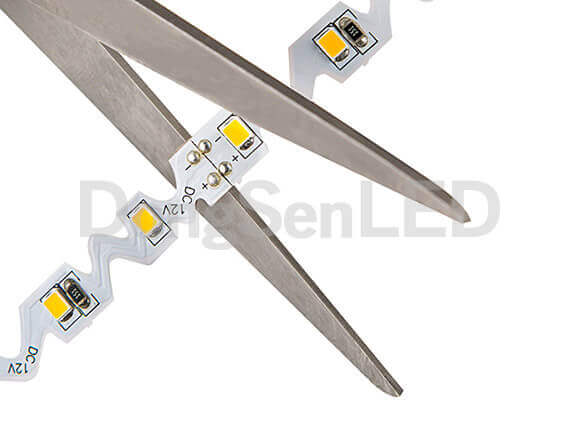

Cuttable Unit 41.6mm or 3 LED
Max Series connection 2000*06 mm
IP Rate IP20
Working Temperature -25°C~60°C
Storage Temperature -50°C~80°C
PCB S shape, Double Layer, Color-White
Span life 50,000h
Certification CE&ROHS
Part No. TS06-72W28 TS06-72W28 TS06-72R28 TS06-72G28 TS06-72B28 TS06-72Y28

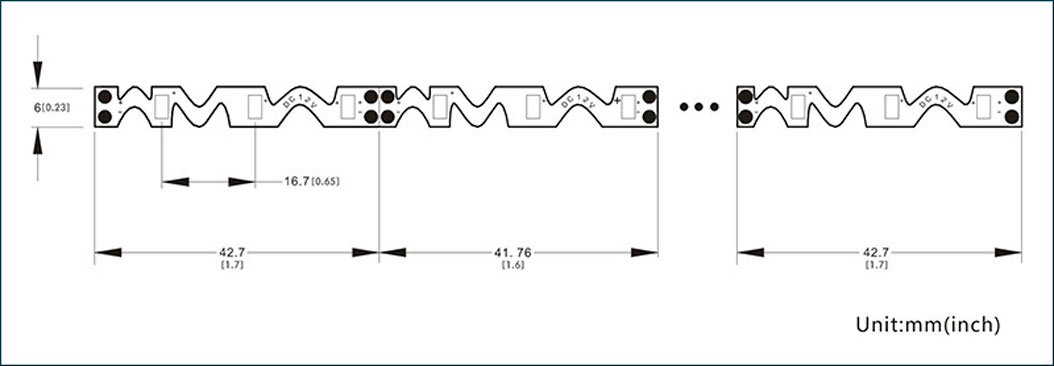

Dimension(mm):

Dimension

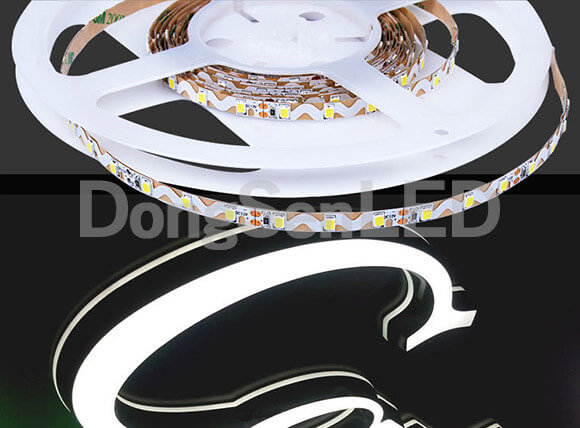

Application:

Aound 3 cm depth mini channel letter;

3D bending application.
