LED Controller&LED Dimmer-LED Controller

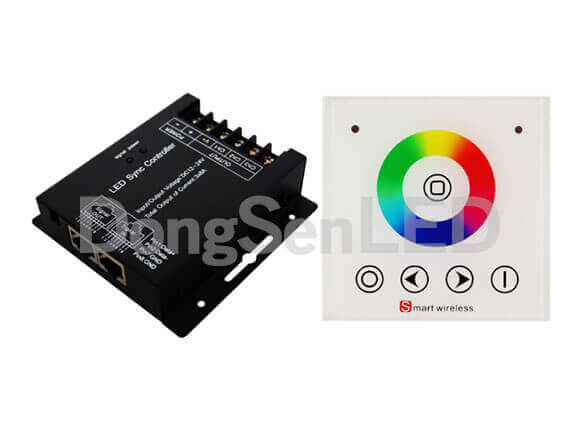

Model Wall panel touch led controller DS-SZ600-WP86-RGB

(P/N: DS-SZ600-WP86-RGB)

Inquiry Now

Feature:

Wall Panel Touch LED Controller (DS-SZ600-WP86-RGB) adopts the most advanced PWM (Pulse Width Modulation) digital control technology, it is used for controlling constant voltage LED RGB lamps;

For instance, point source of light, flexible light strip, led modules, led strings and so on;

It belongs to low-voltage DC power input and output with four interfaces, including + V is extremely common interfaces, the other three for the RGB control interface;

Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through full-touch wall panel remote control;

In addition, It is convenient to use RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips. In theory, they can be connected numerous.

Technical Parameters:

Controller:

Parameter Description
Working temperature -20-60℃
Static power consumption < 1W
Grayscale 256 levels
External dimension L91*W88*H24 mm
Net weight 280g
Output 3 channels
Mode 18
PWM frequency 433.92Mhz
Output power 12V:<288W, 24V:<576W
Supply voltage DC12V-24V
Connecting mode Common anode
Speed stage 100 grade
Packing size L102*W102*H66 mm
Gross weight 300g
Max. Output current 8A*3CH
RF distance ≤20m
Memory function support

Remote control:

Parameter Description
Ambient temperature 0-45℃
Standby power 0.2W
Net weight 130g
Dimension 86*86*34mm
Structure 86-type European standard
Working voltage AC90-265V(50/60Hz)
Working power 2W
RF frequency 433.92MHz
RF distance ≤20m

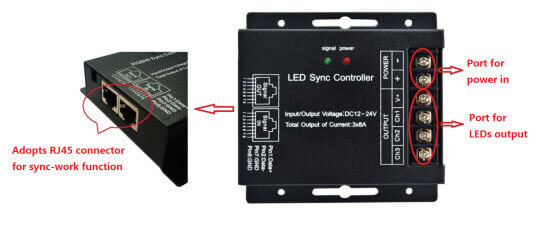

Interface Specifications

Interface Specifications

RGB Connection:V+→COM、CH1→R、CH2→G、CH3→B;

Interface Specifications

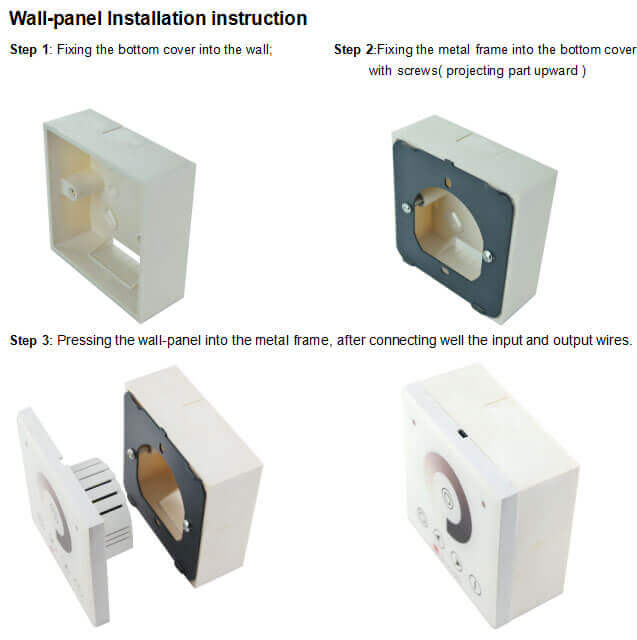

Direction for use

Connect the load wire at first, followed by the power wire; Please ensure short circuit can not occur between wires before turning on the power;

Adopts RF full touch wall-panel remote control, with one color ring and 5 function buttons;

The signal light flash-- represents the signal has been sent well.

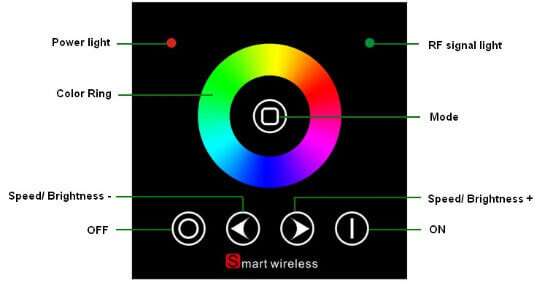

The function of buttons are shown as below:

Interface Specifications


The function of each button as below:

Name of key Instruction Remarks
ON/OFF ON or OFF in any time
Mode The mode will move to next, when touch the key each time 9 modes in total.
Speed/Brightness + The Speed/Brightness will +1, when  touch the key each time Speed for dynamic modes, Brightness for static modes.
Speed/Brightness - The Speed/Brightness will -1, when touch the key each time Speed for dynamic modes, Brightness for static modes.
Color Ring Touch any color which is wanted

10 modes in total as below:

No Patterns Remarks
1 Static white Brightness is adjustable
2 White flash Speed is adjustable, brightness is unadjustable
3 White breath
4 Three-color jump changing
5 Seven-color jump changing
6 Three-color gradient changing
7 Seven-color gradient changing
8 R/G cross fade
9 R/B cross fade
10 G/B cross fade

Tips: Receiver can be controlled by any one the same remote as factory default; the wall-panel remote control delivered with unique RF code as factory default; if unique-control is needed, please matching the code before installation and using.


Matching code operation

If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:

Step 1: Pressing key "mode" and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.

Step 2: Continuously to press the key "ON" for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.

Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.

If not, please re-operate from step 1 to 2.

Interface Specifications

Typical Applications

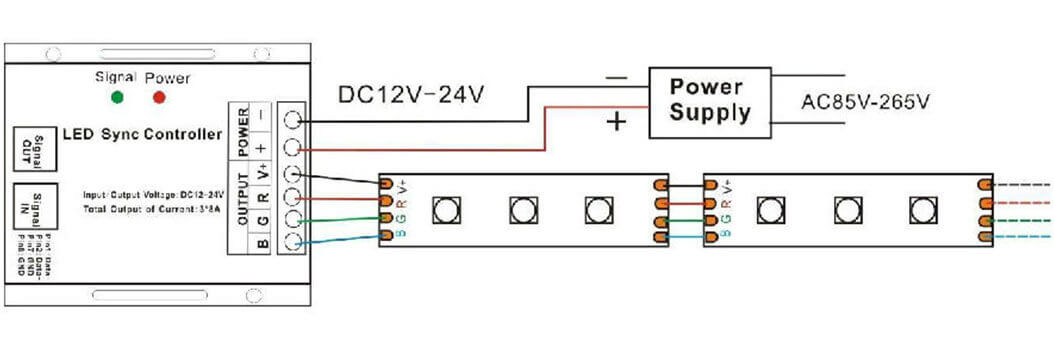

Application Circuit 1:

Application

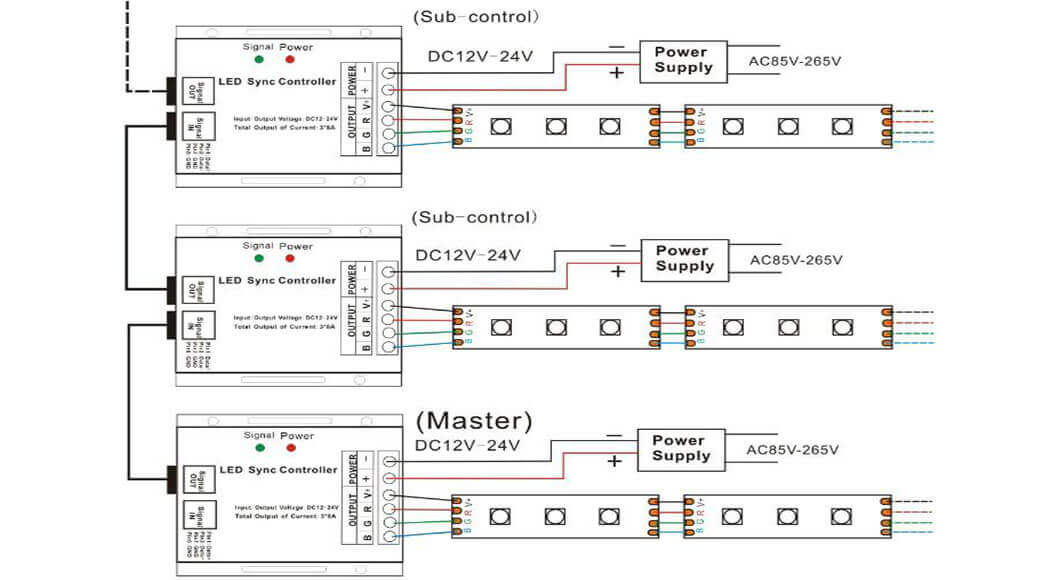

Application Circuit 2: (Synchronization function with network Line(RJ45) )

Application
