LED Controller&LED Dimmer-LED Controller

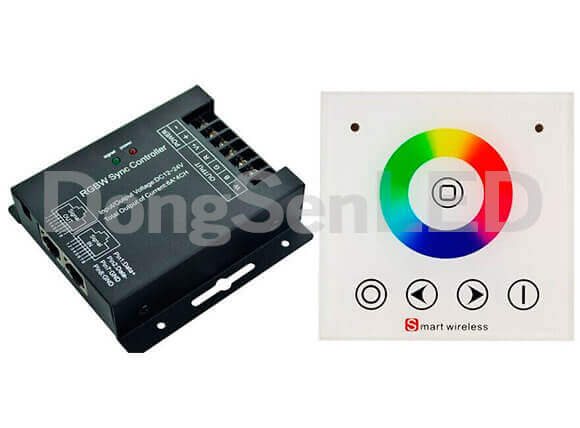

Model Wireless RGBW LED Touch Controller DS-SZ600-WP86-RGBW

(P/N: DS-SZ600-WP86-RGBW)

Inquiry Now

Feature:

1. Designed for RGBW constant voltage LED lights, Working voltage DC12-24V.

2. Four channels output, Max. load current: 4CH*6A; Max. load power: 288W/12V; 576W/24V.

3. Adopts full-touch wall panel remote control with fashion appearance, no need line-of-sight. Control range up to 20 meters. The working voltage of wall-panel is AC90-265V.

4. Structure/dimension/installation of the wall panel according to the 86-type European standards.

5. Memory function, each time power-on reserve the mode which stop in the last power-down.

6. The brightness of static color is adjustable, 256 levels in total; the speed of dynamic changes is adjustable, 100 levels in total.

7. Long-press the brightness and speed key can get the fast adjustment, convenient for operation.

8. Multiple controllers can work synchronically when connected by network cable through the RJ45 connector, the network cable between 2 ports up to 80 meters.

Technical Parameters:

Controller

Parameter Description
Working temperature -20-60℃
Supply voltage DC12~24V
Output 4 channels
Connecting mode common anode
External dimension L91*W88*H24 mm
Packing size L102*W102*H66 mm
Net weight 280g
Gross weight 300g
Max. Output current 6A*4CH
Memory function support
Output power 12V:<288W, 24V:<576W
PWM frequency 433.92Mhz
RF distance ≤20m
Mode 9
Static power consumption <1W
Grayscale 256 levels
Speed stage 100 grade

Remote control

Parameter Description
Ambient temperature 0-45℃
Working voltage AC90-265V(50/60Hz)
Standby power 0.2W
Working power 2W
Net weight 130g
RF frequency 433.92MHz
Dimension 86*86*34mm
RF distance ≤20m
Structure 86-type European standard

Typical Applications

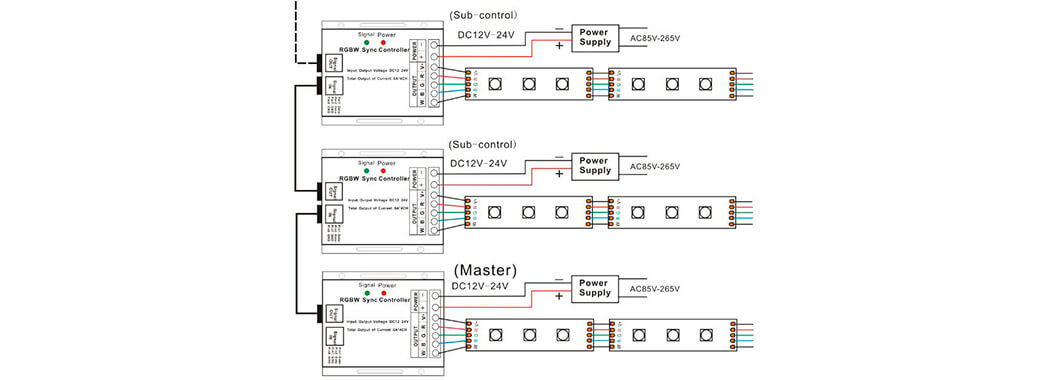

Application Circuit 1:(Synchronization function with network cable)

Application

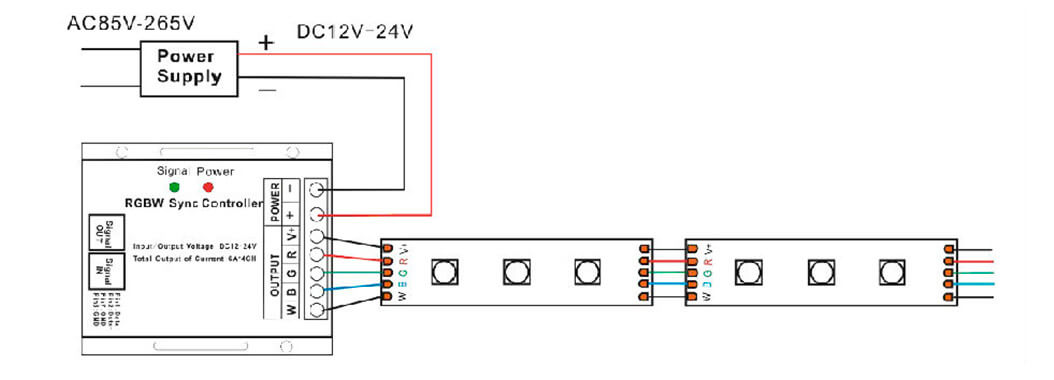

Application Circuit 2:

Application
