Home > Products > LED Controller&LED Dimmer > LED Dimmer > RGB led amplifier 3 channel 3*4A DS-AMF-01
LED Controller&LED Dimmer-LED Dimmer

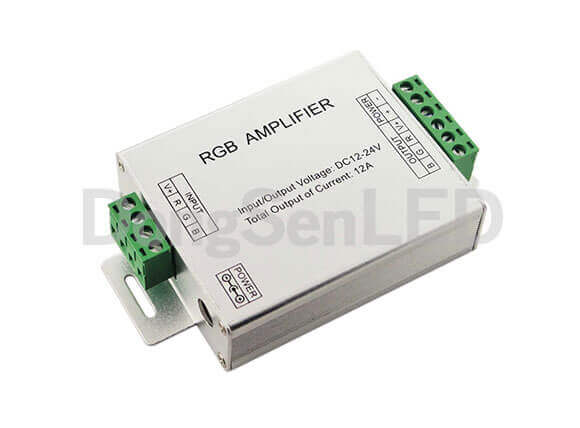

Model RGB led amplifier 3 channel 3*4A DS-AMF-01
(P/N: DS-AMF-01)
Inquiry NowFeature:
LED Amplifier is constant voltage drive, it can work with all kinds of the constant voltage controller;
Adding one DS-AMF-01, it can control more 144W (12V*12A), can connect numerous in theory;
Output to RGB three channels, each channel max current of 4A.
Technical Parameters:
| Parameter | Description |
|---|---|
| Working temperature | -20-60℃ |
| Supply voltage | DC5V, 12V,24V optional |
| 0utput | 3 channels |
| External dimension | common anode |
| Packing size | L105*W65*H23 mm |
| Net weight | L117*W71*H36 mm |
| Gross weight | 110g |
| Static power consumption | 140g |
| Output current | ＜1W |
| Output power | ＜4A(each channel) |
| Output power | 5V:＜60W, 12V:＜144W, 24V:＜288W |

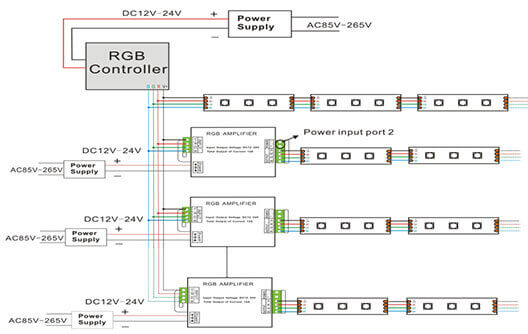

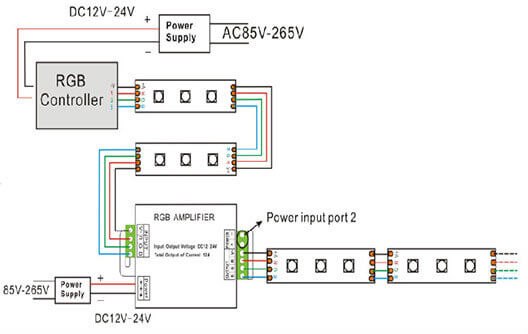

Application:
