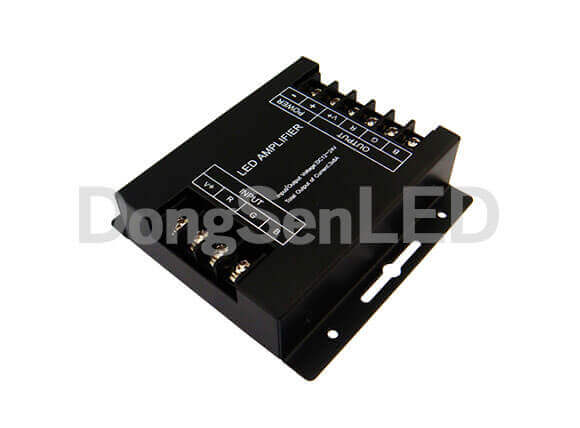

Model RGB led amplifier 3 channel 3*8A DS-AMF-02
(P/N: DS-AMF-02)
Inquiry NowFeature:
LED Amplifier is constant voltage drive, it can work with all kinds of the constant voltage controller;
Adding one DS-AMF-02 RGB amplifier, more 288W (12V) led strips can be derived;
Output to RGB three channels, each channel max current of 8A;
DS-AMF-02 RGB Amplifier is compatible with all our company's RGB LED controller.
Technical Parameters:
| Parameter | Description |
|---|---|
| Working temperature | -20-60℃ |
| Supply voltage | DC12V~24V |
| 0utput | 3 channels |
| External dimension | common anode |
| Packing size | L91*W88*H24 mm |
| Net weight | L94*W92*H26 mm |
| Gross weight | 190g |
| Static power consumption | 220g |
| Output current | <1W |
| Output power | ≤8A(each channel) |
| Output power | 12V:≤288W, 24V:≤ 576W |

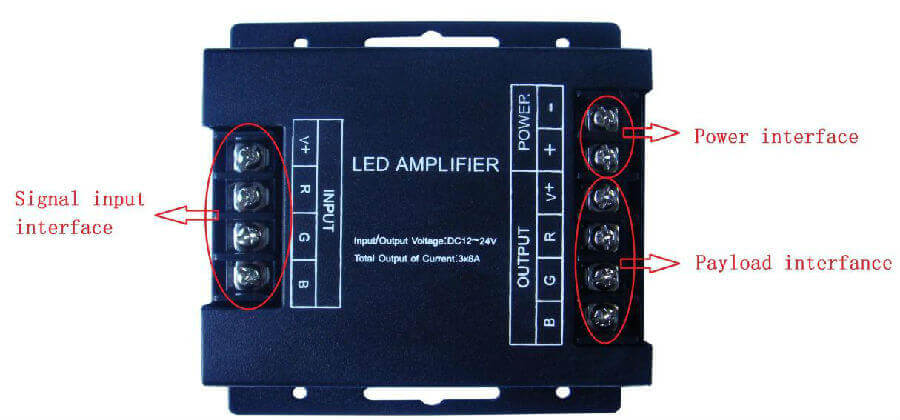

Interface Specifications
Direction for use
Seriously according to the print sign on the RGB amplifier iron box, connect the input and output signal lines correctly. Then connect the power supplier to the RGB amplifier Power. Specifically for the connection with LED controller and LED strip, please refer to the following

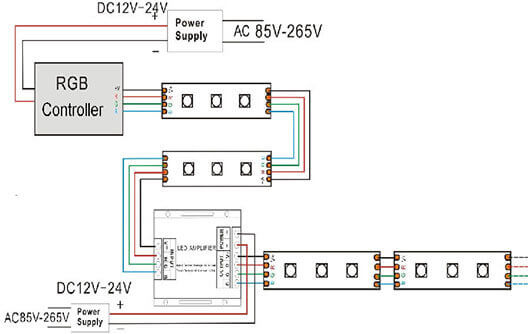

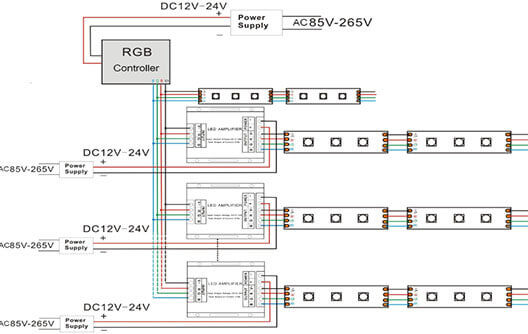

Application:
