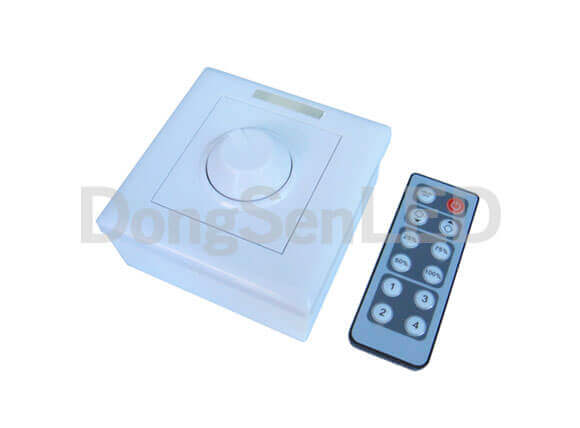

Model Wall mounted 12 key led dimmer DS-IR12-T1

(P/N: DS-IR12-T1)

Inquiry Now

Feature:

Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free;

Adopt IR wireless remote control technology, you can manually adjust the brightness;

Power and low-power LED Dimmer can extend the LED life span and save energy;

Competitive price, easy wiring, simple to use;

Gray level 255; with custom features, delay shutdown function and a fixed grayscale output.

Technical Parameters:

Parameter	Description
Working temperature	-20-60℃
Supply voltage	DC5V, 12V~24V optional
0utput	1 channel
External dimension	L87W87H53 mm
Packing size	L102W102H66 mm
Net weight	150g
Gross weight	200g
Static power consumption	＜1W
Output current	＜8A
Output power	5V:＜40W, 12V:＜96W, 24V:＜192W

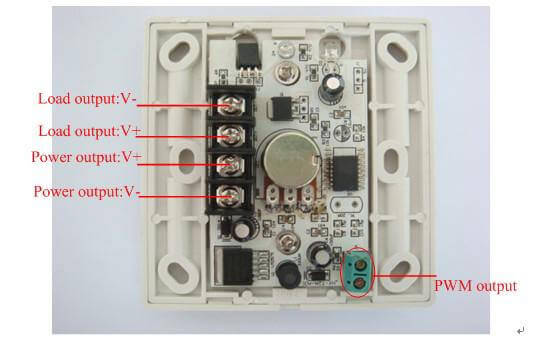

Interface Specifications

Direction for use

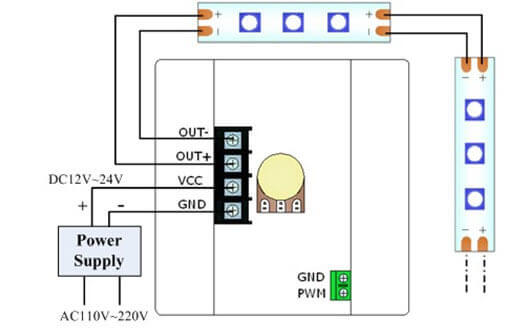

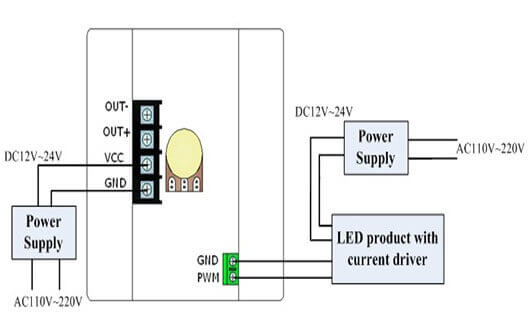

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

When operation, the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver; When dimmer receives an effective signal from the infrared remote control, the red light on the upside flickers; There are two methods in Dimming:

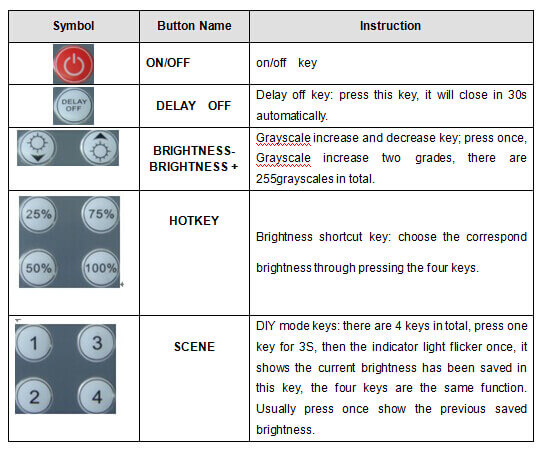

(1)Infrared remote control adjustment mode; the key features as follow(range as the keys of remote controller)

Interface Specifications
