LED Module-Injection LED Module With Lens

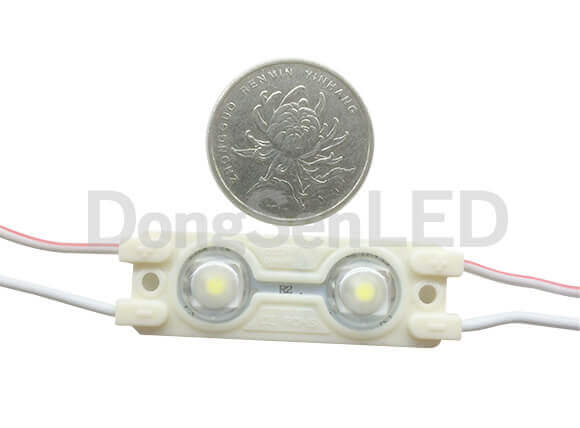

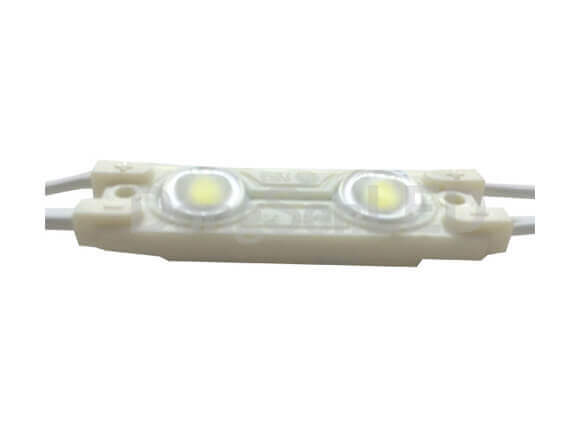

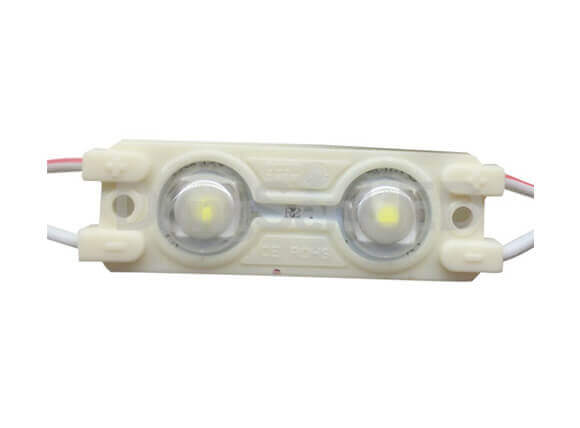

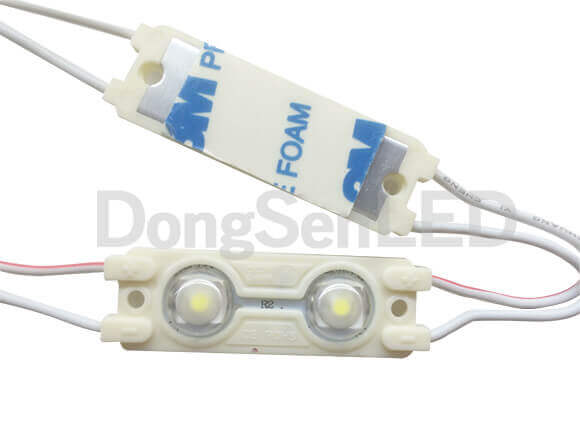

Model Constant current 5050 inject led module with lens 2led MS-2W50

(P/N: MS-2W50)

98% transmittance lens, Wider view angle 160°;

Constant Current Driving method, 50 pcs per Chain;

Adopt top 5050 SMD led, 22-24 lumen per single led, Original Epistar chip from Taiwan;

Excellent color uniformity, Strict only one BIN led for every order;

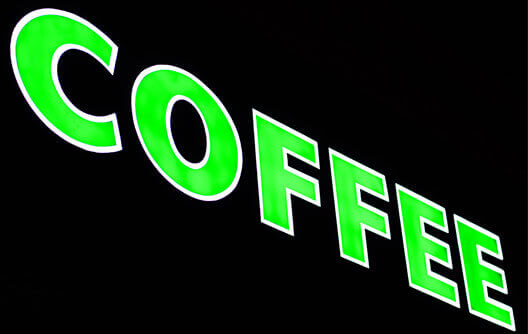

Suitable for Super Thin channel letters and light boxes, No Spot, No Shadow;

Injection molding process，IP Rate:IP 67, waterproof.

Exposed Aluminum pcb design, perfect heat dissipation;

CE&ROHS Certification, 3 year Warranty.

Parameter	Description
Part No.	MS-2W50	MS-2R50	MS-2G50	MS-2B50	MS-2Y50
Voltage (V)	DC12V
Power (W)	0.48 W
Available Color	White	Red	Green	Blue	Yellow
Lumen/pc	44-48	13	25	8	10.5
Color Temperature Wave length (k/nm)	2700-9,000k	620-625nm	515-525nm	465-475nm	585-595nm
LED Type	5050 SMD LED
LED Qty	2 led/pc
Chip Brand	Epistar Chip from Taiwan

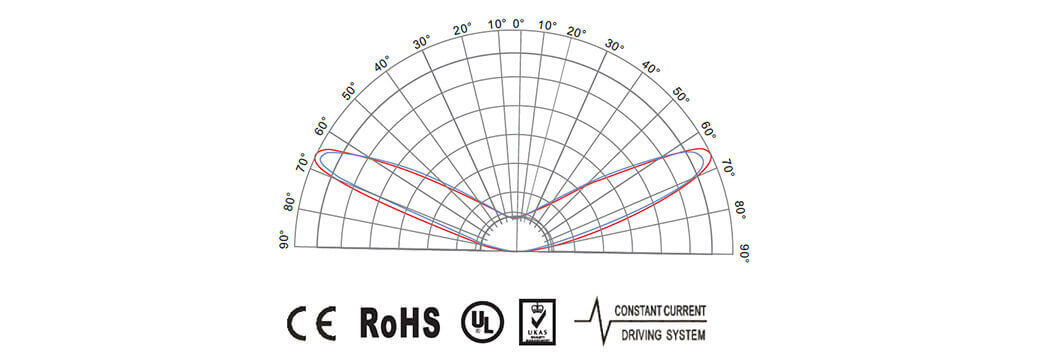

Viewing angle	160 degree
Shell	ABS+Optical Lens
Driving Method	Constant Current Drive
Standard QTY per Chain(pcs)	50 pcs
Working Temperature	-25°C~60°C

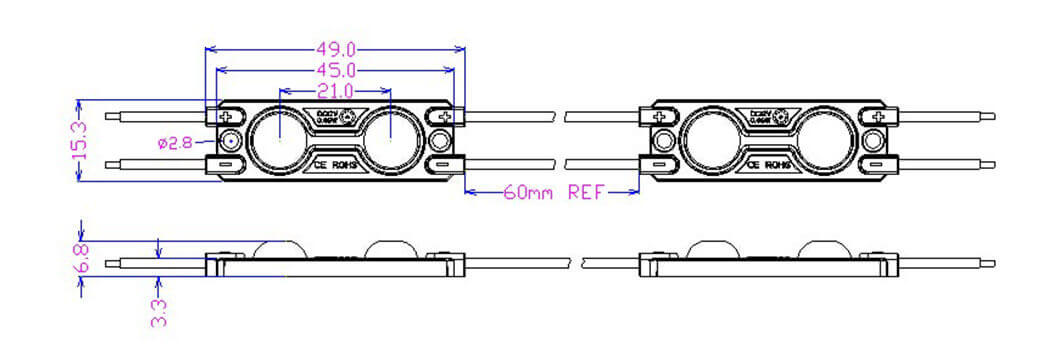

Dimension	44166.8 mm
PCB	Aluminum
IP Rate	IP67
Span life	50,000h
Certification	CE&ROHS
Warranty	3 Years
