LED Module-Edge lit Light Box LED Module

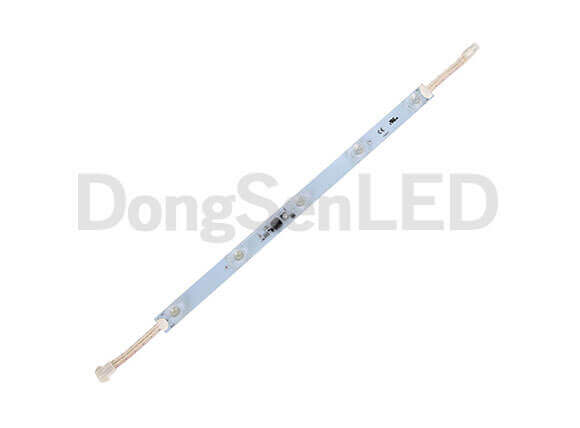

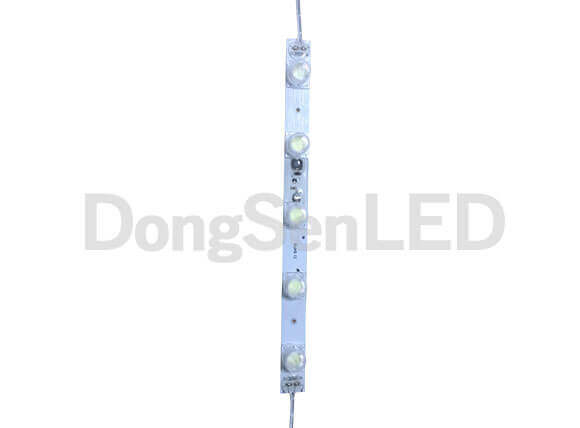

Model DC24v side light led bar osram 3535 led YF15-5W
(P/N: YF15-5W)
Inquiry NowFeature:

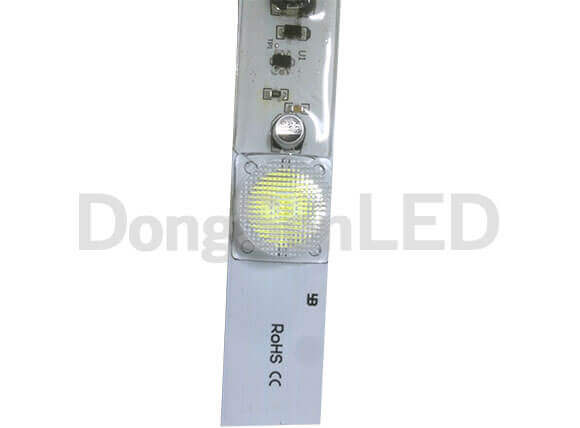

High brightness SMD CREE or OSRAM 3535 LEDs with heat sink;

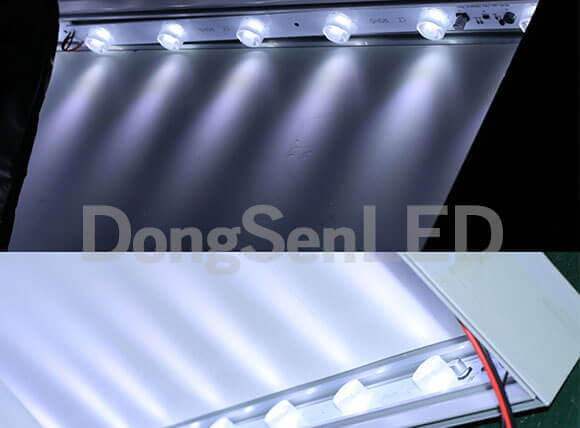

Side lighting module, 40*15 degree beam angle. High light transmittance Optical lens;
Moisture-proof, water-proof, dust proof and impact resistance;
Professional multi-optic design, best brightness, no spot, no shadow;
IP65 protection level;
Nice structure and injection molding process. Remarkable multiple optic technique.
Technical Parameters:
| Parameter | Description |
|---|---|
| Voltage (V) | DC24V |
| Power (W) | 15W/pc |
| Available Color | Warm White/ Pure White/ Cool White |
| Color Temperature Wave length (nm) | 2700-9000k |
| Lumen | 1100 Lumen |
| Viewing angle | 40*15° degree |
| LED Qty | 5 led/pc |
| LED Type | 3535 SMD LED |
| Chip Brand | CREE or OSRAM |
| Drive Method | Constant Current Drive |
| Cuttable Unit | 3 LED as a Unit can be cuttable |
| Max Connection | 20 pcs |
| Dimension | 495*28*15.6 mm |
| IP Rate | IP 67 |
| Structure & material | Aluminum PCB&PC Lens |
| Working Temperature | -40°C~60°C |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Part No. | YF15-5W |

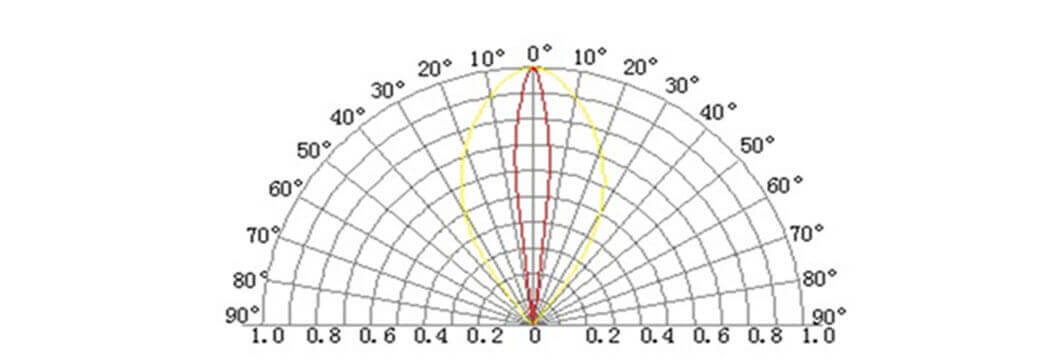

Light Distribution Curve:

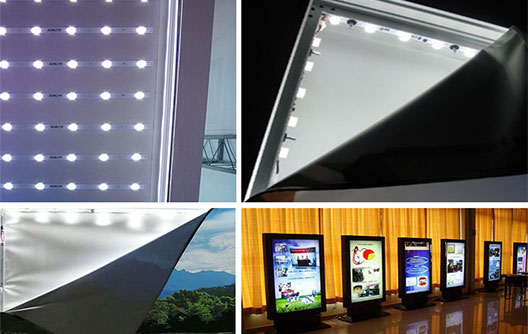

Application:
Double-sided light box;
Giant LOGO & channel Letters;
Advertisement Light boxes;
Landscape, commercial, home and stage decoration.
