LED Module-Edge lit Light Box LED Module

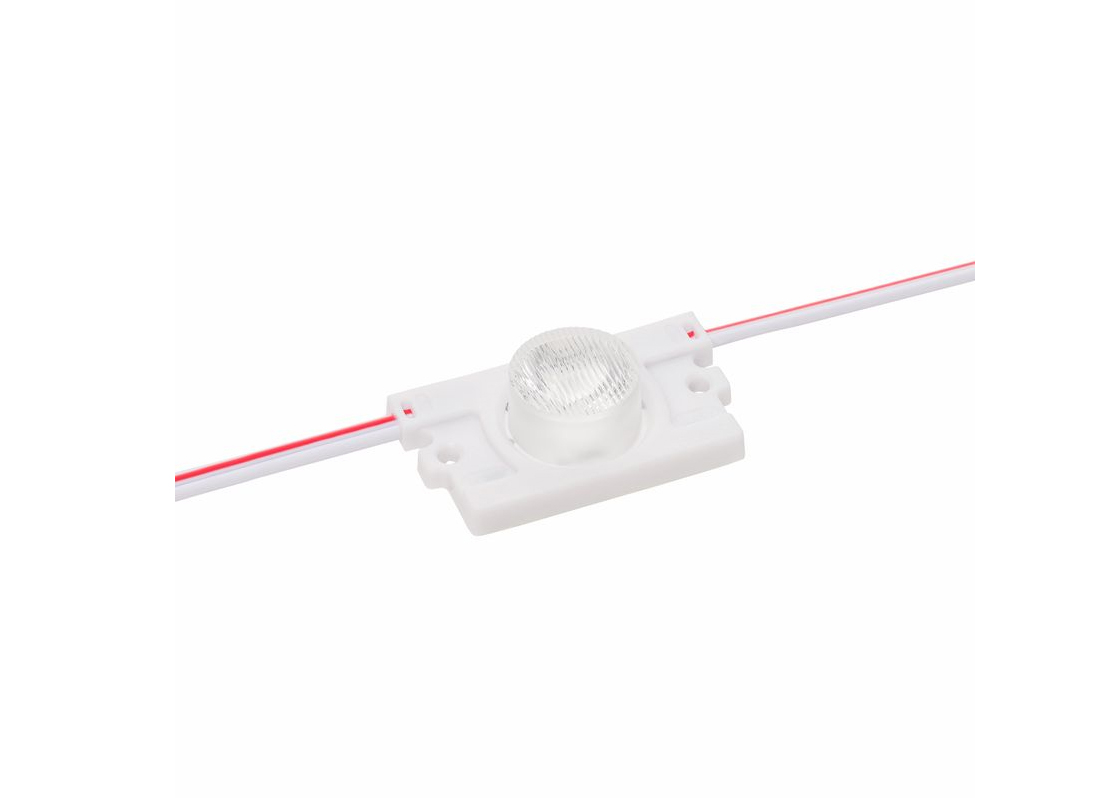

Model Edge Light LED Module 1.4W 15*45°MH-1WB
(P/N: MH-1WB)
Inquiry NowFeature:
1. Best for over 10-20 cm depth Single and Double side Light box.
2. Unique dual angle optical lens design, 15*45 degree, Optimized for use in Double Sided Light box lighting
3. Use EMC light source, low lumens depreciation, fast heat dissipation, high efficiency.
4. PCB aluminum plate with high quality aluminum, good heat sinking and long lifespan.
5. Ensure the product stable performance, long life, good brightness uniformity.
6. CE&ROHS certification, 3 years warranty.
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| Voltage (V) | DC12V | ||
| Power (W) | 1.4 W/pc | ||
| Available Color | Warm White/ Pure White/ Cool White | ||
| Color Temperature Wave length (nm) | 2700-3300k/6000-6500k/ 9000-12000k | ||
| Lumen | 120-130lm | ||
| Viewing angle | 15*45° degree | ||
| LED Qty | 1 led | ||
| LED Type | EMC 3030 SMD LED | ||
| Chip Brand | Epistar Chip | ||
| Drive Method | Constant Current Drive | ||
| Cuttable Unit | 1 LED as a Unit can be cuttable | ||
| Max Connection | 30 pcs per Chain | ||
| Dimension | 45*26*11.8 mm | ||
| IP Rate | IP 67 | ||
| Cover | Milk White ABS with Optical Lens | ||
| Working Temperature | -25°C~60°C | ||
| Span life | 50,000h | ||
| Certification | CE&ROHS | ||
| Part No. | MH-1WB | ||

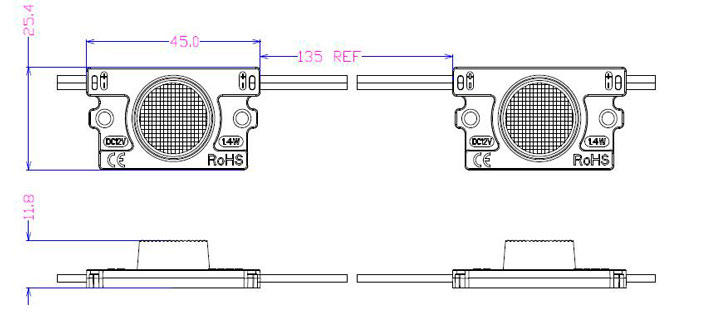

Dimension(mm) :
Light Distribution Curve:

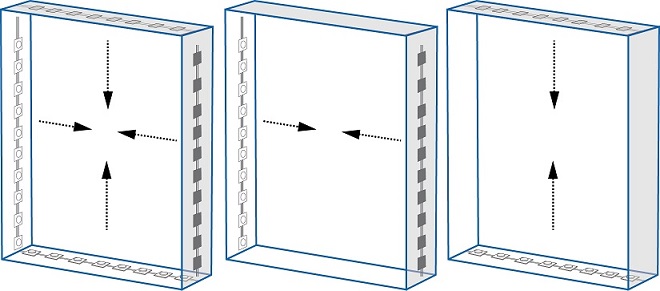

Installation instructions:
1.Installed on the box bottom, back glue scheduled, fixed with screw.
2.Cascade can cut, 1pcs modules can be cut.

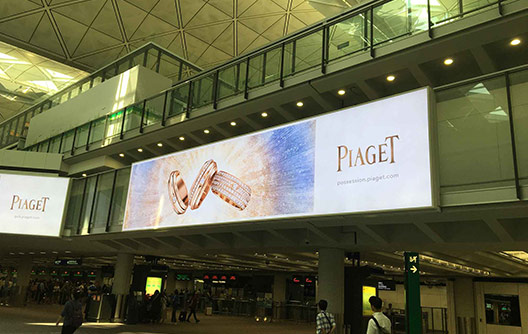

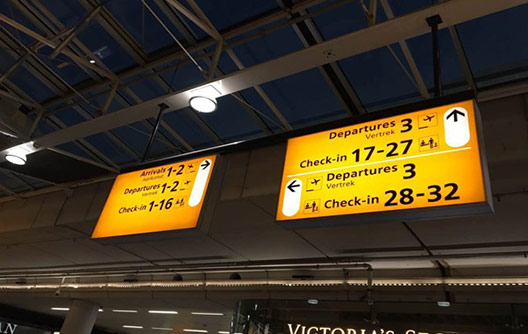

Application:
1. Best for 10-20cm thickness of light box
2. Shopping malls, airport, subway, bus station and other places of light box.
