LED Module-Light Box LED Module

Model Osram 3030 led bar for light box 12led DC24v YF12W-24

(P/N: YF12W-24)

Inquiry Now

Feature:

High luminous efficacy, long life and low attenuation with 1 Watt OSRAM 3030 SMD LED mounted;

Optical Lens, 170° degree viewing angle;

Uniform light by strictly controlled bin rank system;

Aluminum shell with silicon sealed, perfect heat dissipation;

COST-WISE solution for single sided light box;

Length: 1 meter, The length could also be custom-made.

Technical Parameters:

Parameter Description
Voltage (V) DC24V
Power (W) 14.4 W/pc
Available Color Warm White/ Pure White/ Cool White
Color Temperature Wave length (nm) 2800-3500k/ 6000-6500k
Lumen 1440 Lumen
Viewing angle 170 degree
LED Qty 12 led
LED Type 3030 SMD LED
Chip Brand OSRAM LED
Drive Method Constant Current Drive
Distance between LEDs 83.33mm
Max Connection 30 pcs per Chain
Dimension 1020*22*12 mm
IP Rate IP 67
Protection Aluminum profile+Silicon gel seal
Working Temperature -40°C~60°C
Span life 50,000h
Certification CE&ROHS
Part No. YF12W-24

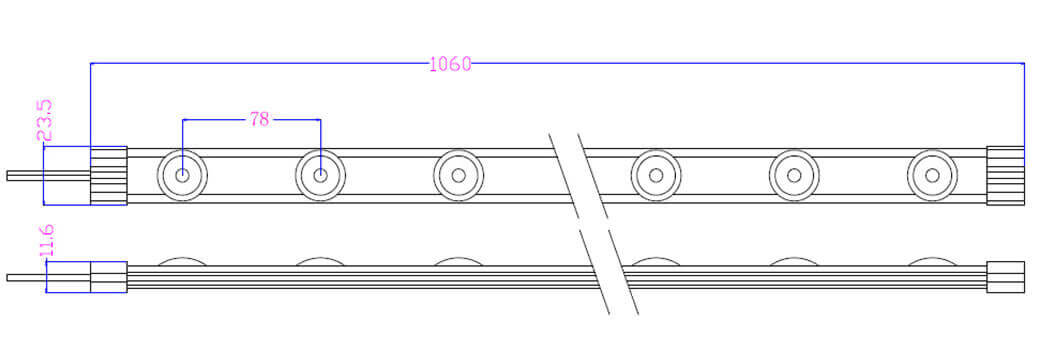

Dimension(mm):

Dimension

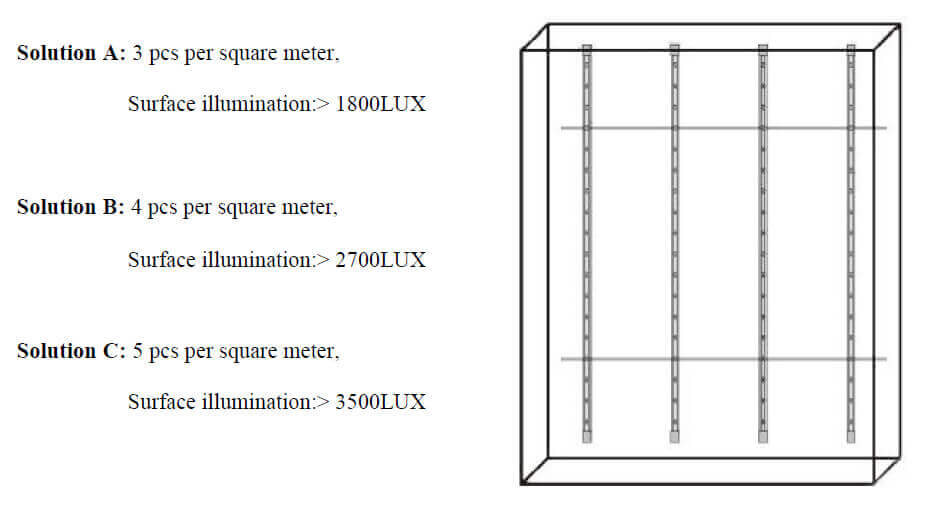

Referring Application(Single side Light Box, Size: 1.0*1.0 m, Depth 12-15cm) :

Dimension

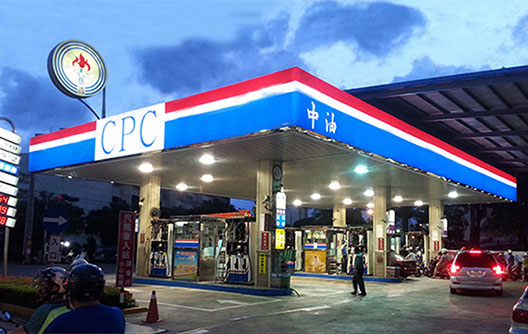

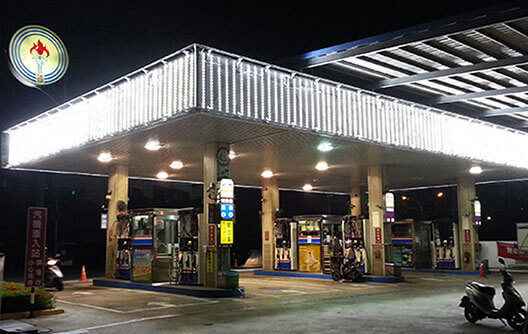

Application:

Single and Double side light box lighting;

Glow sign board backlighting;

Border line lighting.
