LED Module-Samsung LED Module

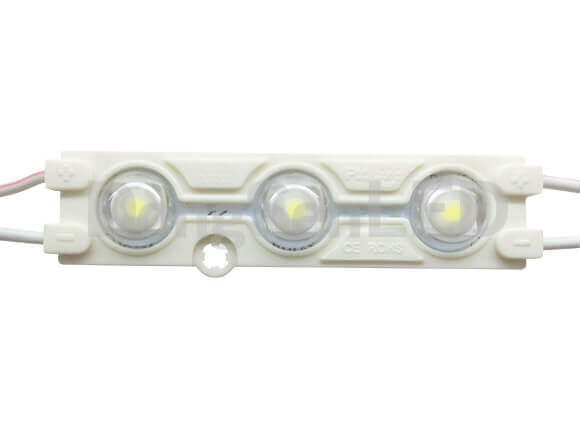

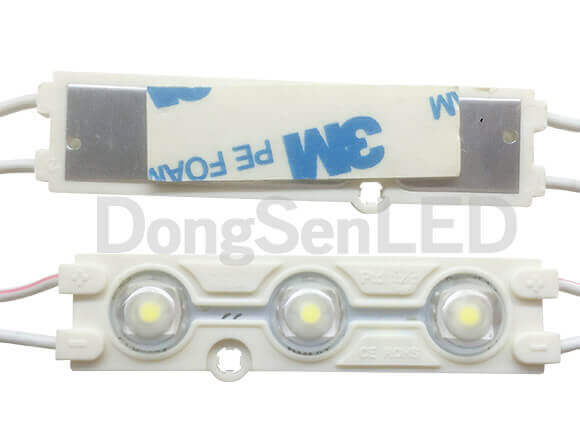

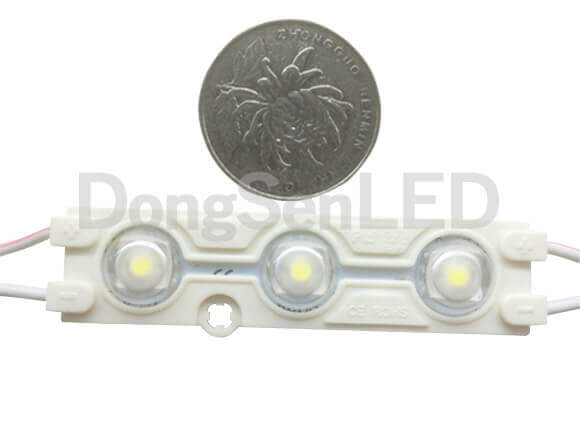

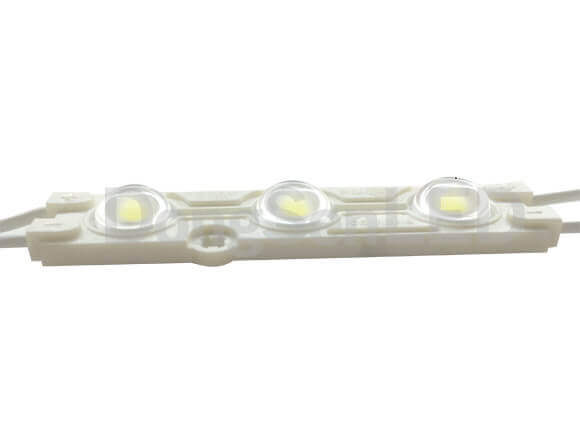

Model Samsung 5050 injection led sign module with lens 0.72watt MSS-3W50

(P/N: MSS-3W50)

Adopt Top 5050 SMD LED, Original SAMSUNG LED from Korea;

Constant current drive, 40 pcs per chain, each module cuttable;

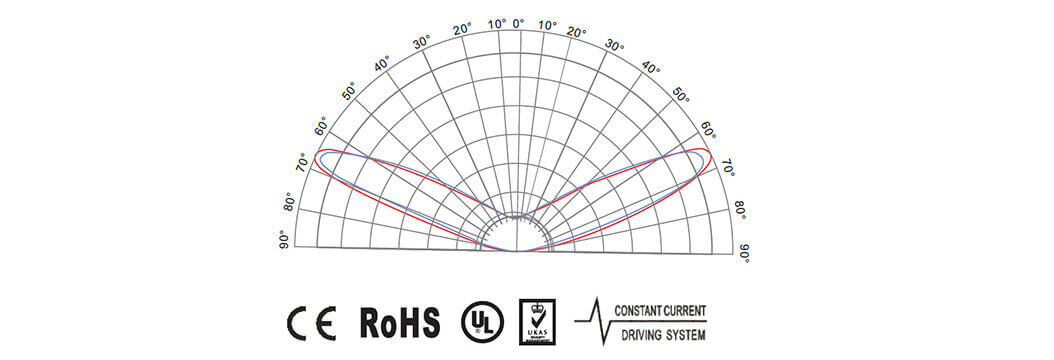

Bat-wing optical lens design, 160° beam angle;

Exposed Aluminum pcb design, perfect heat dissipation;

Slight current drop through wire to wire connection;

High luminosity & Compact design;

Long span life, 50,000 hrs;

CE&ROHS certificate, 5 years warranty.

Parameter	Description
Part No.	MSS-4W50	MSS-4R50	MSS-4G50	MSS-4B50	MSS-4Y50
Voltage (V)	DC12V
Power (W)	0.72 W
Available Color	White	Red	Green	Blue	Yellow
Lumen/pc	66-72	19.5	37.5	12	16
Color Temperature Wave length (k/nm)	2700-9,000k	620-625nm	515-525nm	465-475nm	585-595nm
LED Type	5050 SMD LED
LED Qty	3 led/pc
Chip Brand	SAMSUNG LED from Korea
Viewing angle	160 degree
Shell	ABS+Optical Lens
Driving Method	Constant Current Drive
Standard QTY per Chain(pcs)	40 pcs
Working Temperature	-25°C~60°C

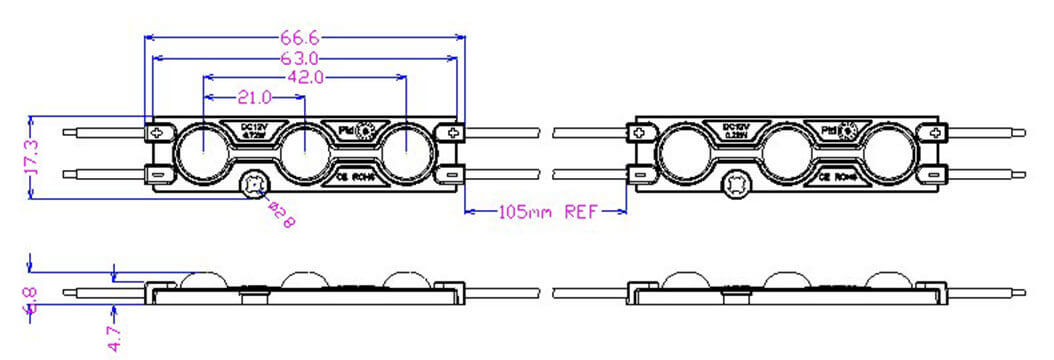

Dimension	68166.8 mm
PCB	Aluminum
IP Rate	IP67
Span life	50,000h
Certification	CE&ROHS
Warranty	5 Years
