LED Module-Samsung LED Module

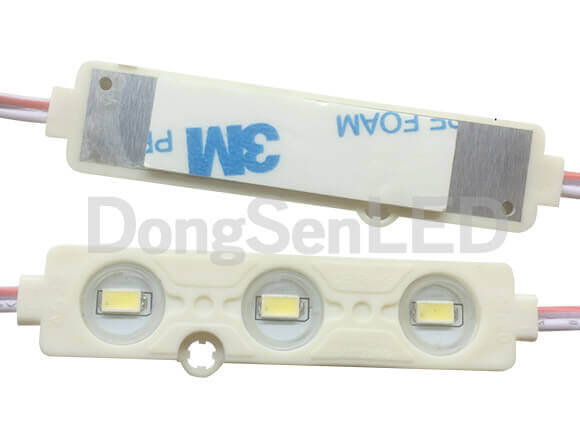

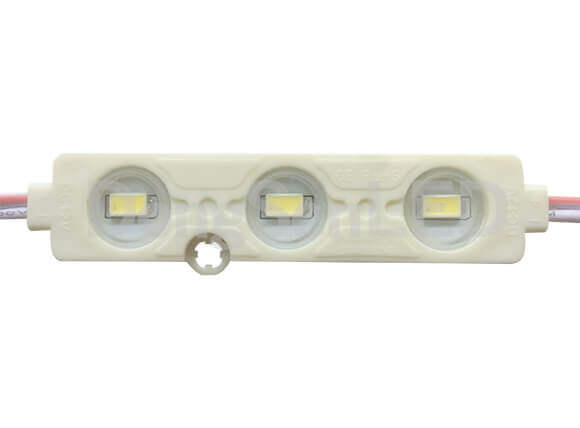

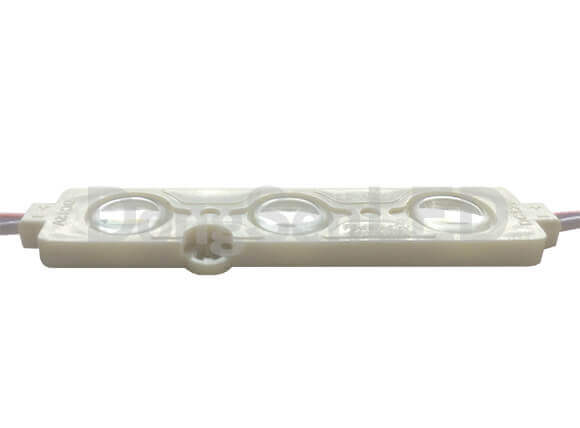

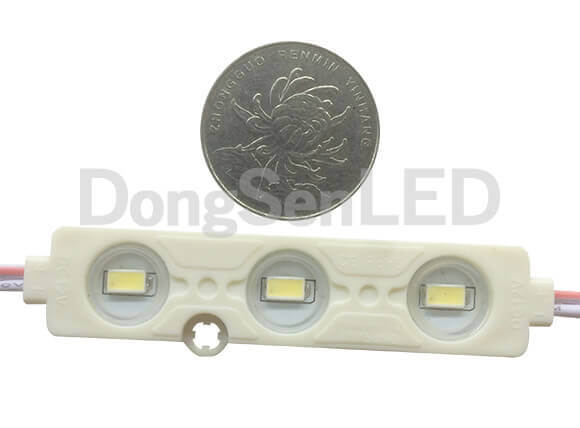

Model Samsung 5630 inject led module with pc cap IP67 MSC-3W56

(P/N: MSC-3W56)

High Brightness 5630 SMD led, Original Samsung LED from Korea;

High color consistency, Strict one bin led for each order;

Transparent PC cap, better protection;

Injection molding process, IP Rate: IP 67, waterproof;

Exposed Aluminum pcb design, perfect heat dissipation;

Slight voltage drop through wire to wire connection;

CE&ROHS certificate, 5 Years Warranty

Parameter	Description
Voltage (V)	DC12V
Power (W)	1.2 W/pc
Current (mA)	100 mA/pc
Available Color	White	Red
Lumen	150	38
Color Temperature Wave length (k/nm)	2700-9000k	620-625nm
LED Type	5630 SMD LED
LED Qty	3 led/pc
Chip Brand	SAMSUNG LED FROM KOREA
Viewing angle	120 degree
Shell	ABS+pc cap
Standard QTY per Chain(pcs)	20 pcs
Driving Method	Constant Current Drive

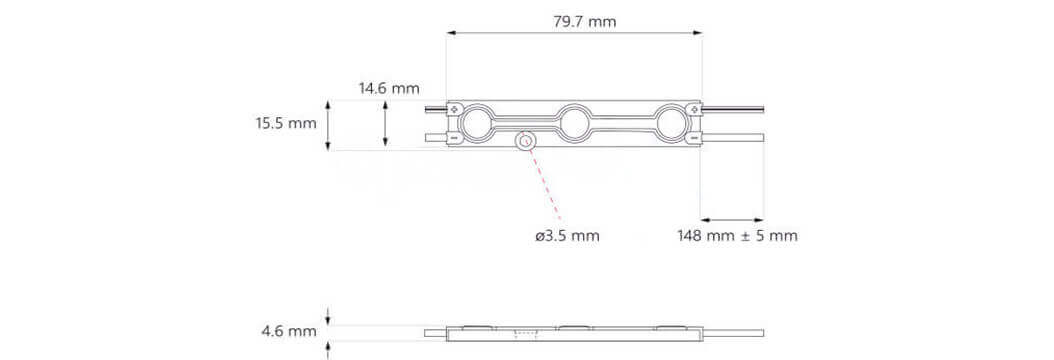

Dimension	68166.8 mm
IP Rate	IP67
Working Temperature	-25°C~60°C
PCB	Aluminum
Span life	50,000h
Certification	CE&ROHS
Warranty	5 Years
Part No.	MSC-3W56	MSC-3R56
