LED Module-Samsung LED Module

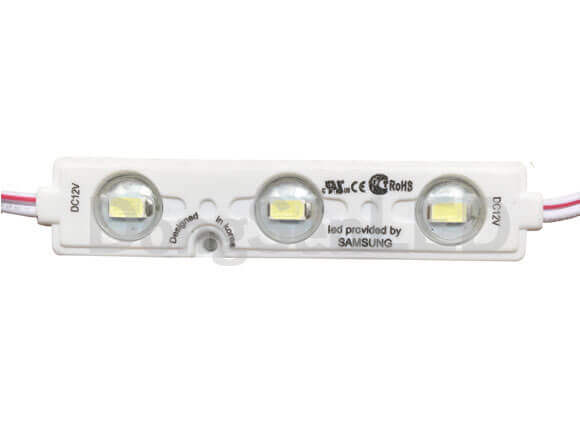

Model Samsung 5630 Injection Linear LED Module-3 LED 1.08W with PC cap Korea LED Module MP-3W56C

(P/N: MP-3W56C)

Inquiry Now

Feature:

1. Most Preferred Best seller LED module : CE, RoHS Certified

2. Adopt 5630 led, High brightness, low decay

3. LED provided by SAMSUNG

4. Fabricated with a CAP TYPE Optical Lens, 140 degree viewing angle.

5. LED Driver : Constant Voltage Driving System

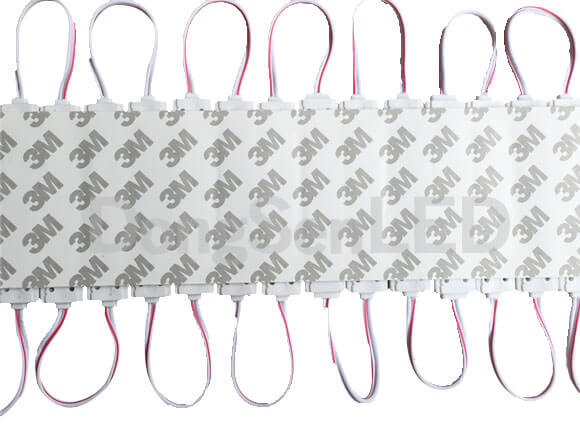

6. Strong 3M VHB tape adhesive, faster installation

7. Each unit can be used to cut.

Technical Parameters:

Parameter Description
Part No. MP-3W56C MP-3R56C MP-3G56C MP-3B56C MP-3Y56C
Voltage (V) DC12V
Current(A/pc) 0.09A 0.06A
Power (W/pc) 1.08W 0.72 W
Available Color White Red Green Blue Yellow
Luminous Flux(lm) 120 24 48 21 28
Color Temperature Wave length (k/nm) 2700-9000k 620-625nm 515-525nm 465-475nm 585-595nm
LED Type 5630 SMD LED
LED Qty 3 led/pc
Chip Brand Samsung LED & Epistar Chip
Viewing angle 140 degree
Module Pitch 90mm
Driving Method Constant Voltage Drive

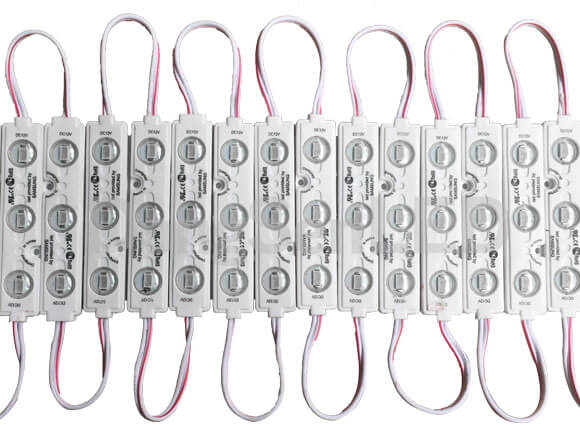

Standard QTY per Chain(pcs) 20 pcs
Working Temperature -25°C~60°C
Storage Temperature -40°C~80°C
Dimension 66*15*6.8 mm
IP Rate IP67
Span life 50,000h
Certification CE&ROHS
Warranty 3 Years

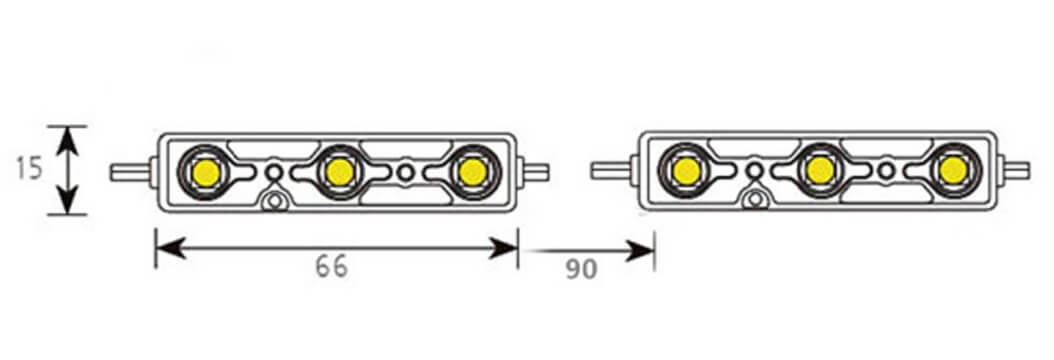

Dimension(mm):

Dimension

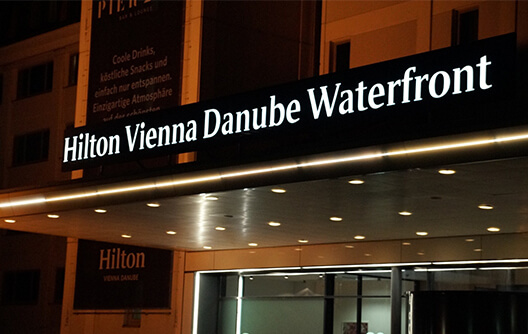

Application:

1. Normal size Channel letters and signage

2. Flex light Box illumination

3. Duplex light Box illumination
