LED Module-Samsung LED Module

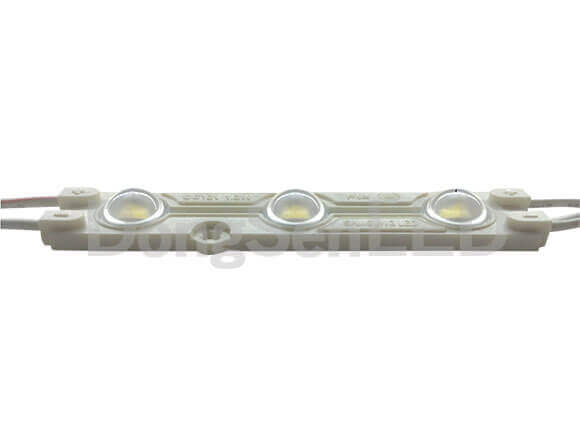

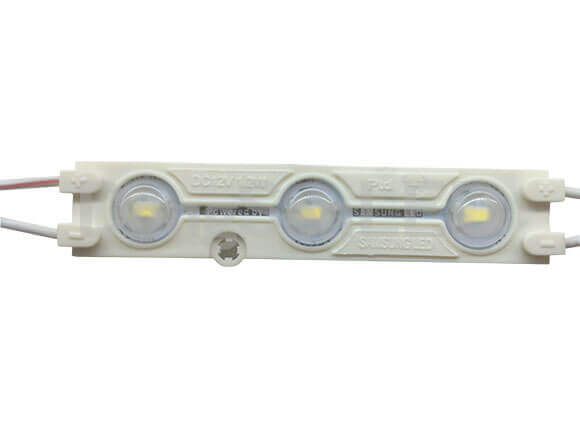

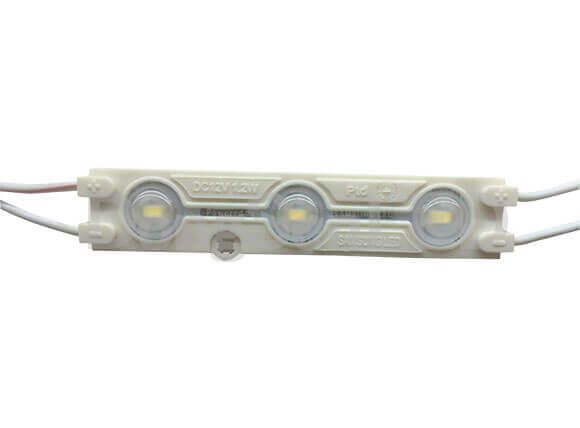

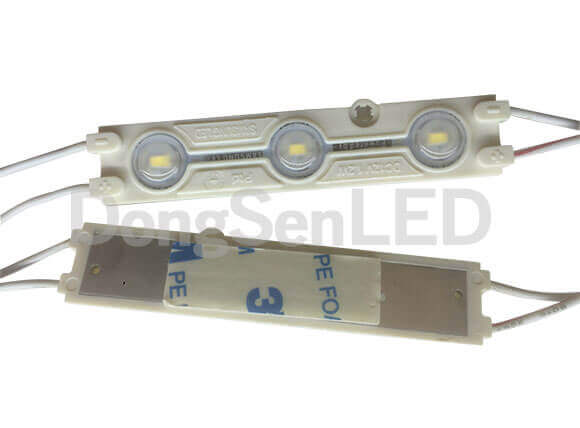

Model Samsung led 5630 smd led module with lens high luminosity 5 years warranty MSS-3W56

(P/N: MSS-3W56)

Adopt Top 5630 SMD LED, Original Samsung LED from Korea;

98% transmittance lens, Wider view angle 160°;

Constant Luminosity & Current flow to Max. 20 modules in series;

Injection molding process，IP Rate:IP 67, waterproof;

Exposed Aluminum pcb design, perfect heat dissipation;

Slight voltage drop through wire to wire connection;

CE&ROHS certificate;

50,000 hrs span life, 5 Years Warranty.

Parameter	Description
Voltage (V)	DC12V
Power (W)	1.2 W/pc
Current (mA)	100 mA/pc
Available Color	White	Red
Lumen	150	38
Color Temperature Wave length (k/nm)	2700-9000k	620-625
LED Type	5630 SMD LED
LED Qty	3 led/pc
Chip Brand	SAMSUNG LED FROM KOREA

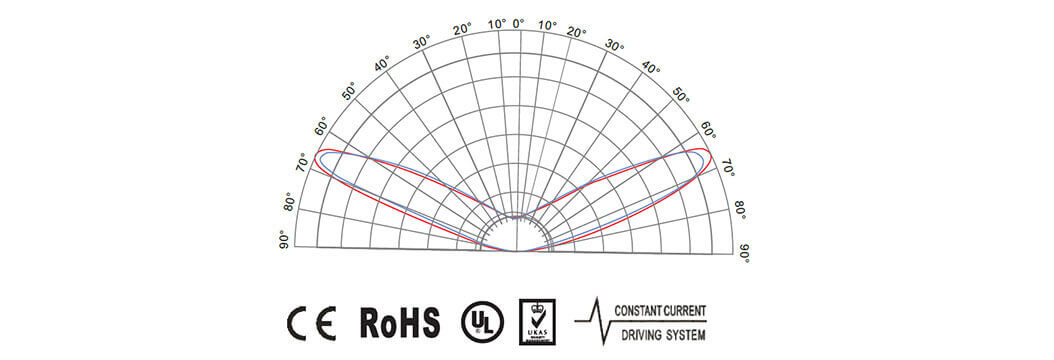

Viewing angle	160 degree
Shell	ABS+Optical Lense cap
Standard QTY per Chain(pcs)	20 pcs
Driving Method	Constant Current Drive

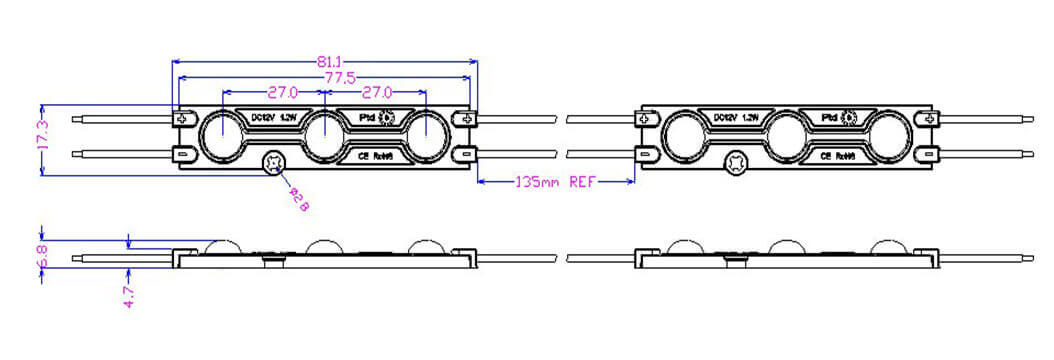

Dimension	68166.8 mm
IP Rate	IP67
Working Temperature	-25°C~60°C
PCB	Aluminum
Span life	50,000h
Certification	CE&ROHS
Warranty	5 Years
Part No.	MSS-3W56	MSS-3R56
