Products-LED Pixel Light

Model 12mm RGB led pixel light IP65 D12-1RGB

(P/N: D12-1RGB)

Inquiry Now

Feature:

High efficiency RGB led, Epistar chip from Taiwan;

Diameter 12mm, Every 50 pcs per a chain;

RGB Color, could realize a wide range of dynamic lighting effects;

Injection mold process, IP65, could be used outdoor;

Soft PVC shell, are suitable for many kinds of plates, such as stainless steel, plexiglass, aluminum, ect;

Easy and fast installation.

Technical Parameters:

Parameter Description
Dimension Φ12mm
LED No 1 pc through-hole LED
Voltage DC5V
View angle 90-110 degree
Current 60 mA
Watts 0.3 Watt
Color RGB
Cover Transparent  PVC
IP rate IP65
Working temp -40~+80℃
Max connection 50 pcs per a string
Life 50,000 hrs.
Warranty 2 Years
Certificate CE&ROHS
Part No. D12-11W

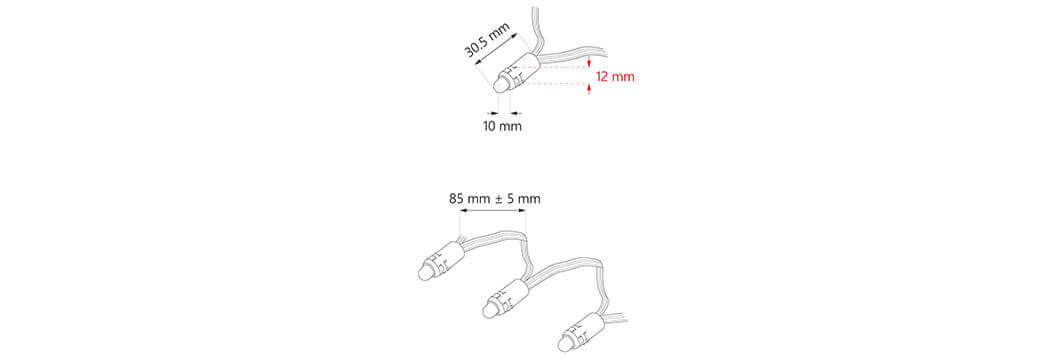

Dimension(mm):

Dimension

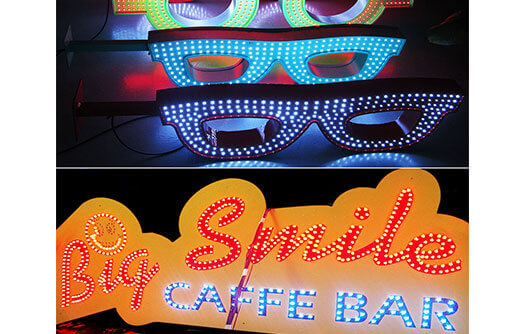

Application:

Decoration light for events, party, ect;

Illuminated signage for shop mall, casino, KTV, night bar, ect;

LED Channel letter, led sign board.
