Products-LED Pixel Light

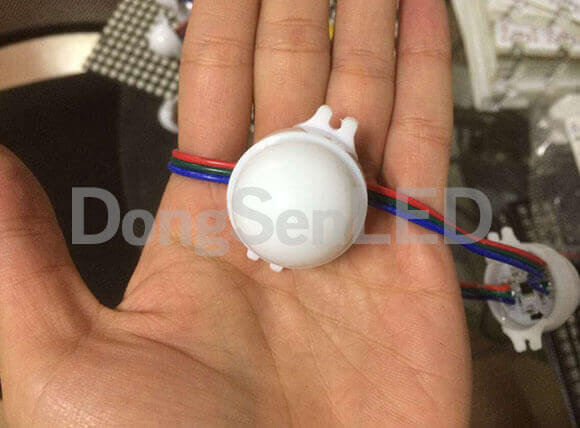

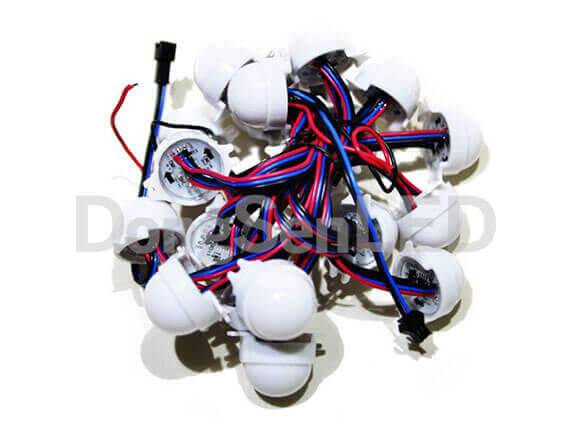

Model Addressable 5050 RGB led dot light 30mm WS2801IC D30-3IC

(P/N: D30-3IC)

Inquiry Now

Feature:

Ideal for the decoration lighting, such as body building floor, stage background and other entertainment;

With Milk white Acrylic shell, good appearance;

Addressable, adopt 3 pcs 5050 RGB SMD LED and 1 pcs WS2801IC;

Controller: T-1000S, SD Card controller, it can work both online and offline, software is free of charge;

IP65, waterproof, could be used both indoor and outdoor.

Technical Parameters:

Parameter Description
Voltage (V) DC12V
Power (W) 0.72W
Available Color Full Color
Color Temperature Wave length (nm) Red(619-635) Green(525-530) Blue(465-470)
LED Qty 3pcs 5050 SMD LED
Control Mode WS2801 IC
Viewing angle 120 degree
Shell Milky plastic case
Shell Size Diameter 30mm
IP Rate IP65
Working Temperature -40°C~60°C
Storage Temperature -50°C~80°C
Drive Mode Constant current drive
Span life 50,000h
Certification CE&ROHS
Part No. D30-3IC

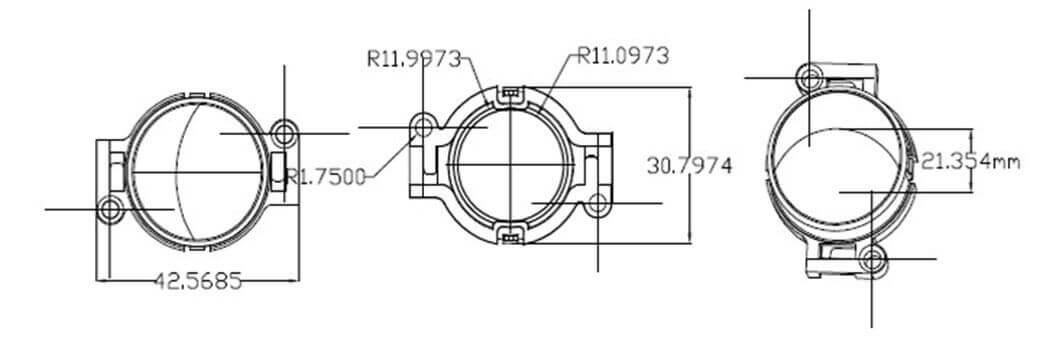

Dimension(mm):

Dimension

Application:

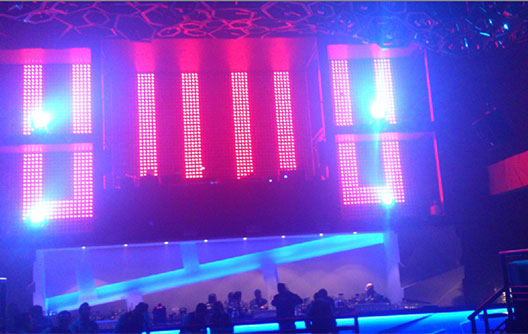

Widely used in body building floor, stage background and entertainment decorative lighting;

Can Display text, graphics, video, animation and other sync clips.
