LED Power Supply-Plug LED Power Supply

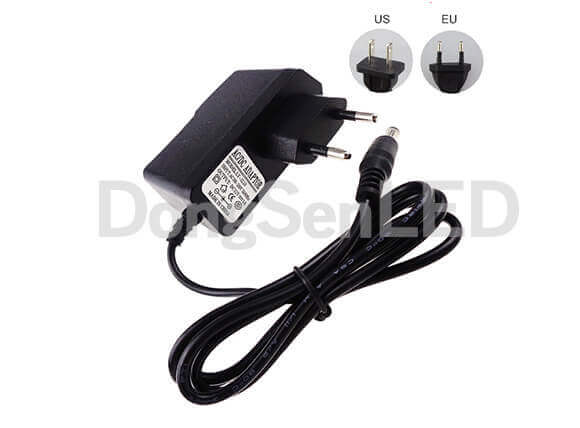

Model Plug Led Power Adapter DC12V 1A for flexible led strip DS-P12-1A

(P/N: DS-P12-1A)

Inquiry Now

Feature:

Built-in over voltage, over current, and short circuit protection;

PWM design, make sure the stability and high efficiency of power supply;

Anti-jamming, passed EMC test, wave less than 20MV;

Output Adaptor Jack is standard DC jack, size : 5.5mmX2.1mm;

Widely used as the power adapter for Led strip, LED module, etc;

Technical Parameters:

Parameter Description
Part No. DS-P12-1A
Connection Type CPS Male
Input Voltage AC85 ~ 264V
Output Voltage DC12V
Output Current 1A
Consumption 12 Watt
Dimmable No
Special Features With AC Input Plug
Type Led Power Supply
Operating Temperature -25~+60 °C
Wire Length 40in(100cm)
DC Jack Type 5.5 Barrel Connector
Power Supply Type Desktop
IP Rate IP20
Standards And Certifications FCC/CE/RoHS Compliant
Warranty 2 years
WarPackage Weight 0.17KG
