Home > Products > LED Power Supply > Waterproof LED Power Supply > 30w waterproof led power supply DFP12-30W
LED Power Supply-Waterproof LED Power Supply

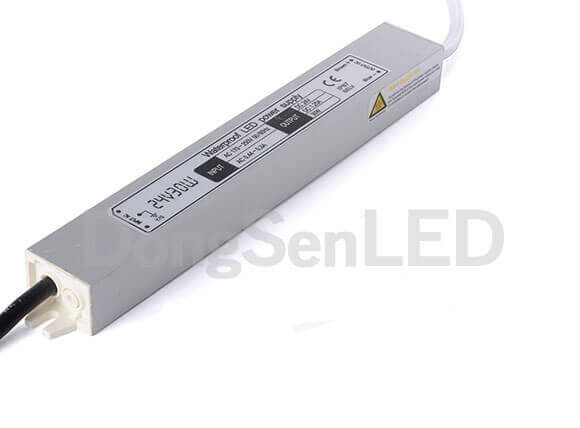

Model 30w waterproof led power supply DFP12-30W
(P/N: DFP12-30W)
Inquiry NowFeature:
Constant Voltage design;
Universal AC input;
Fully encapsulated with IP67 level;
Withstand 300VAC surge input for 5 seconds;
Protections: Short circuit/Over load/Over current;
Cooling by free air convection;
100% full load burn-in test;
High Reliability.
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| MODEL | 12V-60W | 24V-60W | |
| OUTPUT | Rated DC voltage | 12V | 24V |
| Rated current | 2.5A | 1.25A | |
| Current range | 0~2.5A | 0~1.25A | |
| Rated Power | 30W | ||
| Voltage tolerance | 12±0.5V | 24±0.5V | |
| Ripple & Noise | 200mVp-p | ||
| Load regulation | ±2% | ||
| Setup, Rise time | 50ms/230VAC | ||
| Hold up time | 20ms/230VAC | ||
| INPUT | Voltage range | 85~260VAC; | |
| Frequency range | 47~63Hz | ||
| Efficiency (Typ.) | >90% | >90% | |
| Leakage current | 0.25mA/240VAC | ||
| PROTECTION | Over Current | 110%~150% | |
| Protection type: Hiccup mode | |||
| Short circuit | Short circuit protection | ||
| ENVIRONMENT | Working TEMP. | -25℃~50℃ | |
| Storage TEMP. | -40℃~80℃ | ||
| Working Humidity | 20~90% RH non condensing, refer to IP67 | ||
| Vibration | 10~500Hz,2G 10min/1cycle,period for 60min,each along X,Y,Z axes | ||
| TEMP. coefficient | ±0.03%/℃(0~50℃) | ||
| SAFETY & EMC | Safety Standards | IP67 approved; Design refer to LVD EN61347-2-13:2005,EN61347-1:2008 | |
| Withstand Voltage | I/P-O/P:3KVAC, I/P-COVER: 3KVAC , O/P-COVER:500VAC | ||
| Isolation Resistance | I/P-O/P:>100M Ohms/500VDC/25℃/70% RH | ||
| EMC | EN55015:2006/A2:2009,EN61000-3-2:2006/A2:2009,EN61000-3-3:2 | ||
| OTHERS | MTBF | 50KHours 25℃ | |
| Dimension | 222*30*20mm(L*W*H) | ||
| Weight | 0.26Kg,80pcs/21.3Kg/0.023CBM | ||

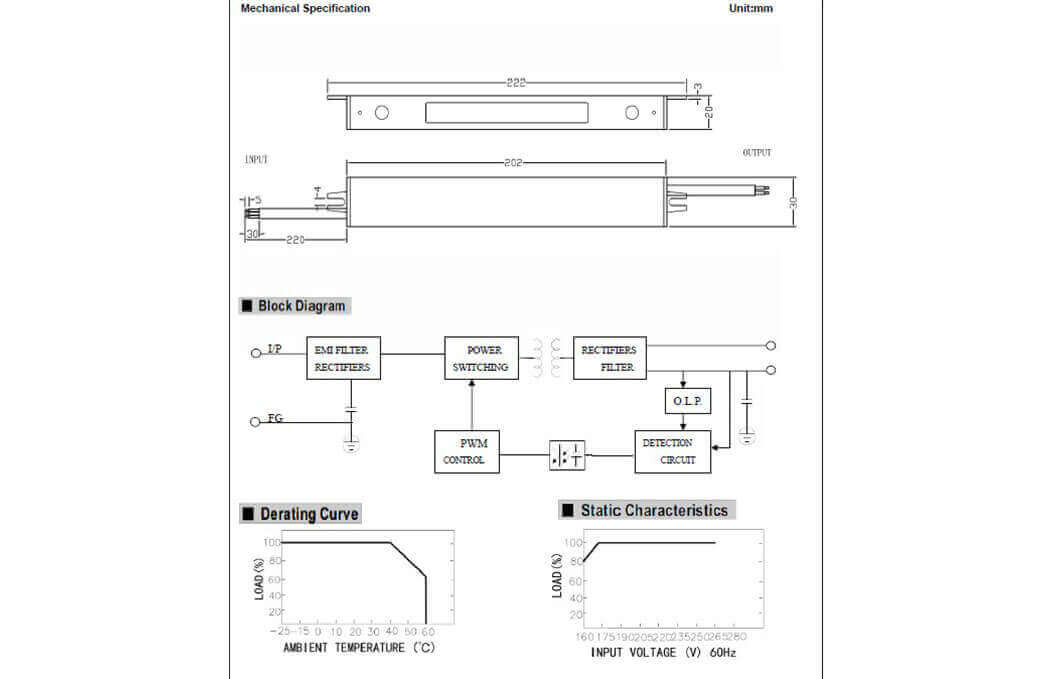

Dimension(mm):
