LED Module

Batwing Lens 2835 LED Module Family

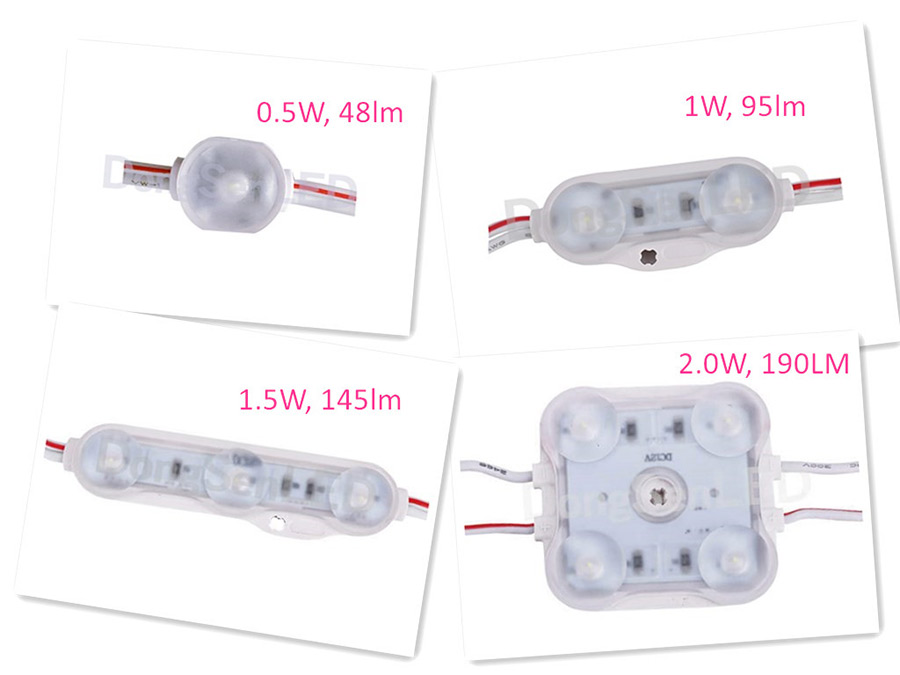

With batwing lens 2835 led module family, we introduce a better solution for illuminate signage and lighting box, Designed for depths range from 60mm-350mm. There are 4 members of this family, The 1/2/3/4 led, Power range from 0.5W-2.0W.

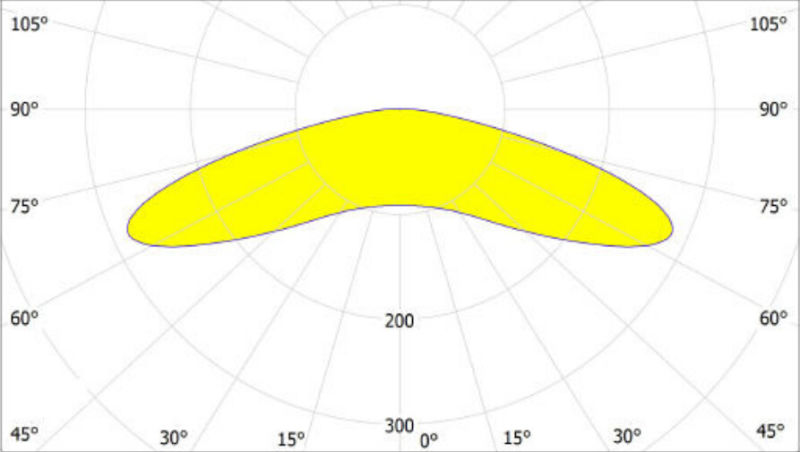

These LED modules has an excellent lens that has been developed to spread the light from the LED lights in a unique 160-degree batwing light pattern. This helps eliminate hot spots even when installed in shallow light boxes and channel letter, also enable you to save the reduce the installation time and save up on module quantity, cost saving.

The specially designed polycarbonate cover is made to withstand harsh environment conditions, The IP Rate could be IP67, better protection.

Powered by 9V 2835 led as light source, up to 110lm/W, Epistar chip and OSRAM LED Option, with 5 Years warranty, and LM80 testing for 50,000 hrs.

Wanna know more, pls email us: info@dongsenled.com
