Flexible LED Strip-2835 SMD Flexible LED Strip
Model High CRI 2835 smd flexible led strip light 120led/m TB08-120W28
(P/N: TB08-120W28)
Inquiry NowFeature:
High efficiency 2835 led, 20-22 lumen/led, CRI>80, 120led/m;
Double Layer PCB, white color, both 8mm and 10mm width PCB for your choice;

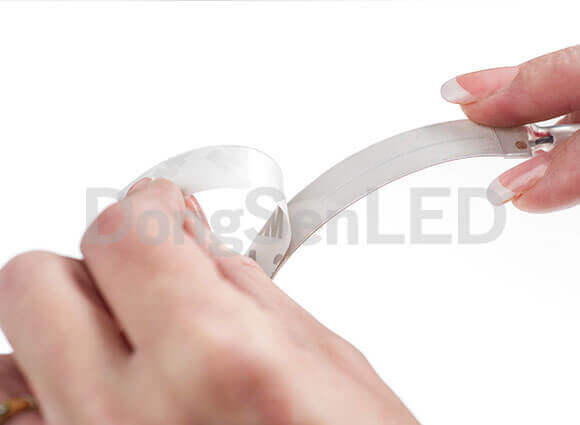

Excellent flexibility;
Slight voltage drop, perfect light uniform;
Available in warm white, pure white, and cool white;
Dimmable;
Every 3 led as a unit could be cut.
Adhesive strong 3M tape, easy installation.
Technical Parameters:
| Parameter | Description | ||||
|---|---|---|---|---|---|
| Voltage (V) | DC12V/ DC24V | ||||
| Power (W) | 20 W/m, 100 W/roll | ||||
| Available Color | White | Red | Green | Blue | Yellow |
| Lumen/m | 2400 | 460-475nm | 510-515nm | 590-595nm | 620-630nm |
| LED Type | 2835 SMD LED | ||||
| LED Qty | 120 led/m, 600 led/roll | ||||
| Chip Brand | Epistar Chip from Taiwan | ||||
| Viewing angle | 120 degree | ||||
| Cuttable Unit | 25mm or 3 LED | ||||
| Dimension | 5000*08*02 mm | ||||
| IP Rate | IP20/IP65/ IP67/IP68 | ||||
| Working Temperature | -40°C~60°C | ||||
| Storage Temperature | -50°C~80°C | ||||
| PCB | Double Layer, Color-White | ||||
| Span life | 50,000h | ||||
| Certification | CE&ROHS | ||||
| Part No. | TB08-120W28 | TB08-120R28 | TB08-120G28 | TB08-120B28 | TB08-120Y28 |

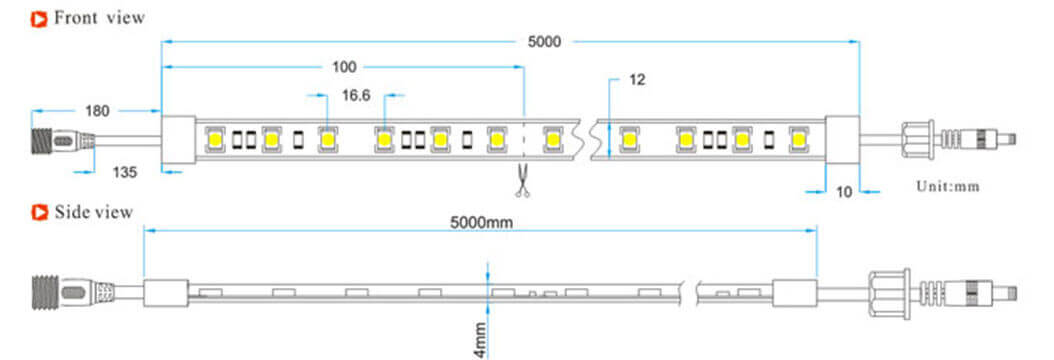

Dimension(mm):

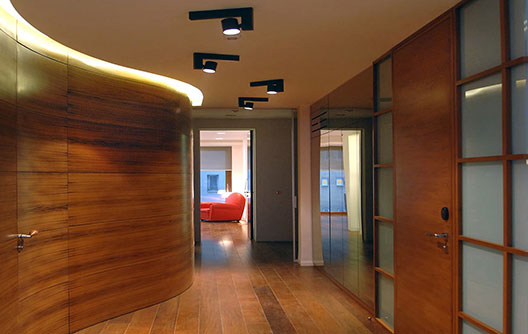

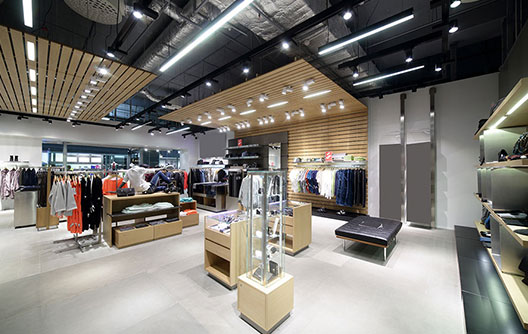

Application:
Retail shop lighting;
LED task lighting;
decoration for the ceiling lighting;
Cove LED lighting;
Museum & Art galleries.
Decoration for the market, supermall;
Studio office lighting.
