Flexible LED Strip-Flexible LED Strip Kit
Model Flexible RGBW led strip kit include remote RGBW led controller TB12-30RGBW-Kit
(P/N: TB12-30RGBW-Kit)
Inquiry NowFeature:
Adopt High quality RGBW 5050 LED, 4 chip in 1 led, Original Epistar chip from Taiwan;
Color changing: RGB+Warm White/Nature white/Cool white;
Double Layer PCB, Flexible and bendable;
Every 3 led as a unit could be cuttable to get your desire length;
Plug and play, easy installation with the adhesive 3M tape on the back to paste;

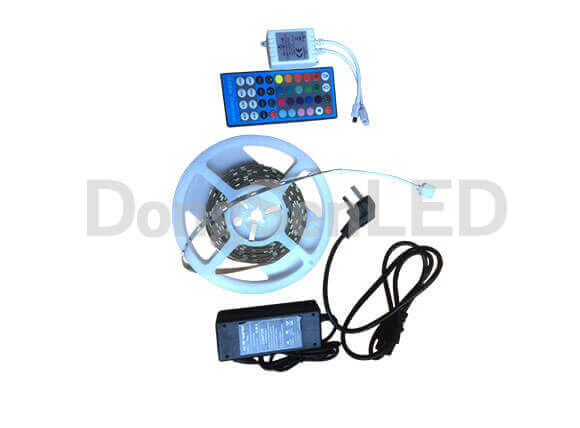

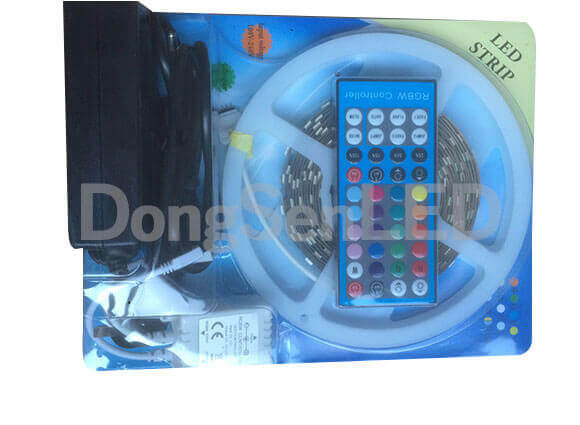

The led strip full kit comes with white PCB board strip, white remote controller, white IR control box and black adapter.
Led Strip Specification:
| Parameter | Description |
|---|---|
| Voltage (V) | DC12V |
| Power (W) | Max 9.6 W/m, 48 W/roll |
| Available Color | RGB+Warm White/Cool White |
| Color TemperatureWave length (nm) | 620-625 |
| LED Type | RGBW 4-in-1 5050 SMD LED |
| LED Qty | 30 led/m, 150 led/roll |
| Chip Brand | Epistar Chip from Taiwan |
| Viewing angle | 120 degree |
| Cuttable Unit | 100mm or 3 LED |
| Dimension | 5000*12*02 mm |
| IP Rate | IP20/ IP65/IP68 |
| Working Temperature | -40°C~60°C |
| PCB | Double Layer, Color-White |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Span life | 50,000h |

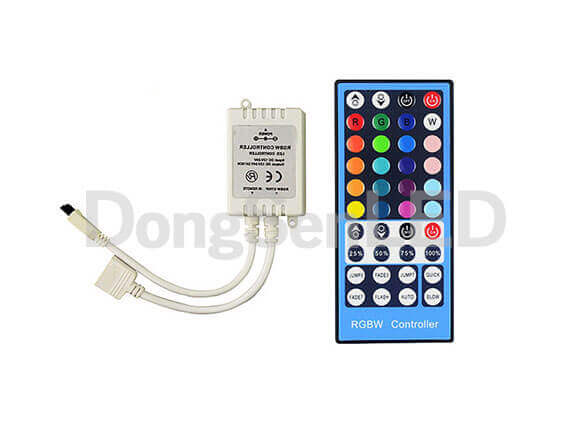

Led Controller Specification:
| Parameter | Description |
|---|---|
| Voltage (V) | DC12V |
| Rated Current | 4*4A CH Max |
| Remote Type | IR remote |
| Key Function | 44 Keys |

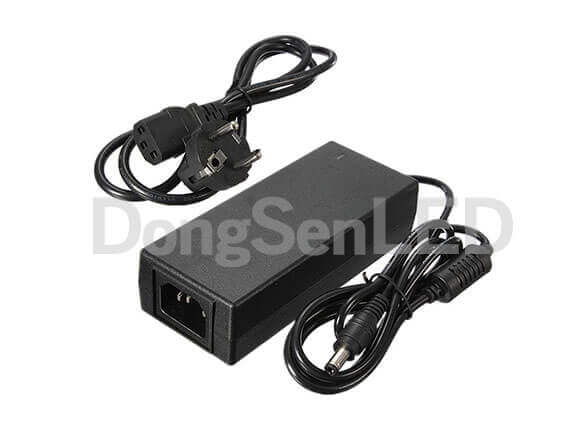

Led Power supply Specification:
| Parameter | Description |
|---|---|
| Input Voltage (V) | AC85-240V |
| Output Voltage (V) | DC12V |
| Current | 5A Max |
| Consumption | 60 Watt Max |

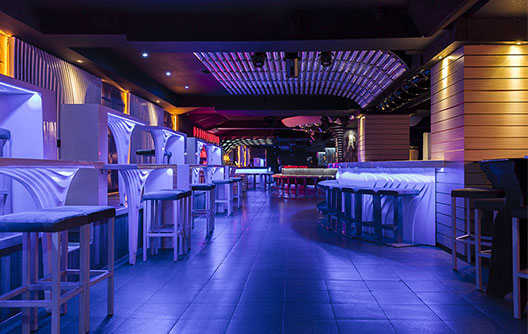

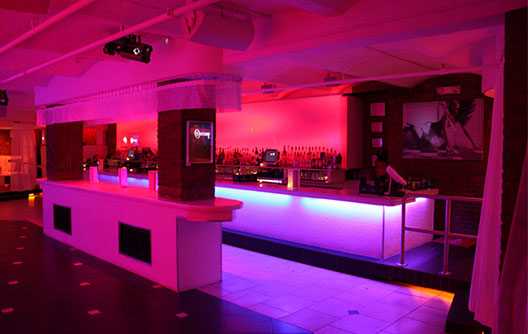

Application:
Cove Lighting;
Decoration Light, such as Home, Hotel, clubs, shopping malls;
Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor;
Amusement park, theater and aircraft cabin mood lighting;
Applicable for automobile, boat and bicycle decoration;
DIY Decoration, whatever and wherever you like!
