LED Module-Mini LED Module

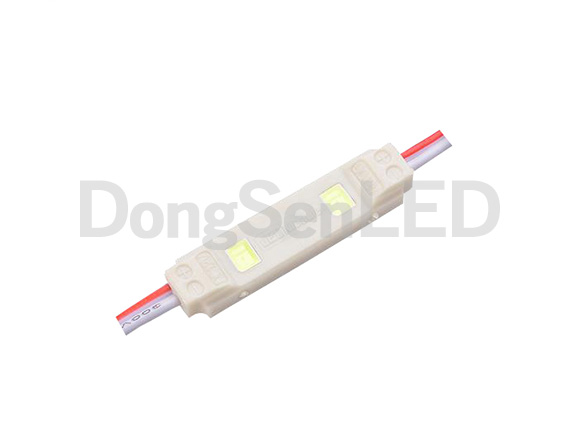

Model Mini LED Module 2835SMD 2LED 0.36W (P/N: MA-2W28S)
(P/N: MA-2W28S)
Inquiry NowFeature:
Mini Size designed for small letters.
High efficiency, over 94lm/W.
High Color consistency (MacAdam 3).
LM80 international certificate for LEDs.
Constant Voltage tech, 20 pcs per a chain.
Injection ABS shell, compact size and good protection.
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| Part No. | MA-2W28S | ||
| Voltage (V) | DC12V | ||
| Power (W/pc) | 0.36 W | ||
| Available Color | White / Red / Green / Blue / Yellow | ||
| Lumen/pc | 32-36 LM | ||
|
Color Temperature Wave length (k/nm) |
2700-11,000k/ 620-625nm/ 515-525nm/ 465-475nm/ 585-595nm | ||
| LED Type | 2835 SMD | ||
| LED Qty | 2led/pc | ||
| Chip Brand | Epistar | ||
| Viewing angle | 120 degree | ||
| Shell | Fire proof ABS | ||
| Driving Method | Constant Voltage Drive | ||
| Standard QTY per Chain(pcs) | 20 pcs | ||
| Working Temperature | -25°C~60°C | ||
| Dimension | 28*07*4.6 mm | ||
| IP Rate | IP 65 | ||
| Span life | 50,000h | ||
| Certification | CE&ROHS | ||
| Warranty | 3 Years | ||

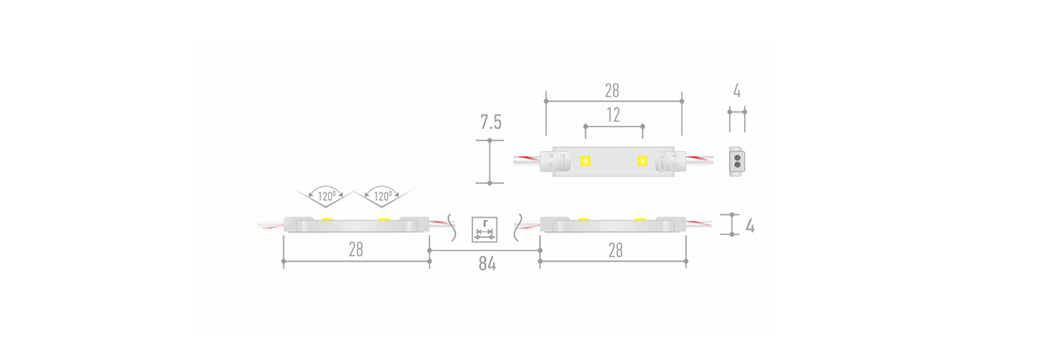

Dimension(mm):

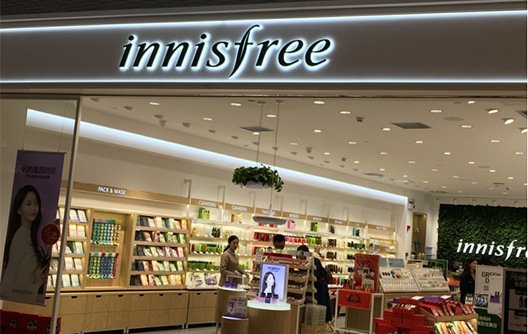

Application:
Best solution for channel letters & acrylic letters from 25mm to 60mm (1 to 2.4 inch)
