LED Module-Mini LED Module

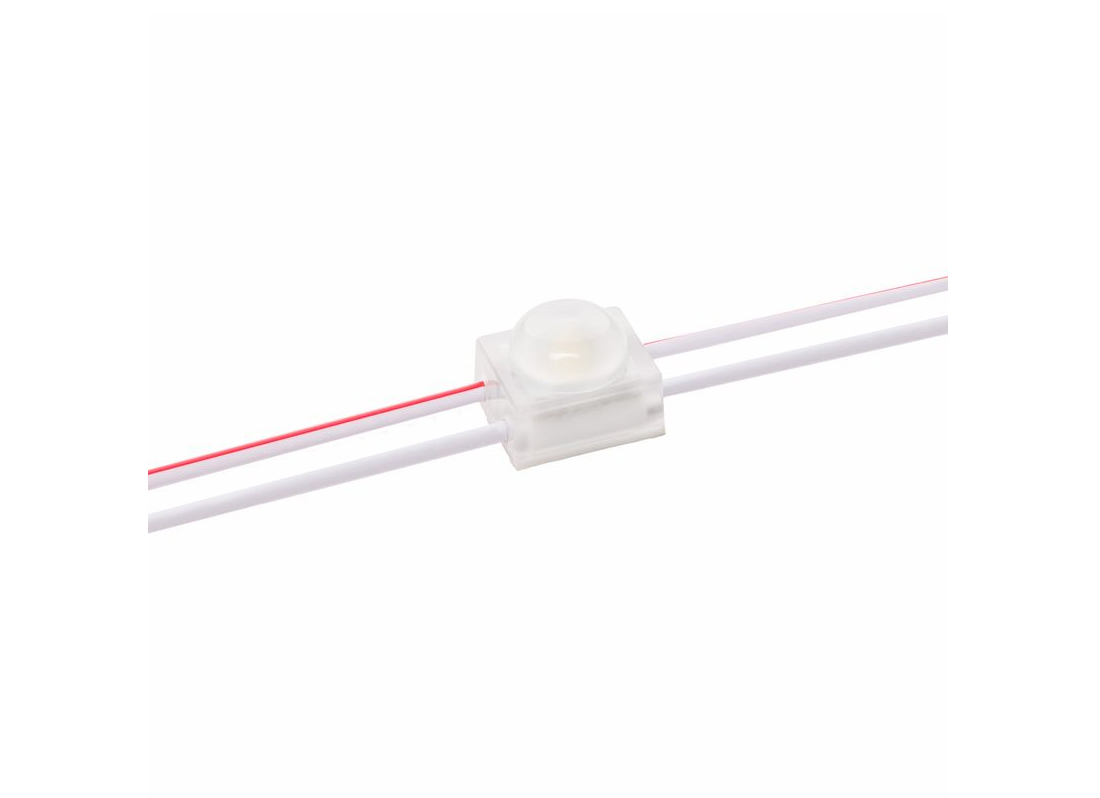

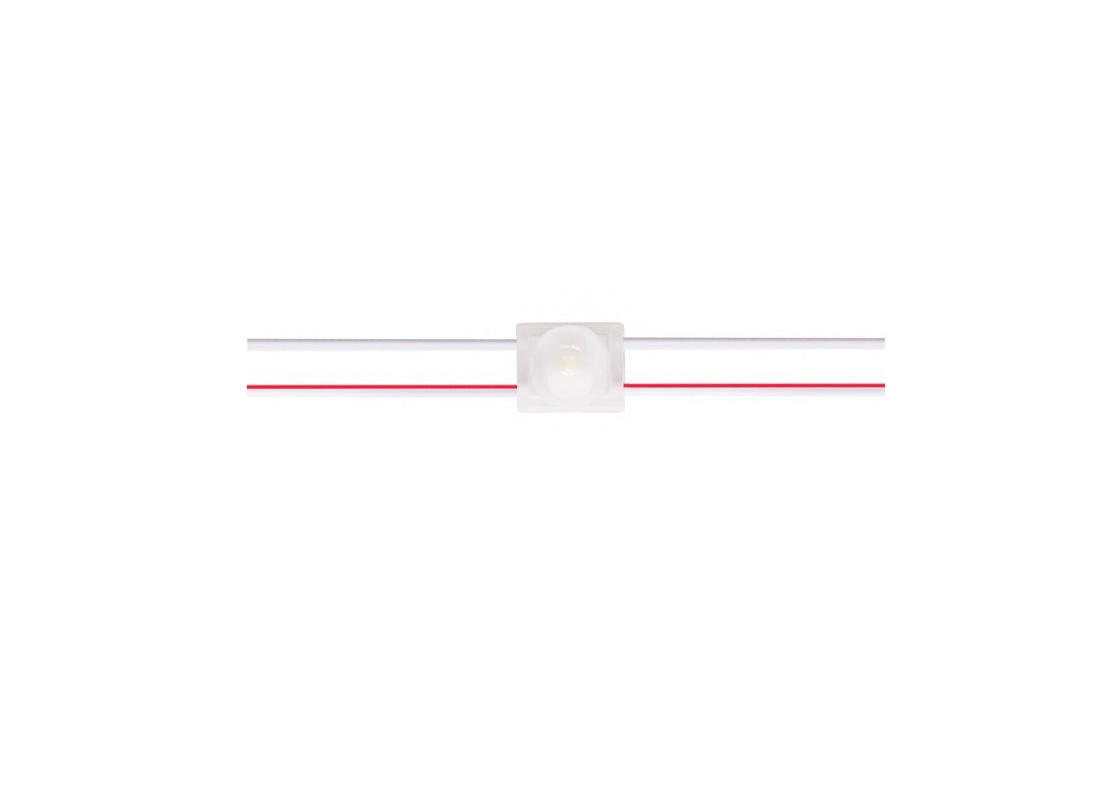

Model Mini LED Module MU-1W28S

(P/N: MU-1W28S)

Inquiry Now

Feature:

1. Mini Size designed for small letters.

2. High efficiency, over 93lm/W.

3. High Color consistency (MacAdam 3).

4. Constant Voltage tech, 50 pcs per a chain.

5. 160° degree beam angle.

6. Injection molding process, IP67.

Technical Parameters:

Part No. MU-1W28S
Voltage (V) DC12V
Power (W/pc) 0.36 W/pc
Available Color Warm White/ Pure White/ Cool White
Lumen/pc 30-34 LM
Color Temperature 2700-3000k/ 6000-6500k/ 9000-12,000k
LED Type 9V 2835 LED
LED Qty 1 led/pc
Chip Brand Epistar
Viewing angle 160 degree
Shell Fire proof ABS+Optical Lens
Driving Method Constant Voltage Drive
Standard QTY per Chain(pcs) 50 pcs
Working Temperature -25°C~60°C
Dimension 15.3*10.3*7.8 mm
IP Rate IP 67
Span life 50,000h
Certification CE&ROHS
Warranty 3 Years

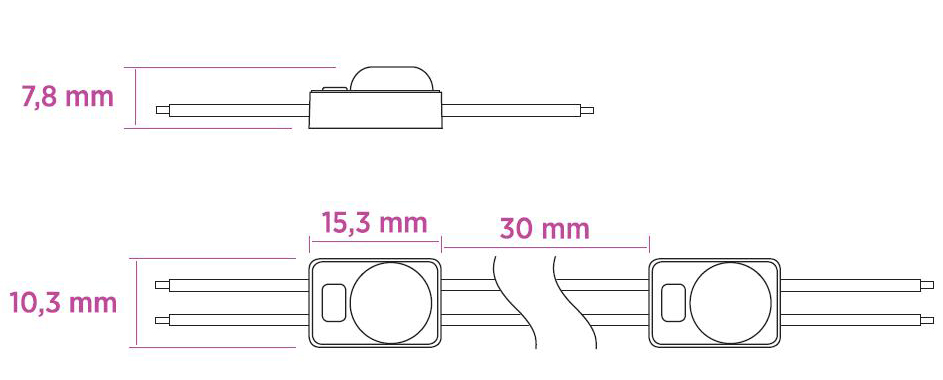

Dimension(mm) :

Dimension

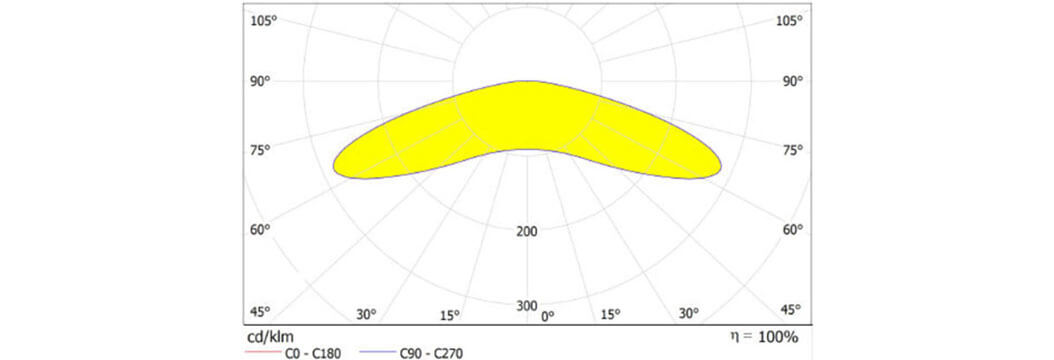

Light Distribution Curve:

Dimension

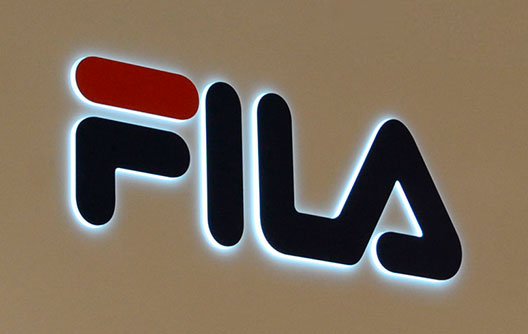

Application:

1. Best solution for channel letters & acrylic letters from 25mm to 60mm (1 to 2.4 inch)
