Home > Products > Flexible LED Strip > 3528 SMD Flexible LED Strip > DC12v 3528 flexible led ribbon 9.6watt silicon sealed IP65 TF08-120G35

Flexible LED Strip-3528 SMD Flexible LED Strip

Model DC12v 3528 flexible led ribbon 9.6watt silicon sealed IP65 TF08-120G35

(P/N: TF08-120G35)

Feature:

High brightness, Top 3528 led mounted, 7 lumen/led. 120 LED/m, 5 m/roll, Original Epistar chip from Taiwan;

Low brightness decay and high color consistency;

Double Layer PCB, white color, both 5mm and 8mm width PCB for your choice;

Slight voltage drop, Good light uniform;

Minimal heat generation;

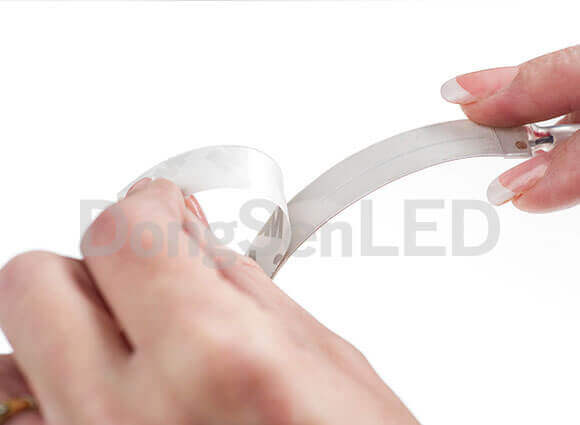

3M self-adhesive tape in the back, easy installation;

5mm, 8mm width PCB, white color and yellow color PCB are all available;

Silicon sealed, IP65, could be used outdoor;

LED quantity & strip length can be customized.

Technical Parameters:

Parameter	Description
Voltage (V)	DC12V/ DC24V
Power (W)	9.6 W/m,48 W/roll
Available Color	White	Red	Green	Blue	Yellow
Lumen/m	840	252	390	103	168
LED Type	3528 SMD LED
LED Qty	120 led/m, 600 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree
Cuttable Unit	25mm or 3 LED
Dimension	50000804 mm
IP Rate	IP65
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Part No.	TF08-120W35	TF08-120R35	TF08-120G35	TF08-120B35	TF08-120Y35

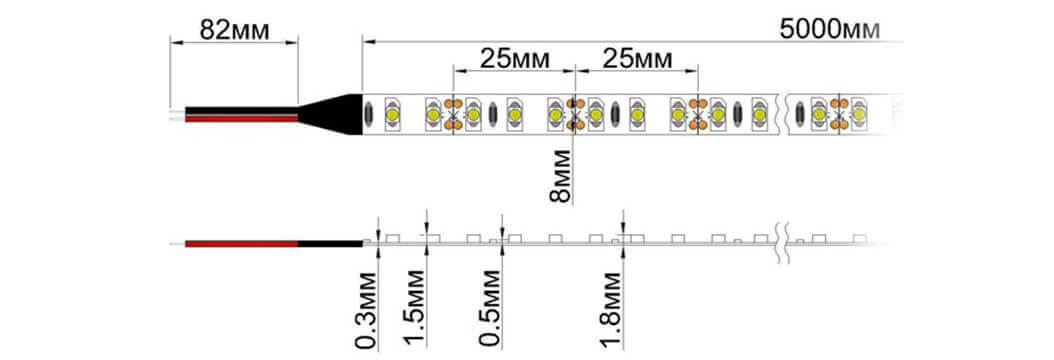

Dimension(mm):

Dimension

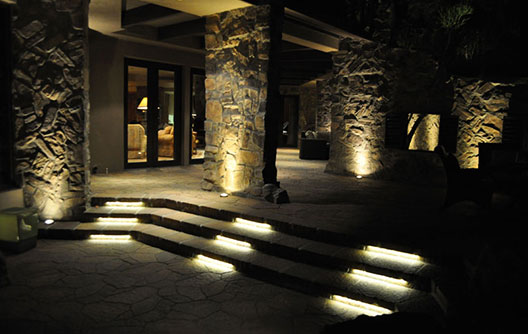

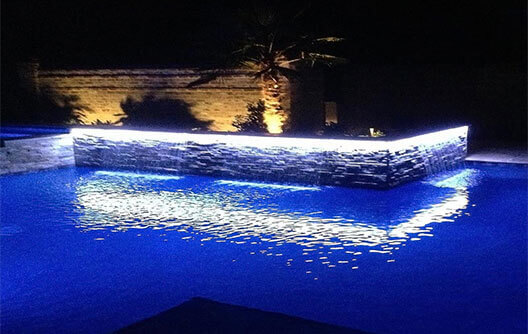

Application:

Cove lighting;

Architectural lights for canopy, corridor, window, archway;

Backlight or edge lighting for signage;

decoration for the hotel;

Path and contour marking;

Decorative lights for holiday, event, show, exhibition.
