Home > Products > Flexible LED Strip > 3528 SMD Flexible LED Strip > IP68 3528 flexible led strip for cove lighting TF08-120W35P8

Flexible LED Strip-3528 SMD Flexible LED Strip

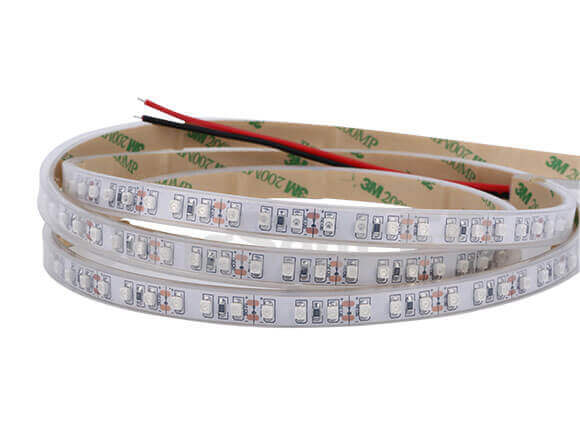

Model IP68 3528 flexible led strip for cove lighting TF08-120W35P8

(P/N: TF08-120W35P8)

Feature:

Adopts SMD3528 LED as its light source, High brightness, CRI>80, 7 lm/led;

The strip are put into the Silicon tube and injected with silicon gel, that offers double protection guaranteeing maximum waterproof (IP 68) levels;

3 LED as a unit could be cuttable, 5 meter per reel;

Protection Rating IP68, can be used under water;

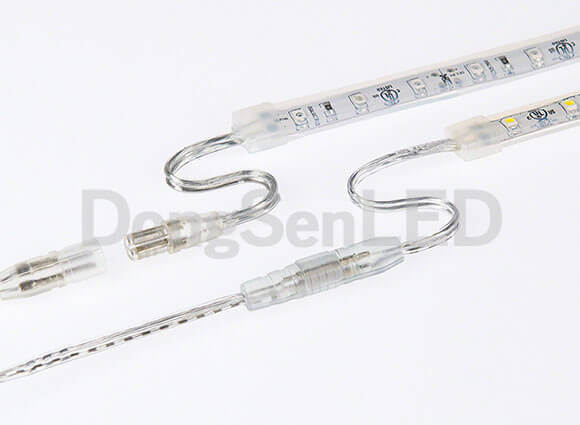

Easy install, with transparent silicon clips, and waterproof connector on both side;

White/red/green/blue/yellow color available.

Technical Parameters:

Parameter	Description
Voltage (V)	DC12V/ DC24V
Power (W)	9.6 W/m,48 W/roll
Available Color	White	Red	Green	Blue	Yellow
Lumen/m	840	252	390	103	168
LED Type	3528 SMD LED
LED Qty	120 led/m, 600 led/roll
Chip Brand	Epistar Chip from Taiwan
Viewing angle	120 degree
Cuttable Unit	25mm or 3 LED
Dimension	50001004 mm
IP Rate	IP68
Working Temperature	-40°C~60°C
Storage Temperature	-50°C~80°C
PCB	Double Layer, Color-White
Span life	50,000h
Certification	CE&ROHS
Part No.	TF08-120W35P8	TF08-120R35P8	TF08-120G35P8	TF08-120B35P8	TF08-120Y35P8

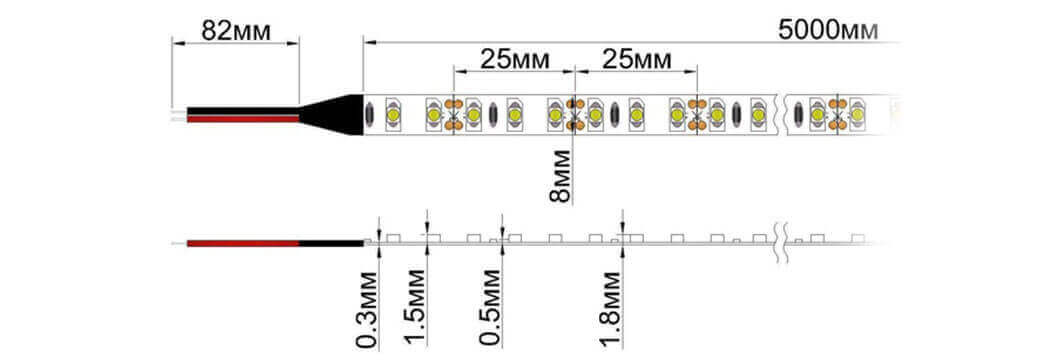

Dimension(mm):

Dimension

Application:

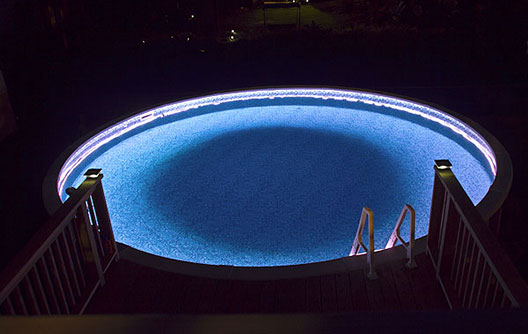

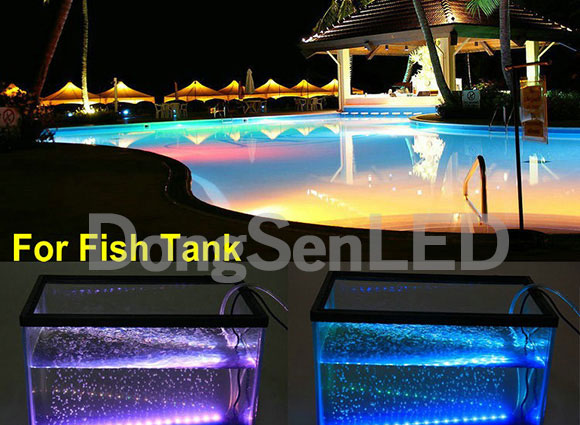

Swimming pool, boat decoration;

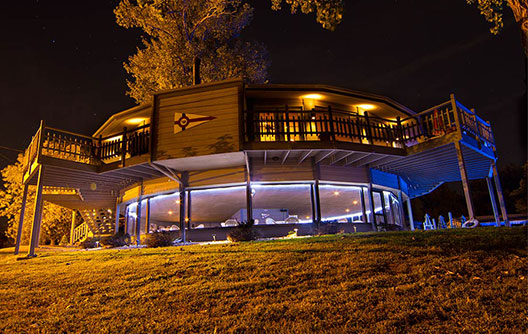

Outdoor Cove lighting;

Architectural lights for canopy, corridor, window, archway;

Outdoor decoration, stairs, street, ect;

backlighting for the signage and light box.
