LED Module-Bat-wing Lens LED Module 160°

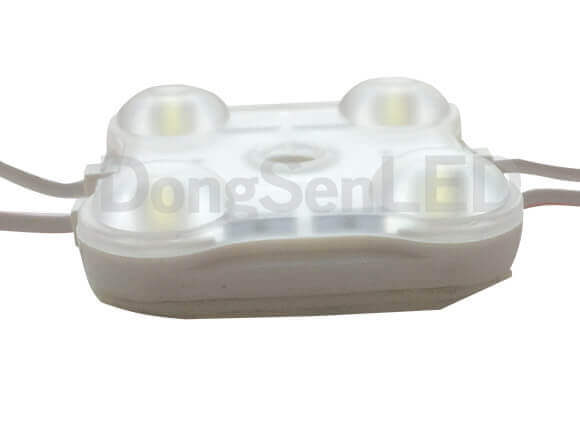

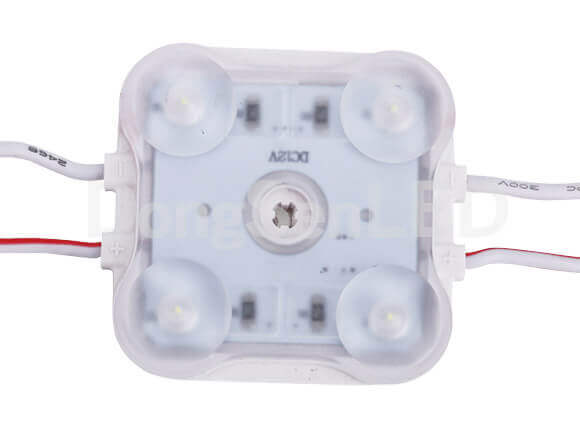

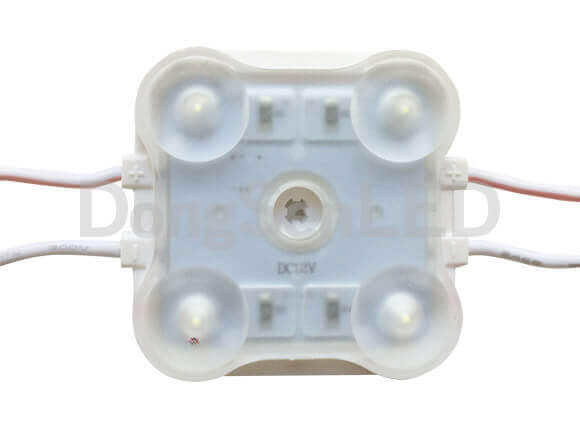

Model Constant current 2835 inject led module with lens 4led IP67 MHS-4W28
(P/N: MHS-4W28)
Inquiry NowFeature:
Best for Illumination of medium-big depth channel letter and lighting box;
High Efficiency 2835 LED, 190 lumen/module;
160º Bat-Wing Optics Design;
Excellent Color uniform (MacAdam 4);
Best for Budge solution;
Injection mold process, Waterproof rate: IP67;

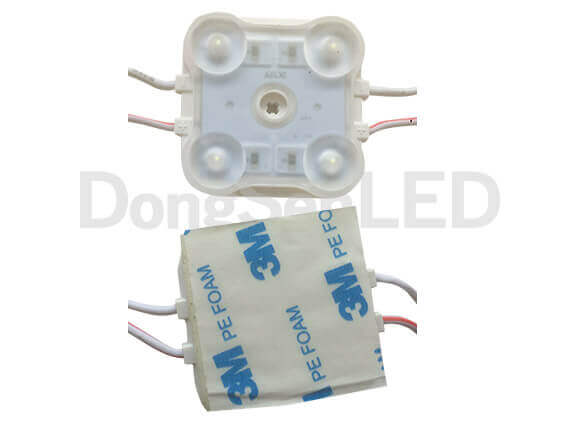

Strong 3M VHB tape adhesive, faster installation;
CE&ROHS certification, 5 years warranty.
Technical Parameters:
| Parameter | Description |
|---|---|
| Part No. | MHS-4W28 |
| Power (W) | 2W |
| Available Color | Warm White/ Pure White/ Cool White |
| Color Temperature Wave length (nm) | 2700-9000k |
| Lumen | 190 Lumen |
| Viewing angle | 160 degree |
| LED Qty | 4 led/pc |
| LED Type | 2835 SMD LED |
| Chip Brand | Epistar Chip from Taiwan |
| Drive Method | Constant Current Drive |
| Standard QTY per Chain(pcs) | 20 pcs |
| Dimension | 42*42*9.2 mm |
| IP Rate | IP 67 |
| Shell | Fire proof ABS+Optical Lens |
| Working Temperature | -25°C~60°C |
| Span life | 50,000h |
| Certification | CE&ROHS |
| Voltage (V) | DC12V |
| Warranty | 5 Years |

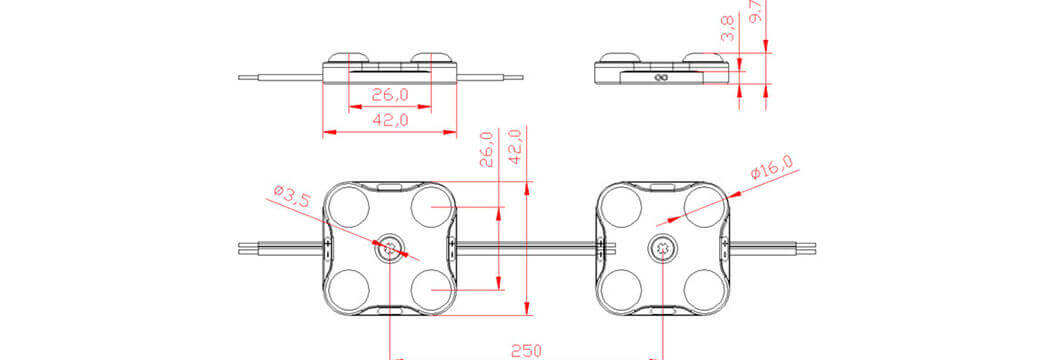

Dimension(mm):

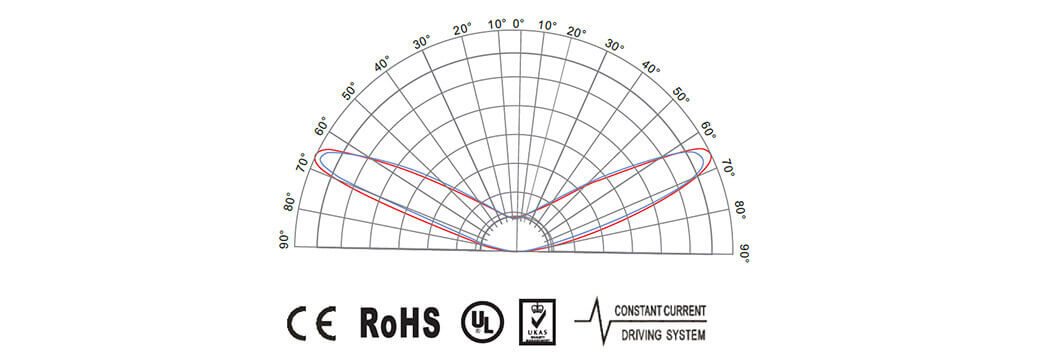

LED Module Light distribution:

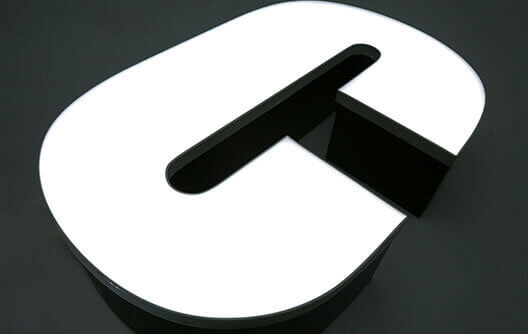

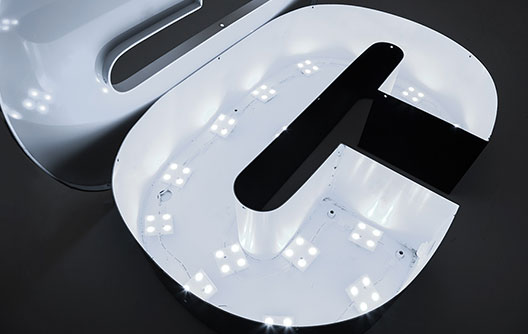

Application:
Huge Channel letter from 180mm depth;
Super Bright LED Signage;
High Brightness single side lighting box from 200mm depth.
