LED Module-Injection LED Module With Lens

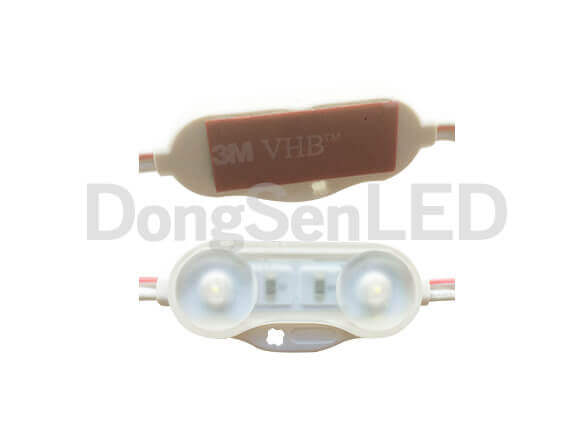

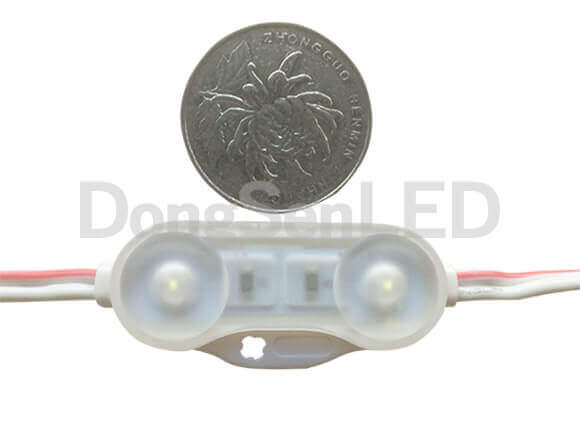

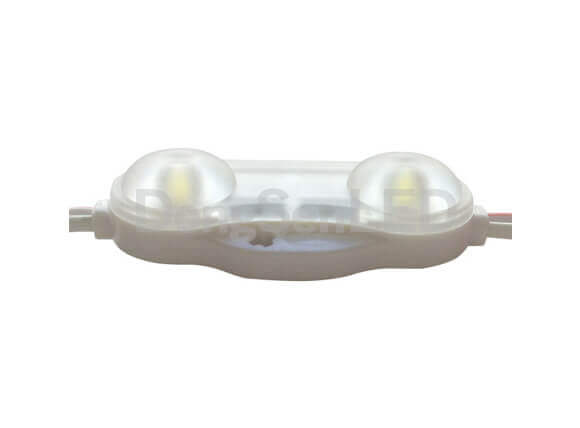

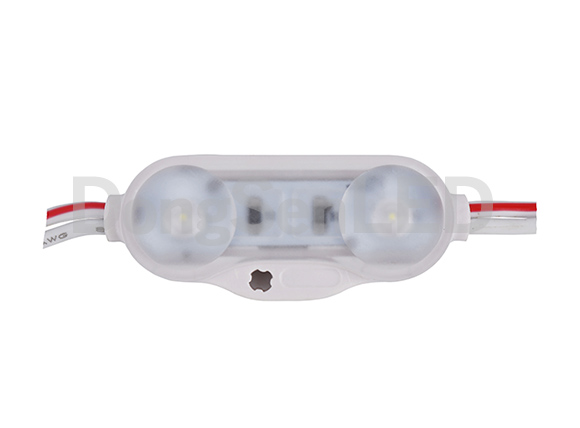

Model High brightness 2835 inject led module with lens 1 watt MHS-2W28

(P/N: MHS-2W28)

Inquiry Now

Feature:

Best for the 80-150mm depth signage and lighting box;

High Efficiency 2835 LED, 95 lumen/module;

160º Bat-Wing Optics Design;

High Color consistency (MacAdam 4);

Injection mold process, Waterproof rate: IP67;

Long life, Maintenance free;

Flexible Chain, each module cuttable.

Technical Parameters:

Parameter Description
Voltage (V) DC12V
Power (W) 1W
Available Color Warm White/ Pure White/ Cool White
Color Temperature Wave length (nm) 2700-11.000k
Lumen 95 Lumen
Viewing angle 160 degree
LED Qty 2 led/pc
LED Type 2835 SMD LED
Chip Brand Epistar Chip from Taiwan
Drive Method Constant Current Drive
Max Connection 20 pcs
Dimension 42*18.5*9.2 mm
IP Rate IP 67
Shell Fire proof ABS+Optical Lens
Working Temperature -40°C~60°C
Span life 50,000h
Certification CE&ROHS
Part No. MHS-2W28
Warranty 5 Years

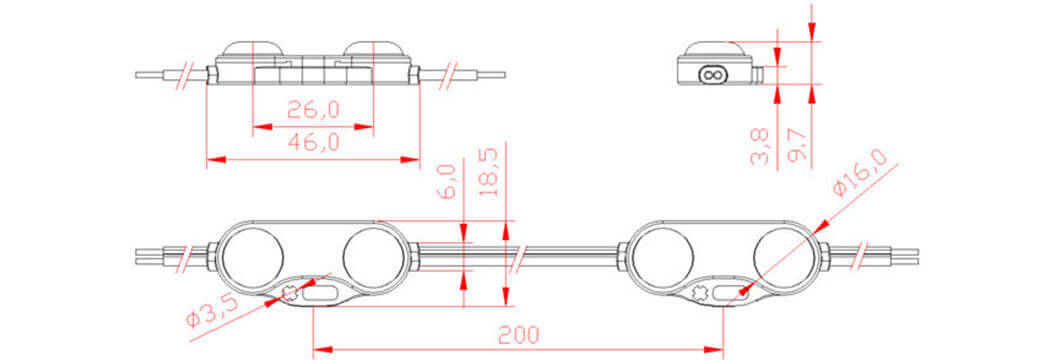

Dimension(mm):

Dimension

LED Module Light distribution:

Dimension

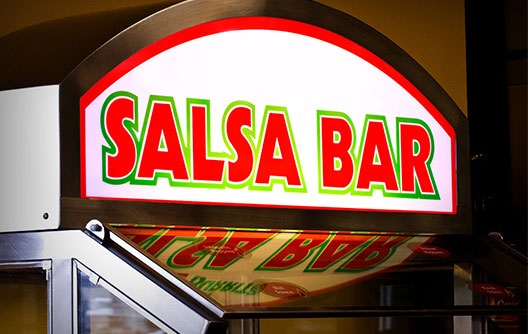

Application:

Best for the 80-150mm depth Channel letter and lighting box;

Medium size Illuminate signage and logo;
