LED Module-Bat-wing Lens LED Module 160°

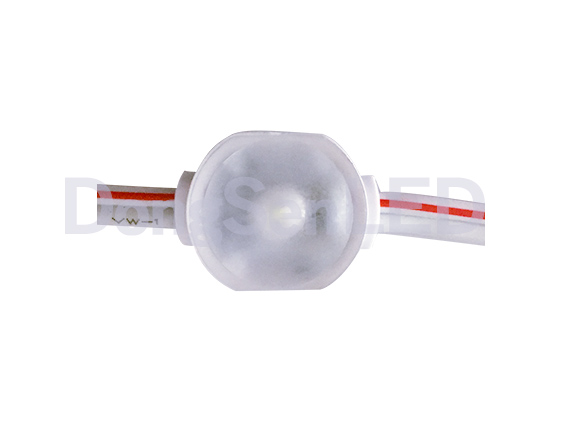

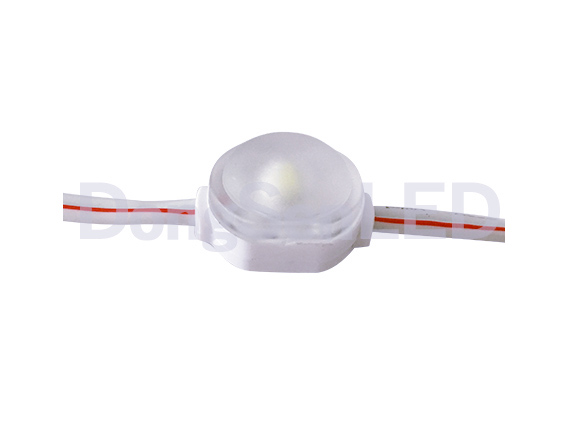

Model 1 led OSRAM LED Module CRI>80 (P/N: MHS-1W28)
(P/N: MHS-1W28)
Inquiry NowFeature:
High Efficiency 2835 LED, Up to 98lm/W
Special polycarbonate lens with light transmittance > 88%
High Color consistency (MacAdam 3), Each family one bin
LM80 international certificate for LEDs
High protection level of IP67
Light decay < 30% after 50,000 hrs
5 years Warranty
Technical Parameters:
| Parameter | Description | ||
|---|---|---|---|
| Part No. | MHS-1W28 | ||
| Voltage (V) | DC12V | ||
| Power (W/pc) | 0.5 W | ||
| Available Color | Warm White/ White/ Cool White | ||
| Lumen/pc | 47LM | ||
| CRI | >80 | ||
|
Color Temperature Wave length (k/nm) |
2700-11,000k | ||
| LED Type | 9V 2835 SMD led | ||
| LED Qty | 1led/pc | ||
| Chip Brand | Epistar&OSRAM | ||
| Viewing angle | 160 degree | ||
| Shell | Fire proof ABS+Optical Lens | ||
| Driving Method | Constant Voltage Drive | ||
| Standard QTY per Chain(pcs) | 20 pcs | ||
| Working Temperature | -25°C~60°C | ||
| Dimension | 19*14*9.2 mm | ||
| IP Rate | IP 67 | ||
| Span life | 50,000h | ||
| Certification | CE&ROHS | ||
| Warranty | 5 Years | ||

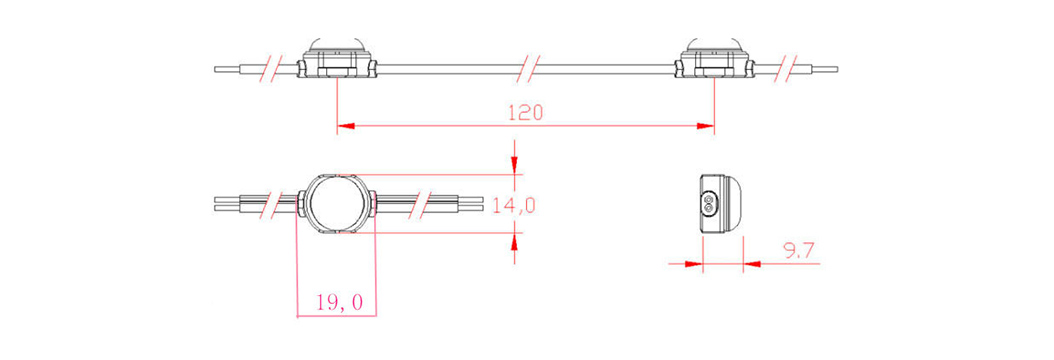

Dimension(mm):

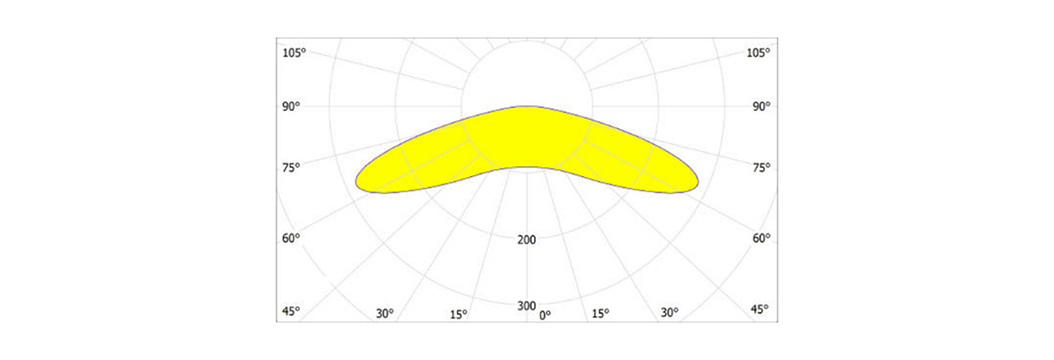

LED Module Light distribution:

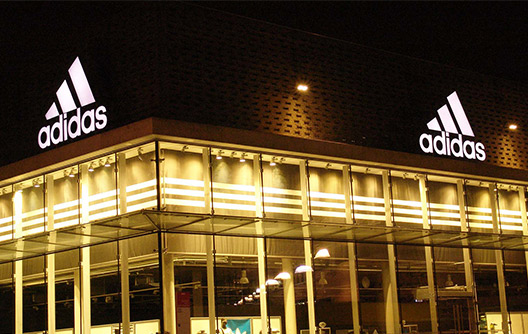

Application:
Middle Size Channel letters signs and light boxes
Recommended depth 60 – 100 mm
