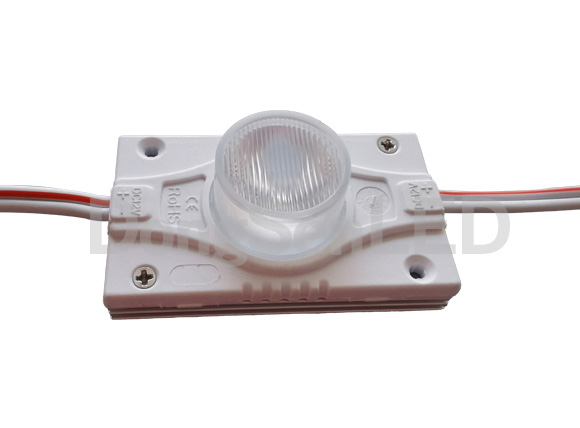

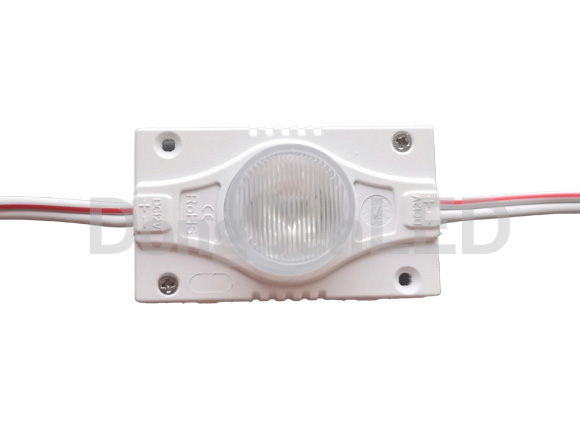

Model 3W Edge light LED Module with Heat Sink 15x55°
(P/N: MH-3W-AL)
Inquiry NowFeature:
1. Lit by Edision 9V 3535 LED, 3 Watt, 240 lumen per module.
2. 15*55° asymmetric optics design.

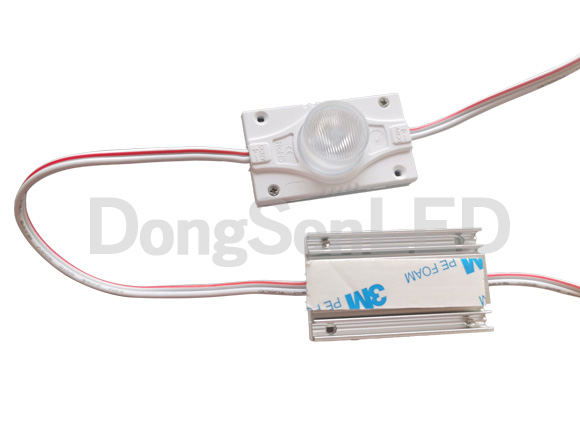

3. Aluminum Heat sink design, perfect heat dissipation.
4. Suitable for Up to 3m high large lighting box.
5. LM80 international certificate for LEDs.
6. Constant currect tech, every single module cuttable.
7. Light decay < 30% after 50,000 hrs.
8. 5 years Warranty.
Technical Parameters:
| Parameter | Description | ||||||
|---|---|---|---|---|---|---|---|
| Part No. | MH-3W-AL | ||||||
| Voltage (V) | DC12V | ||||||
| Power (W) | 3W | ||||||
| Current | 250mA | ||||||
| Light Output per module | 240lm | ||||||
| CRI | >80 | ||||||
| Color | Pure White | ||||||
| Color Temperature | 6500k | ||||||
| LED Type | 9V 3535 SMD | ||||||
| LED Qty | 1 LED/pc | ||||||
| Chip Brand | EDISION | ||||||
| Beam Angle | 15*55 °degree | ||||||
| Dimmable | Yes | ||||||
| Demension(L x W x D) | 57*33*20.7mm | ||||||
| Cable Length | 200 ± 5 mm | ||||||
| Chain Length | 4 m | ||||||
| No. of module per Chain | 20pcs | ||||||
| Operating temperature | -25°C~55°C | ||||||
| Life Span | 50,000hrs | ||||||
| IP Rate | IP67 | ||||||
| Certification | CE and RoHS compliant | ||||||
| Warranty | 5 Years | ||||||
Packing Infomation:
| Chain | Bag | Box | |||||
|---|---|---|---|---|---|---|---|
| Quantity | 20pcs | 40 pcs | 360 pcs | ||||
| Gross Weight | 0.8kg | 1.6kg | 14.4 kg | ||||
| Carton Szie | 52*37*26cm | ||||||

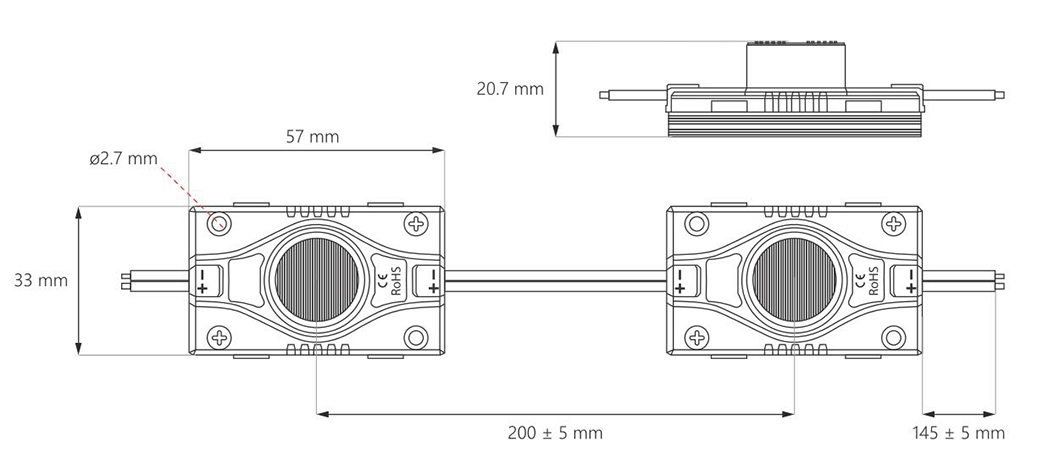

Dimension(mm) :

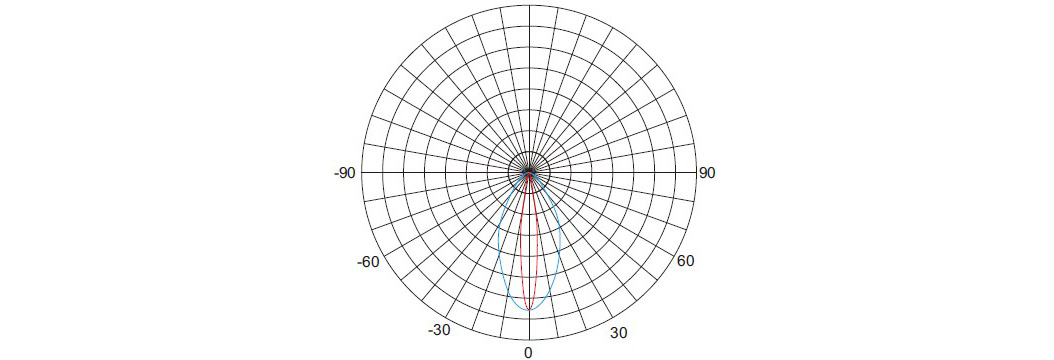

LED Module Light distribution:

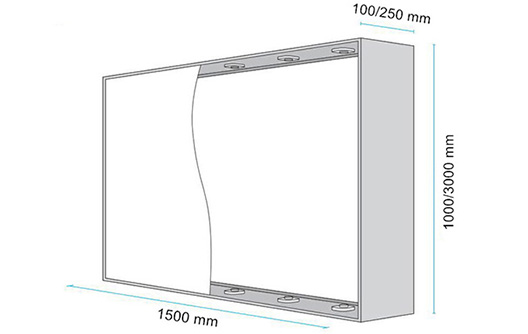

Application:
1. Large Lighting box single and Double sides.
2. Recommended depth 100 – 250 mm.
