LED Module-Edge lit Light Box LED Module

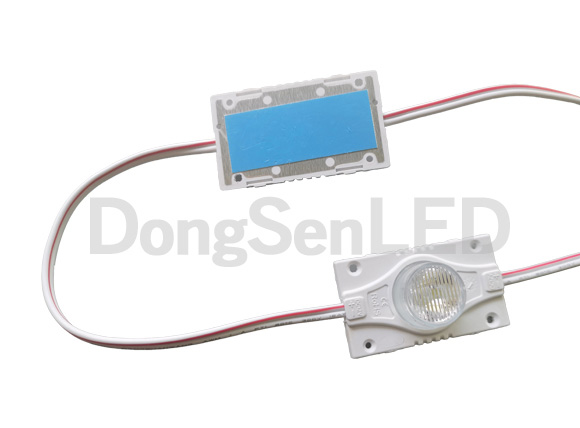

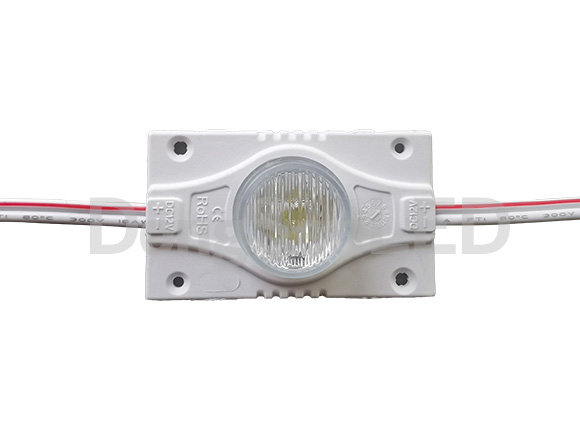

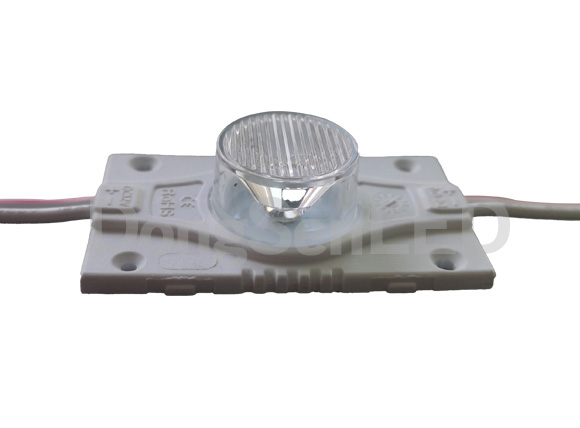

Model 3W High Power Edge light LED Module 15x55°
(P/N: MH-3W)
Inquiry NowFeature:
1. Lit by Edison led, 3W/Module, 240lm.
2. For Edge-Lit applications with up to 3.5m throw.
3. LM80 international certificate for LEDs.
4. Constant currect tech, every single module cuttable.
5. Light decay < 30% after 50,000 hrs.
6. 5 years Warranty.
Technical Parameters:
| Parameter | Description | ||||||
|---|---|---|---|---|---|---|---|
| Part No. | MH-3W | ||||||
| Voltage (V) | DC12V | ||||||
| Power (W) | 3W | ||||||
| Current | 250mA | ||||||
| Light Output per module | 240lm | ||||||
| CRI | >80 | ||||||
| Color | Pure White | ||||||
| Color Temperature | 6500k | ||||||
| LED Type | 9V 3535 SMD | ||||||
| LED Qty | 1 LED/pc | ||||||
| Chip Brand | EDISION | ||||||
| Beam Angle | 15*55 °degree | ||||||
| Dimmable | Yes | ||||||
| Demension(L x W x D) | 57*33*20.7mm | ||||||
| Cable Length | 200 ± 5 mm | ||||||
| Chain Length | 4 m | ||||||
| No. of module per Chain | 20pcs | ||||||
| Operating temperature | -25°C~55°C | ||||||
| Life Span | 50,000hrs | ||||||
| IP Rate | IP67 | ||||||
| Certification | CE and RoHS compliant | ||||||
| Warranty | 5 Years | ||||||
Packing Infomation:
| Chain | Bag | Box | |||||
|---|---|---|---|---|---|---|---|
| Quantity | 20pcs | 60 pcs | 840 pcs | ||||
| Gross Weight | 0.4kg | 01.2kg | 16.8 kg | ||||
| Carton Szie | 52*37*26cm | ||||||

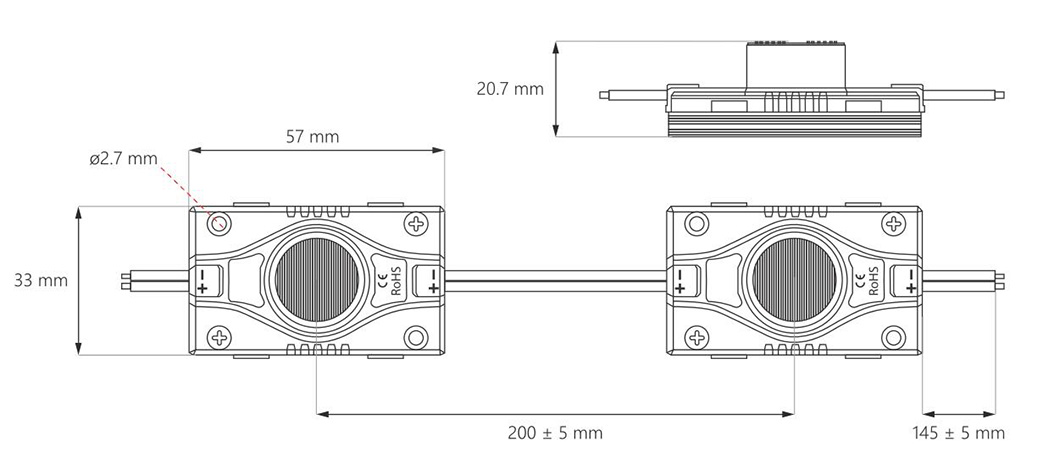

Dimension(mm) :

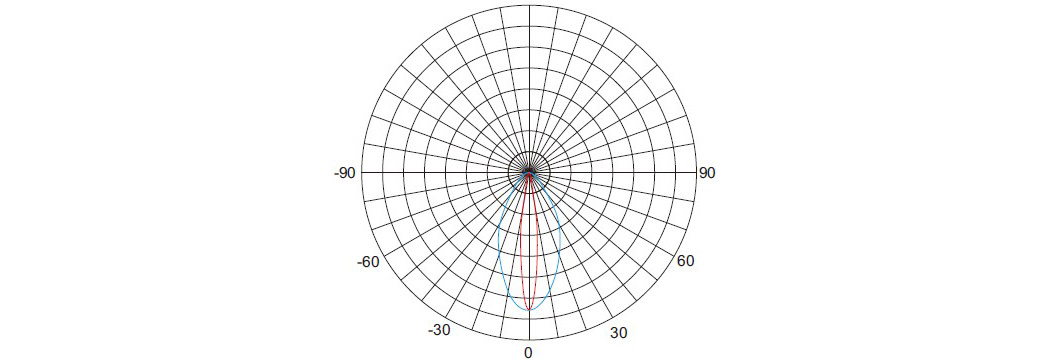

LED Module Light distribution:

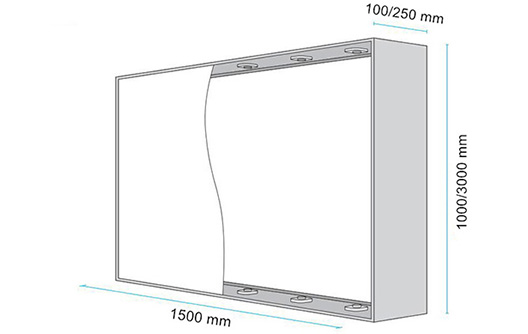

Application:
1. Large Lighting box single and Double sides.
2. Recommended depth 100 – 250 mm.
