Home > Products > LED Controller&LED Dimmer > LED Dimmer > RF LED Dimmer for Single Color led light DS- Z100-SYNCDIM-14K
LED Controller&LED Dimmer-LED Dimmer
Model RF LED Dimmer for Single Color led light DS- Z100-SYNCDIM-14K
(P/N: DS- Z100-SYNCDIM-14K)
Inquiry NowFeature:
Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free;
Adopt RF remote control, transmission Distance up to 20m，no need line-of-sight;
Easy connection to achieve multiple dimmers sync-work by RJ45 terminal;
3-year warranty.
Technical Parameters:
| Parameter | Description |
|---|---|
| Working temperature | -20-60℃ |
| Working voltage | DC12V~24V |
| External dimension | L127*W41*H32 (mm) |
| Packing size | L147*W85*H73 (mm) |
| Net weight | 180g |
| Gross weight | 210g |
| Output gray | 256 levels |
| Max. Output current | 25A(1channel) |
| Max. Output power | 300W |
| Frequency of RF remote control | 433.9MHz |
| RF remote range: | 20M |

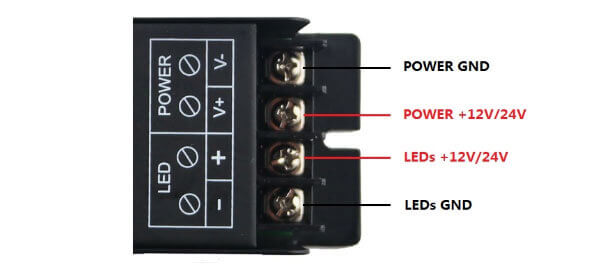

Interface Specifications
Direction for use

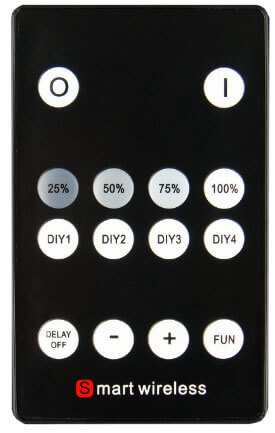

Adopts RF 14-key remote control, intuitive panel allowing intelligent lighting with brilliant simplicity.
The function of each button as below:
| OFF | ON | ||
| 25% level | 50% level | 75% level | 100% level |
| Scene 1 | Scene 2 | Scene 3 | Scene 4 |
| Delay Off 30's | Brightness/Speed- | Brightness/Speed+ | Dynamic mode |
Typical Applications

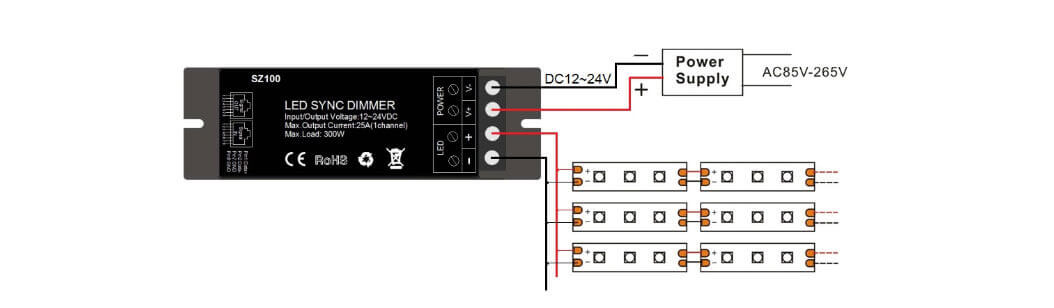

Conjunction Diagram:

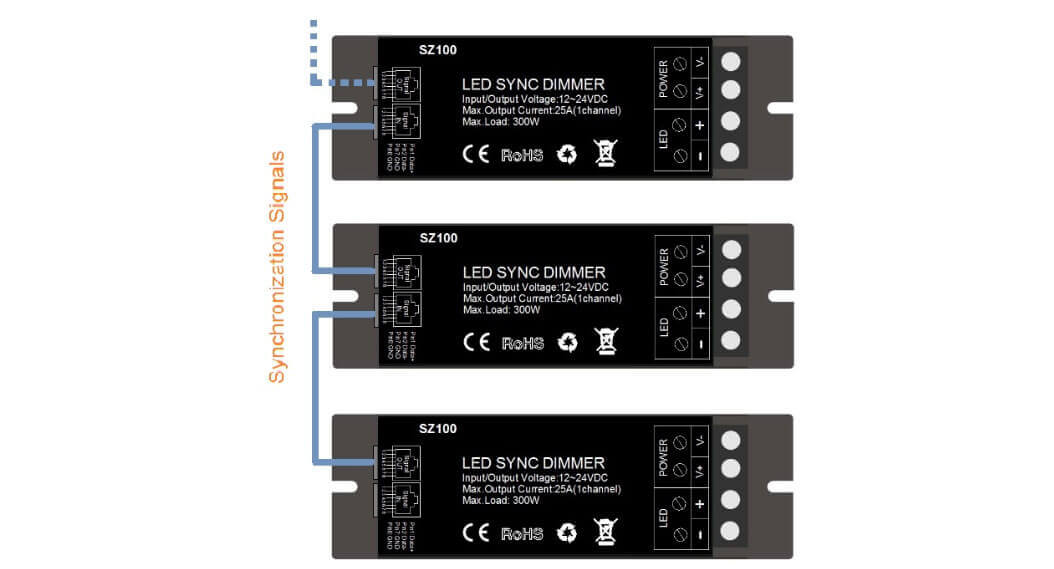

Application Diagram:
