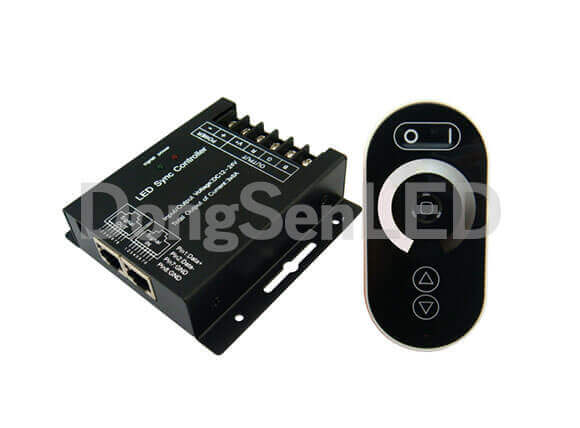

Model RF led touch dimmer DS-SZ600-DIM

(P/N: DS-SZ600-DIM)

Adopt PWM technology, dimming from 0% to 100%, smooth and flicker-free;

PWM signal frequency:2KHz;

High watt output design, up to 288W/12V. Three channels output, each maximum current is 8A;

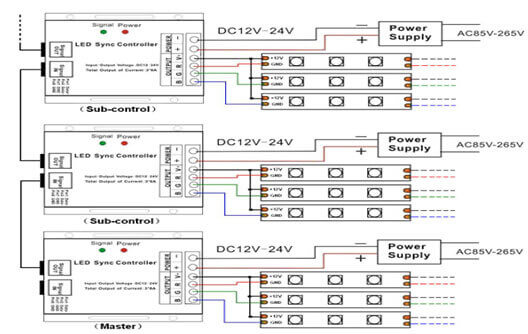

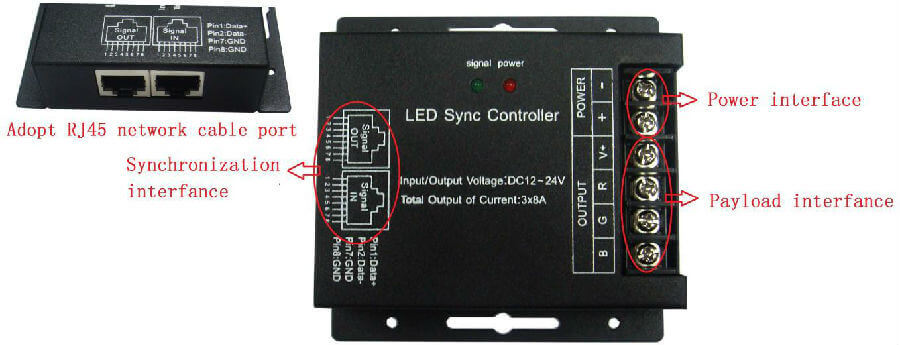

Easy connection to achieve multiple dimmers sync-work by RJ45 terminal;

Adopt RF remote control technology and full touch design;

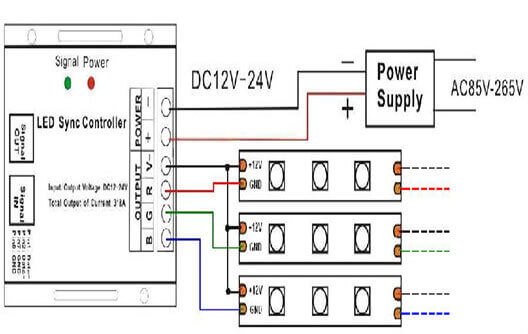

Designing for: LED constant voltage single color product like LED single color strip.

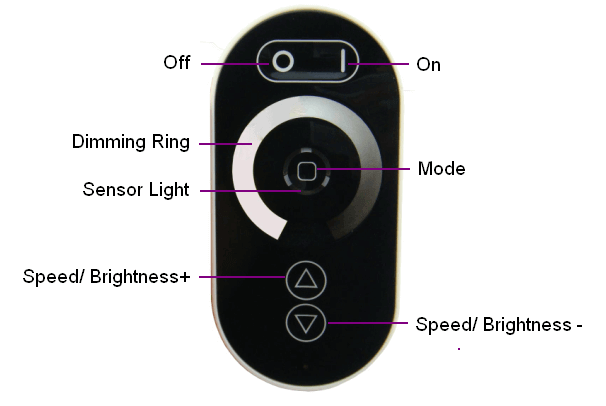

Adopts RF full touch control, with one dimming ring and 5 function buttons.

Interface Specifications

Name of key	Instruction	Remarks
ON/OFF	ON or OFF in any time
Pause	Pause or Continue
Mode	The mode will move to next, when touch the key each time	3 modes in total.
Speed/Brightness +	The Speed/Brightness will +1, when touch the key each time	Speed for dynamic modes, Brightness for static modes.
Speed/Brightness -	The Speed/Brightness will -1, when touch the key each time	Speed for dynamic modes, Brightness for static modes.
Color Ring	Touch any color temperature which you want
