LED Module-Samsung LED Module

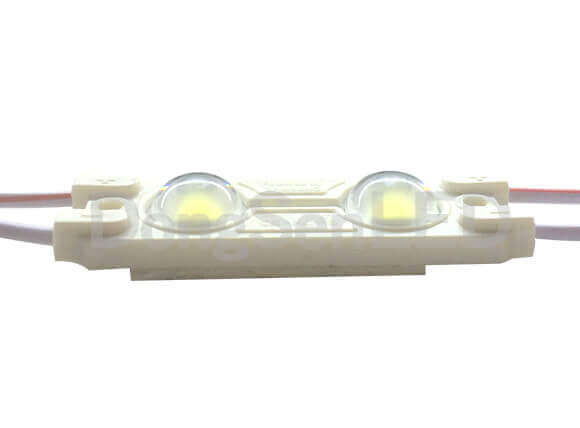

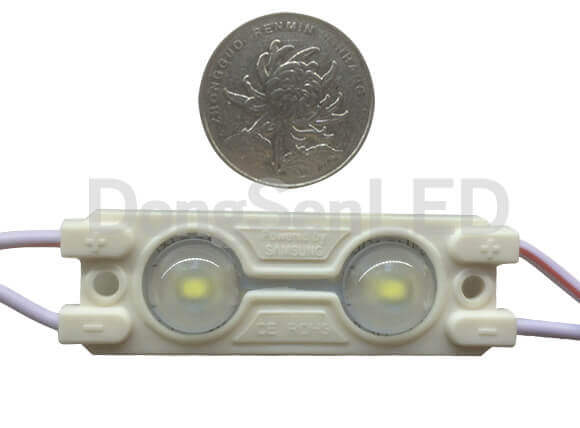

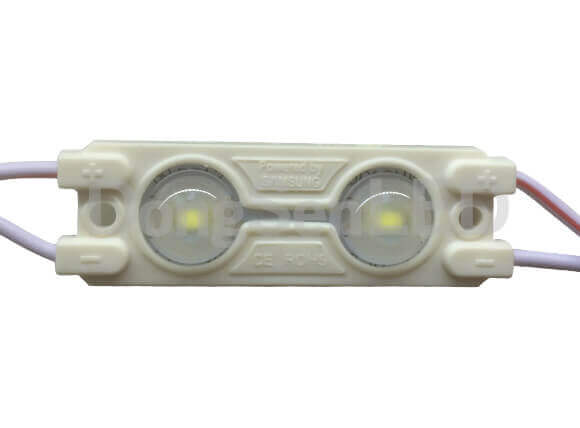

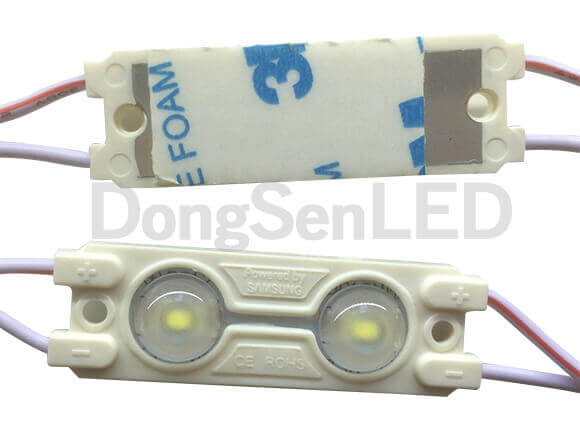

Model 2 led samsung 5630 injection led sign module with lens MSS-2W56

(P/N: MSS-2W56)

Inquiry Now

Feature:

High efficiency led, original Samsung 5630 led from korea;

Excellent color consistency;

160° Bat wing optical lens design;

Injection molding process,IP Rate:IP 67, waterproof;

Exposed Aluminum pcb design, perfect heat dissipation;

CE&ROHS Certification, 5 year Warranty.

Technical Parameters:

Parameter Description
Voltage (V) DC12V
Power (W) 0.9 W/pc
Current (mA) 80 mA/pc
Available Color White Red
Lumen 100 25
Color Temperature Wave length (k/nm) 2700-9000k 620-625nm
LED Type 5630 SMD LED
LED Qty 2 led/pc
Chip Brand SAMSUNG LED FROM KOREA
Viewing angle 160 degree
Shell ABS+Optical Lense cap
Standard QTY per Chain(pcs) 20 pcs
Driving Method Constant Current Drive
Dimension 44*15*6.8 mm
IP Rate IP67
Working Temperature -25°C~60°C
PCB Aluminum
Span life 50,000h
Certification CE&ROHS
Warranty 5 Years
Part No. MSS-2W56 MSS-2R56

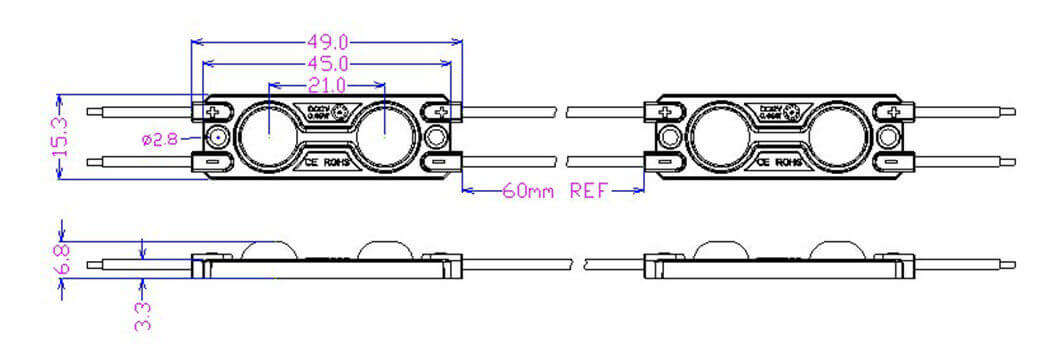

Dimension(mm):

Dimension

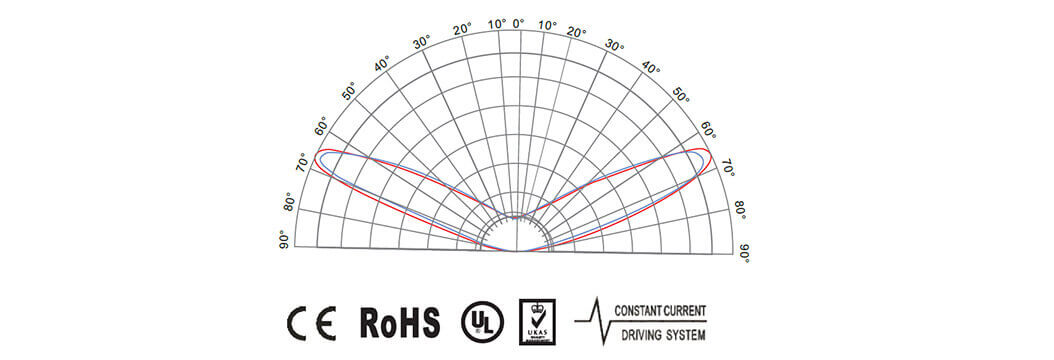

LED Module Light distribution:

Dimension

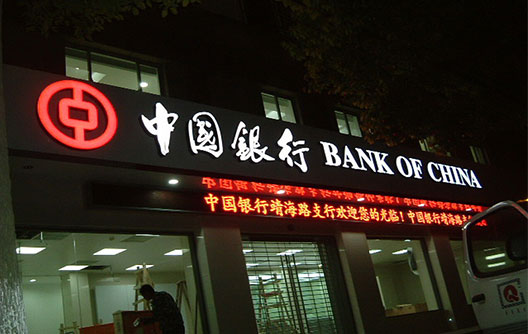

Application:

Ideal for 60-150mm depth Illuminate Signage and channel letter;

Logo, Glow sign board backlighting;

Lighting box lighting.
