LED Controller&LED Dimmer-LED Controller

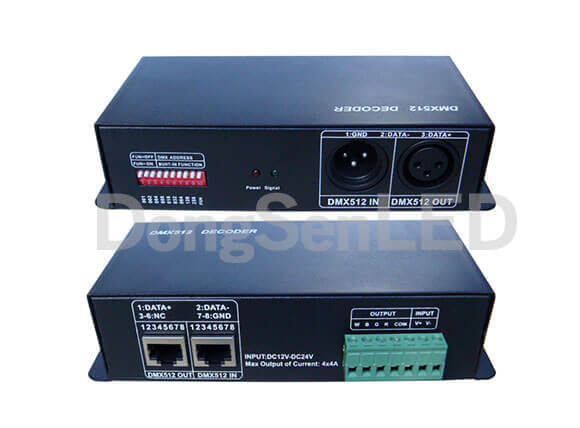

Model Dmx512 led decoder for RGBW led strip 4 channels DS-DMXBM-4CH

(P/N: DS-DMXBM-4CH)

Inquiry Now

Feature:

The DS-DMXBM-4CH is constant voltage decoder, accept international popular DMX512 standard digital control signal, convert it to the PWM signal to drive LED lamps, applicable to a variety of constant voltage LED lamps, such as RGB LED module, lights, string lights, etc;

4 Channels, Red-Blue-Green-White;

DMX or anto program selection via DIP switches;

CE&ROHS certificated.

Technical Parameters:

Parameter Description
Working temperature -20-60℃
Supply voltage DC12~24V
Output 4 channels
Connecting mode common anode
External dimension L164*W65*H40 mm
Packing size L183*W82*H60 mm
Net weight 360g
Gross weight 410g
Output gray RGB each 256 levels
Output current <4A(each channel)
Output power 12V:<192W,  24V:<384W

Dimension(mm):

Dimension
