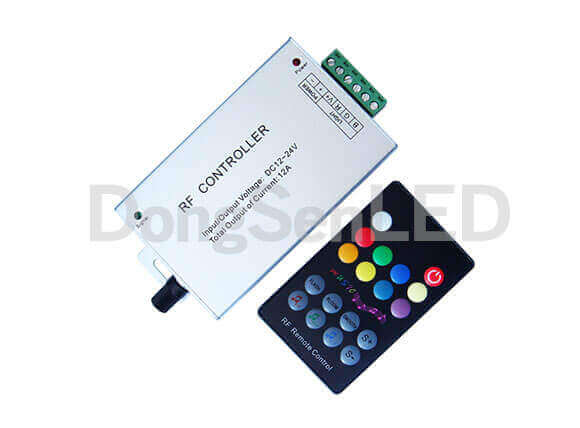

Model RF 18 key music led controller DS-RFL18A-AUDIO

(P/N: DS-RFL18A-AUDIO)

Feature:

RF 18Key Music LED Controller (DS-RFL18A-AUDIO) adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED;

For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use;

As the generation product, it achieve the perfect music control effect and user experience, basic on the audio analysis technology and more user-friendly remote control design;

Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, and other effects of change.

Technical Parameters:

Parameter	Description
Working temperature	-20-60℃
Supply voltage	DC12V~24V optional (specify the required voltage on orders)
Output	3 channels
Connecting mode	common anode/cathode optional (specify the required voltage on orders)
External dimension	L130W64H24 mm
Packing size	L137W80H54mm
Net weight	180g
Gross weight	210g
Static power consumption	<1W
Output current	<4A(each channel)
Output power	5V:<60W, 12V:<144W, 24V:<288W

Direction for use:

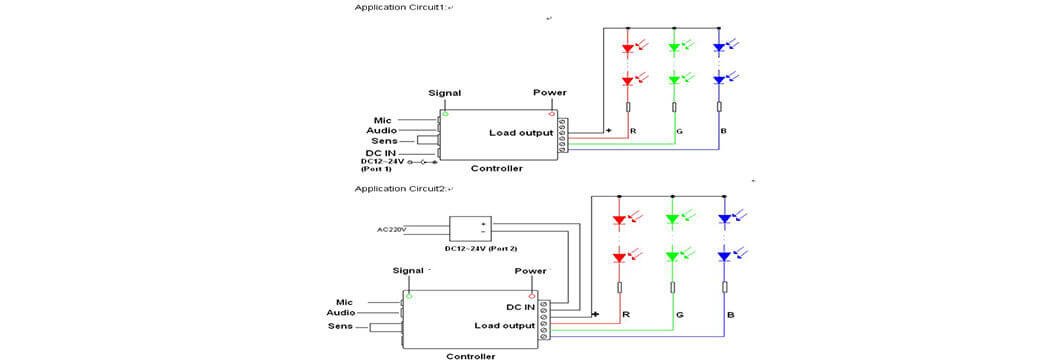

Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power;

Adopt wireless RF remote control method, 18 keys in total, function of each button as below:

Each press, the green light on the controller box flash one time, indicating that has entered the next state.

The function list of remote control as follows:

Static white(4 levels B)			on/off
Static red(4 levels B)	Static green(4 levels B)	Static blue(4 levels B)	Static sunlight(4 levels B)
Static orange(4 levels B)	Static yellow(4 levels B)	Static cyan(4 levels B)	Static purple(4 levels B)

seven base color jumpy	Three color gradually change	Seven color gradually change	Speed/Sensitivity+
Sound control I (FT)	Sound control II (MT)	Sound control III (CT)	Speed/Sensitivity-

Mark：

All static modes are adjustable, press the color button one time, the brightness changes one level in circle, 5 levels (100%, 50%, 25%, 12%and 6%);

S+/S- means speed adjust key for the dynamic functions, and means sensitivity adjust key for the music functions;

Sound control I (FT): fast track, Sound control II (MT): my track, Sound control III (CT): cool track; different button for different music and different mode.
