LED Controller&LED Dimmer-LED Controller

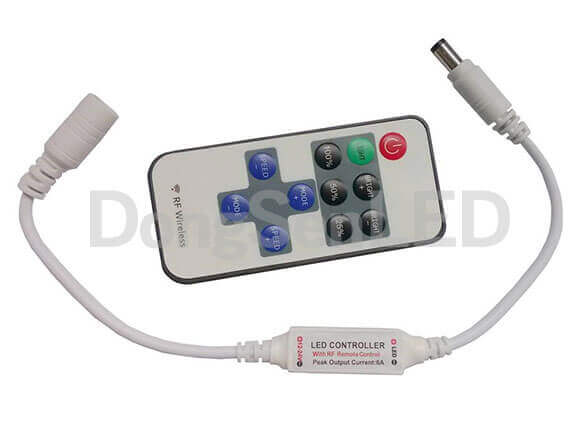

Model RF single color mini led controller DS-RFMINI-01

(P/N: DS-RFMINI-01)

Inquiry Now

Feature:

This RF Single color mini LED controller (DS-RFMINI-01)adopted the advanced computer control chip. Controlled by 433Mhz wireless remote;

It mainly used to controlled all kinds of led lights, such as: LED source, LED strips,led wall washer, wall Glass curtain lights, etc;

It integrated with low cost, easy connection, simple manipulation and others advantages. User can adjust the lights brightness according to their actual requirement;

This controller is with 8 kinds of monochrome dynamic model, including flash blasting,  breathing, getting brighter and darker , strobe, flicker and other models;

With wide range of speed level( total have 10 level of speed). At the same time, this controller have the characteristics of small volume, easy to carry, ect, its popular amount the many markets.

Technical Parameters:

Parameter Description
Working temperature -20-60℃
Supply voltage DC5V-24V
Output 1 circuit
Connecting mode common anode
External dimension L40.0×W12.0×H5mm
Packing size L85×W40×H6mm
Net weight 35g
Gross weight 40g
Static power consumption <0.5W
Output current <6A(each channel)
Output power 5V:<30W,  12V:<72W

Direction for use:

The Dynamic model is as follows

NO. Model NO. Model
1 Breathing model  5 3:1 flash
2 Half breathing model  6 Flash alternately
3 strobe  7 Blasting flash
4 1:3flash  8 Fade automatic

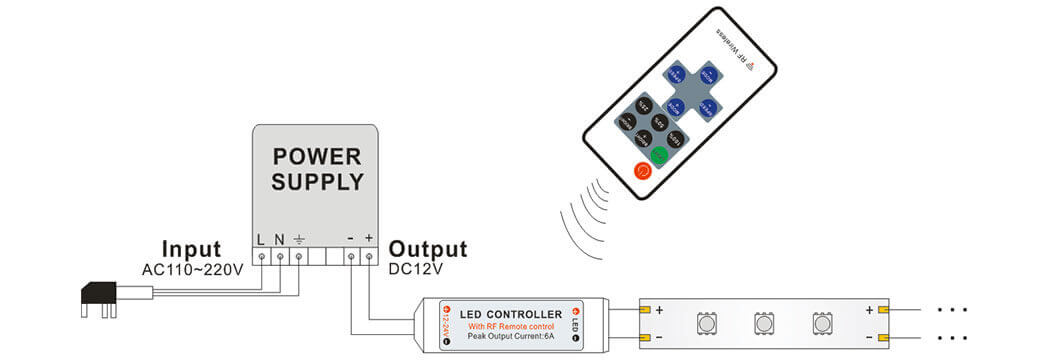

Dimension:

Dimension
