Model RF led touch controller 18A MTC-18A

(P/N: MTC-18A)

Feature:

It is constant voltage, suit for all kinds of the constant voltage LED RGB lamps;

There is a RF remote touch control 5 functions, 1 color ring and 1 color sense lamp in the center, all buttons are in the touch form, the color ring have 128 levels in different colors;

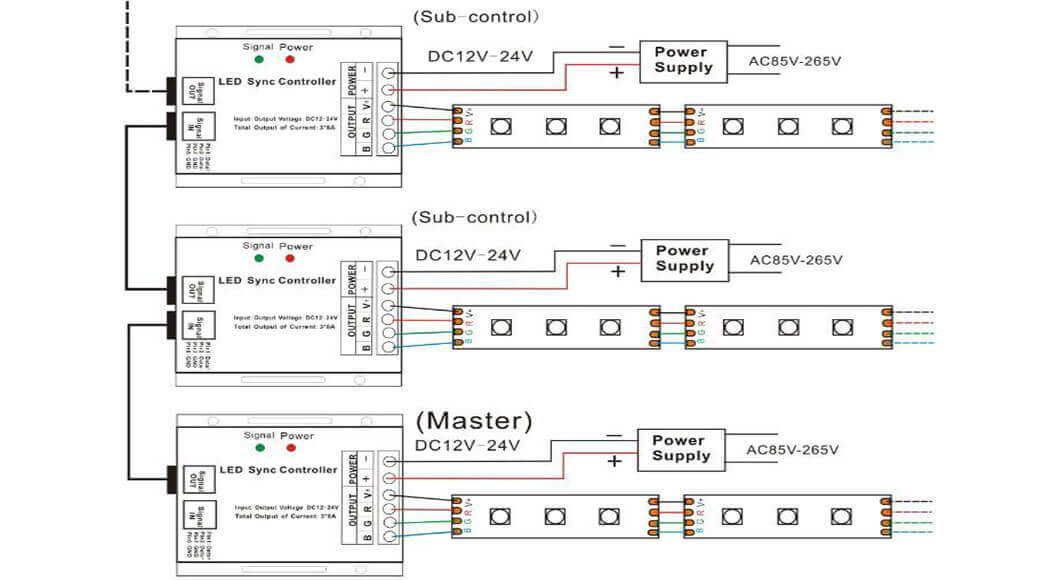

Using RJ45 connector to connect the multiple controllers together, and achieve the synchronization function of thousands meters led strips;

There are 9 modes in total, including 2 white static colors and 7 dynamic modes. The brightness of all static color and the speed of the dynamic modes are adjustable.

Technical Parameters:

Parameter	Description
Working temperature	-20-60℃
Supply voltage	DC5V,12V~24V
Output	3 channels
Connecting mode	common anode
External dimension	L127W41H32 mm
Packing size	L147W85H73 mm
Net weight	280g
Gross weight	300g
Static power consumption	256 levels （RGB each）
Output current	＜6A(each channel)
Output power	12V:＜192W,24V:＜384W
RF frequency	433.9MHz

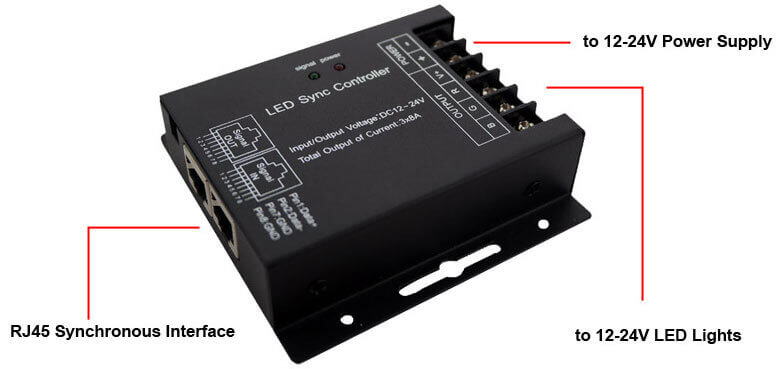

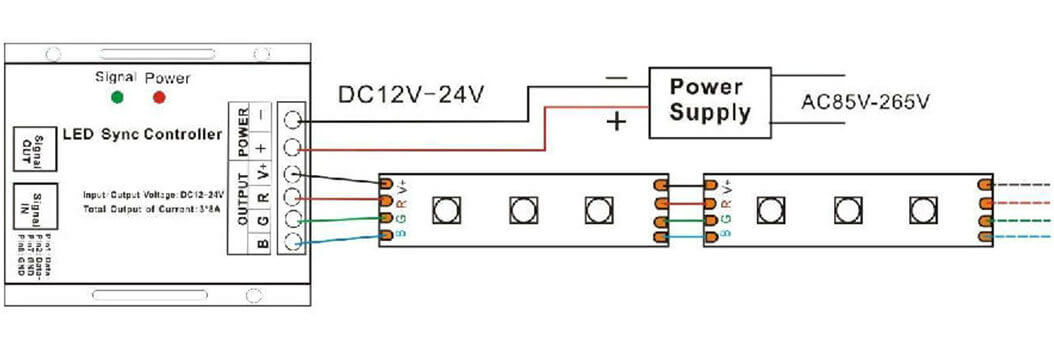

Interface Specifications

Direction for use

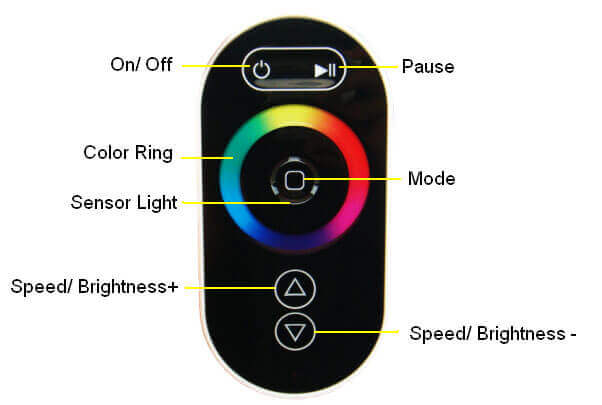

This product use RF touch control, with one color ring and 5 function buttons.

Dimension

Name of key	Instruction	Remarks
ON/OFF	ON or OFF in any time
Pause	Pause or Continue
Mode	The mode will go to next, when you touch the key each time	9 modes in total.
Speed/Brightness +	The Speed/Brightness will add, when you touch the key each time	Speed for dynamic modes, Brightness for static modes.
Speed/Brightness -	The Speed/Brightness will subtract, when you touch the key each time	Speed for dynamic modes, Brightness for static modes.
Color Ring	Touch any color which you want

9 modes in total as below:

No	Patterns	Remarks
1	Static warm white	Brightness is adjustable, speed is unadjustable
2	Static cool white	Brightness is adjustable, speed is unadjustable
3	White breath	Speed is adjustable, brightness is unadjustable
4	Seven-color jumpy changing
5	Seven-color smooth
6	Seven-color fade
7	R/B crossfade
8	B/G crossfade
9	G/R cross fade
