• LED Controller - Mini IR 24 key RGB led controller DS-IR24A-02
  • LED Controller - Mini IR 24 key RGB led controller DS-IR24A-02

LED Controller&LED Dimmer-LED Controller

Model Mini IR 24 key RGB led controller DS-IR24A-02

(P/N: DS-IR24A-02)

Inquiry Now

Feature:

This product is a constant voltage RGB controller, applicable to a variety of constant voltage RGB LED lamps;

There is a 24 keys IR remote control, you could adjust brightness, static color choices and various dynamic changes in lighting effects;

There are 20 modes in total, including 16 static and 4 dynamic changes; The brightness of static color and the speed of dynamic changes are adjustable;

Output to RGB three channel, each allow a maximum current of 2A.

Technical Parameters:

Parameter Description
Working temperature -20-60℃
Supply voltage DC5V, 12V~24V optional (specify the required voltage on orders)
Output 3 channels
Connecting mode common anode
External dimension L61*W35*H22 mm
Packing size L106*W64*H56 mm
Net weight 60g
Gross weight 85g
Static power consumption <1W
Output current <2A(each channel)
Output power 5V:<30W,  12V:<72W,  24V:<144W

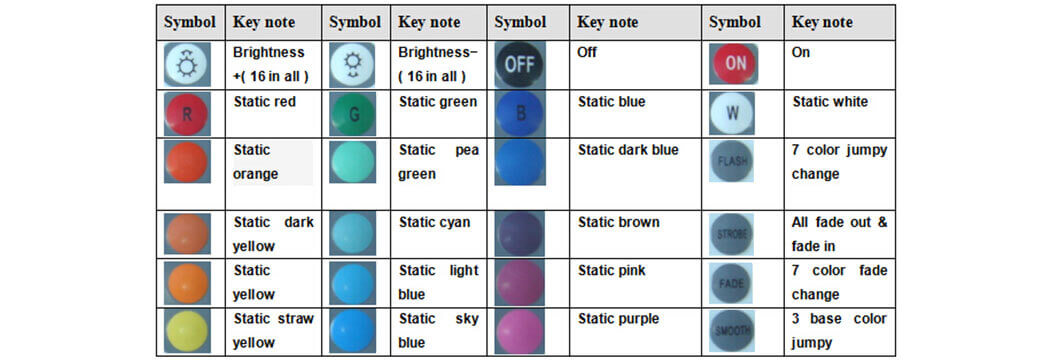

The key-press functions

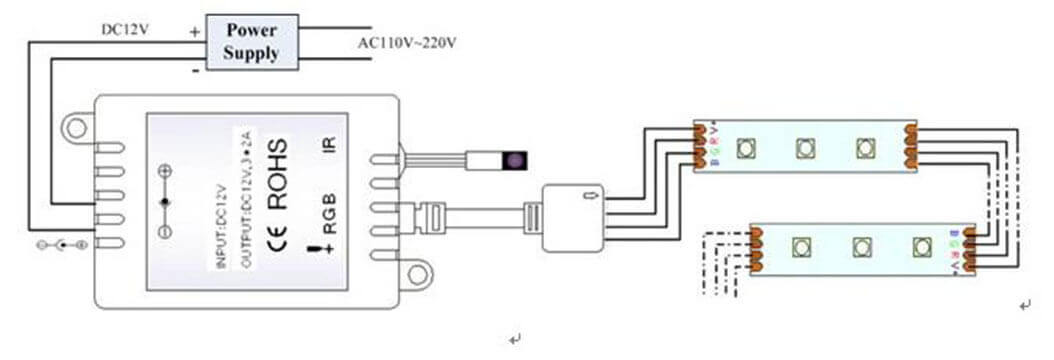

Dimension

Dimension(mm):

Dimension
