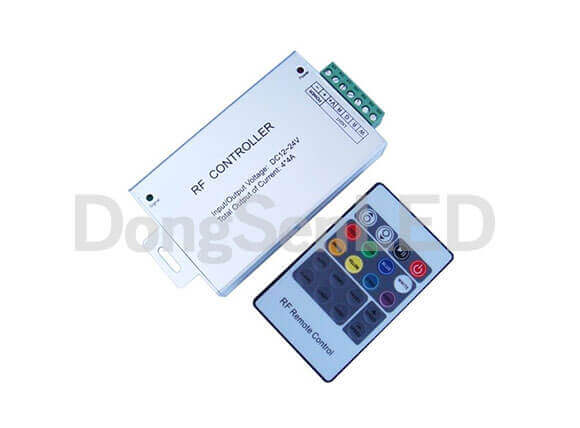

Model RGBW remote led controller 4 channel 4*4A DS-RFL20A-4CH

(P/N: DS-RFL20A-4CH)

Feature:

RGBW LED Controller 4channel 16A (DS-RFL20A-4CH )adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED;

For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use;

Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control;

And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Technical Parameters:

Parameter	Description
Working temperature	-20-60℃
Supply voltage	DC5V, 12V~24V optional (specify the required voltage on orders)
Output	4 channels
Connecting mode	common anode/cathode optional (specify the required voltage on orders)
External dimension	L130W64H24 mm
Packing size	L137W80H54mm
Net weight	180g
Gross weight	210g
Static power consumption	＜1W
Output current	＜4A(each channel)
Output power	5V:＜80W, 12V:＜192W, 24V:＜384W

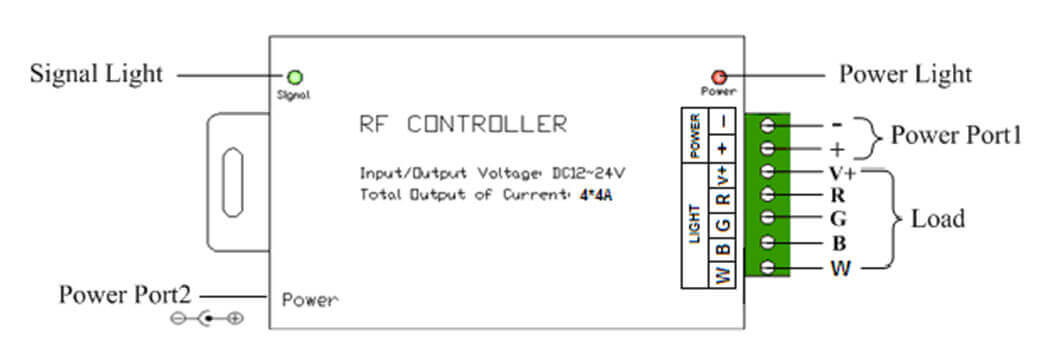

Interface Specifications:

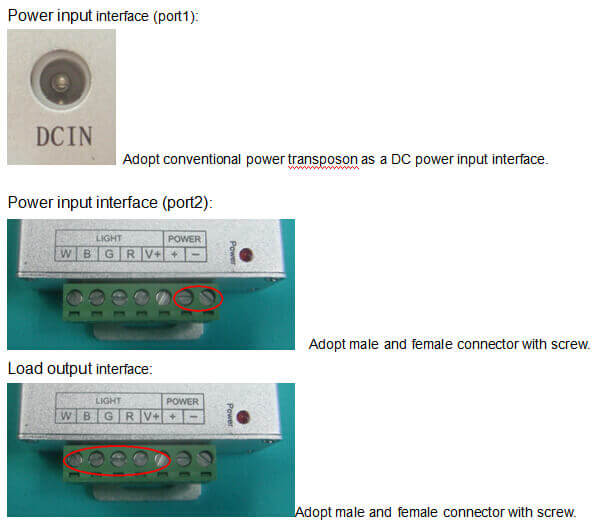

Interface Specifications

Direction for use

Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

Adopt wireless control method, 20 keys in total, function of each button as below:

Each press, the green light flash one time, indicating that has entered the next state.

Standard color changes as follows:

Static white: the function of this key designed for the "W" channel.

Brightness +	Brightness -	pause	on/off
Static red	Static green	Static blue	Static white
Static orange	Static yellow	Static cyan	Static purple
Auto run	three base color jumpy	Three color gradually change	speed +
Flash	seven base color jumpy	Seven color gradually change	speed-

In all static modes, the white channel can be ON/OFF independent. If both white and another color are lighting, press the color key firstly before adjusting the brightness. Every color can be adjusted from 0%-100%.
